DWDM MUX AND DEMUX (Red 21-32) & (Blue 42-45/49-56)1U RACK WITH 1 LGX BOX 12CH BIDI SINGLE FIBER (SIDE B)

0.0

0 ratings

-4% Rs 75,557 .80

M.R.P.: ~~Rs 78,408.00~~

Exclusive of all taxes

Technical Details

Delivery Time (if import required)	126-TRIAL-CH-NP 15-20Days 178
Warranty	1 Year
Weight	1.180 Kg
Country of Origin	China

Download Datasheet Save

SKU: #1489 Category: OFC Passive Devices

Rs 75,556.80 -4%

M.R.P. ~~Rs 78,408.00~~

Excl. taxes

Min. Order	Unit Price
1 Piece	Rs 75,556.80

Trade Assurance Built-in order protection

In Stock

FREE Delivery on eligible orders

Deliver to

Select a city to check delivery

Supplier Info

D-TECH

Verified Supplier

4.8 / 5.0 Response Rate

7-Day Returns
if defective or damaged

Warranty
Seller warranty (if applicable)

Secure Payment
Multiple options available

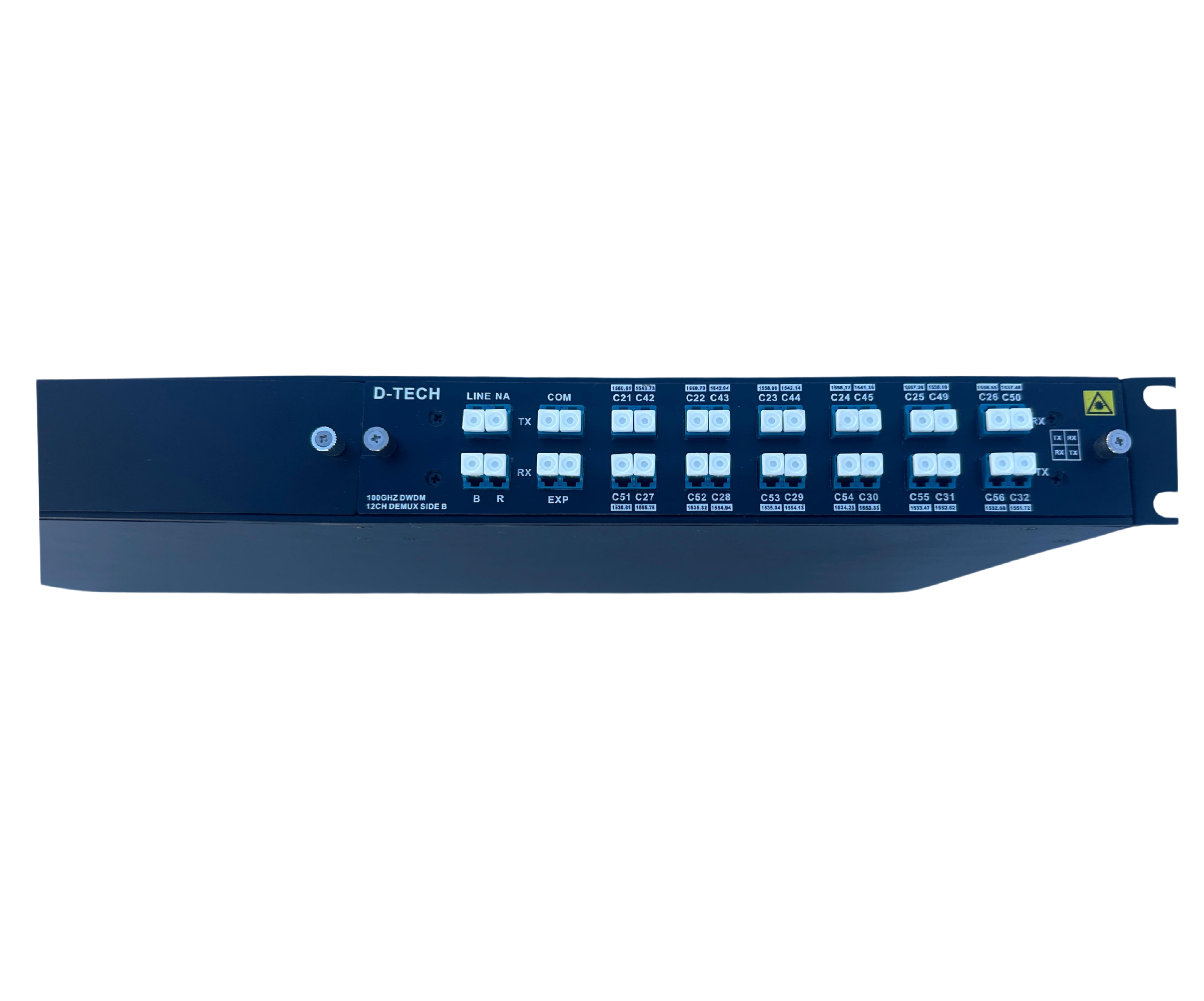

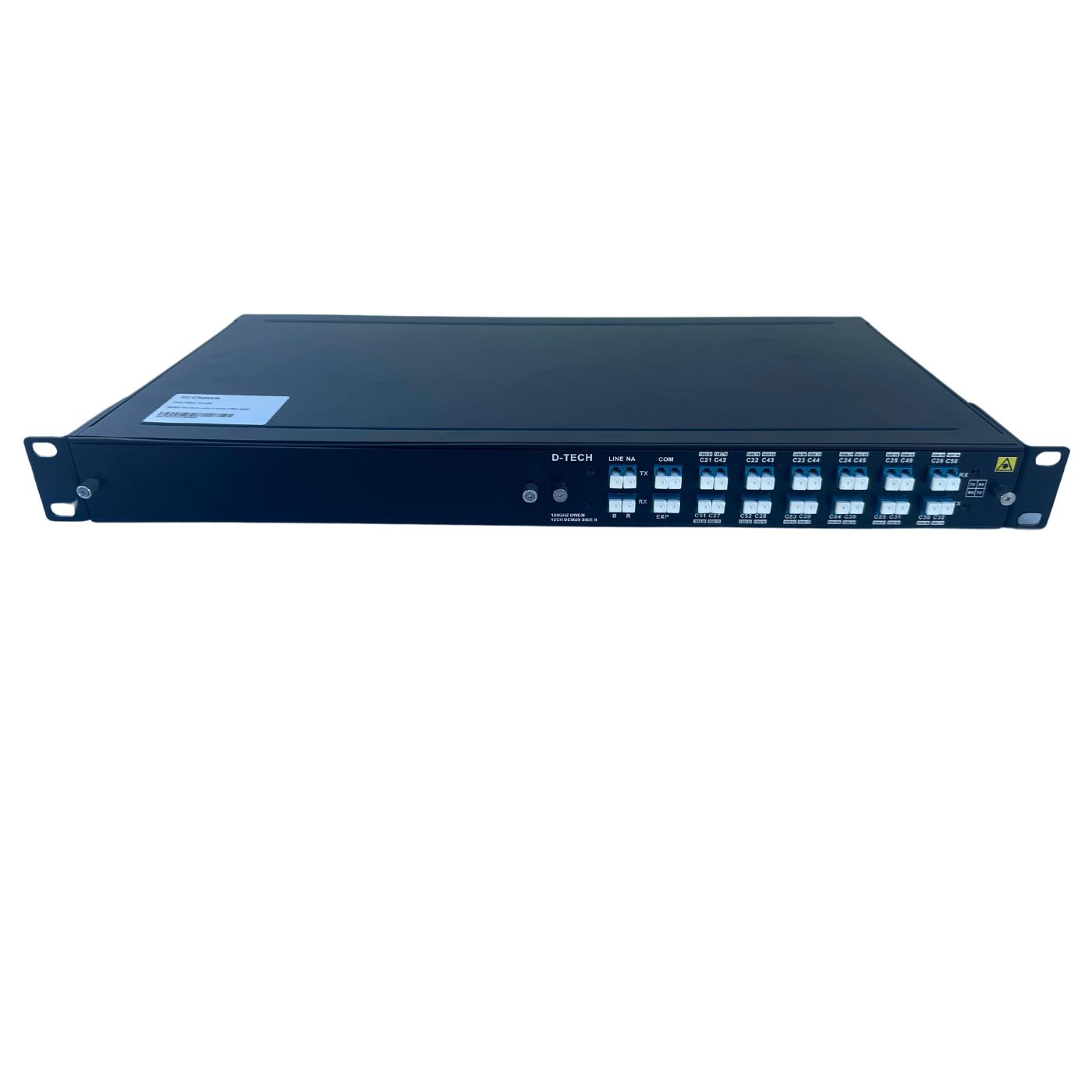

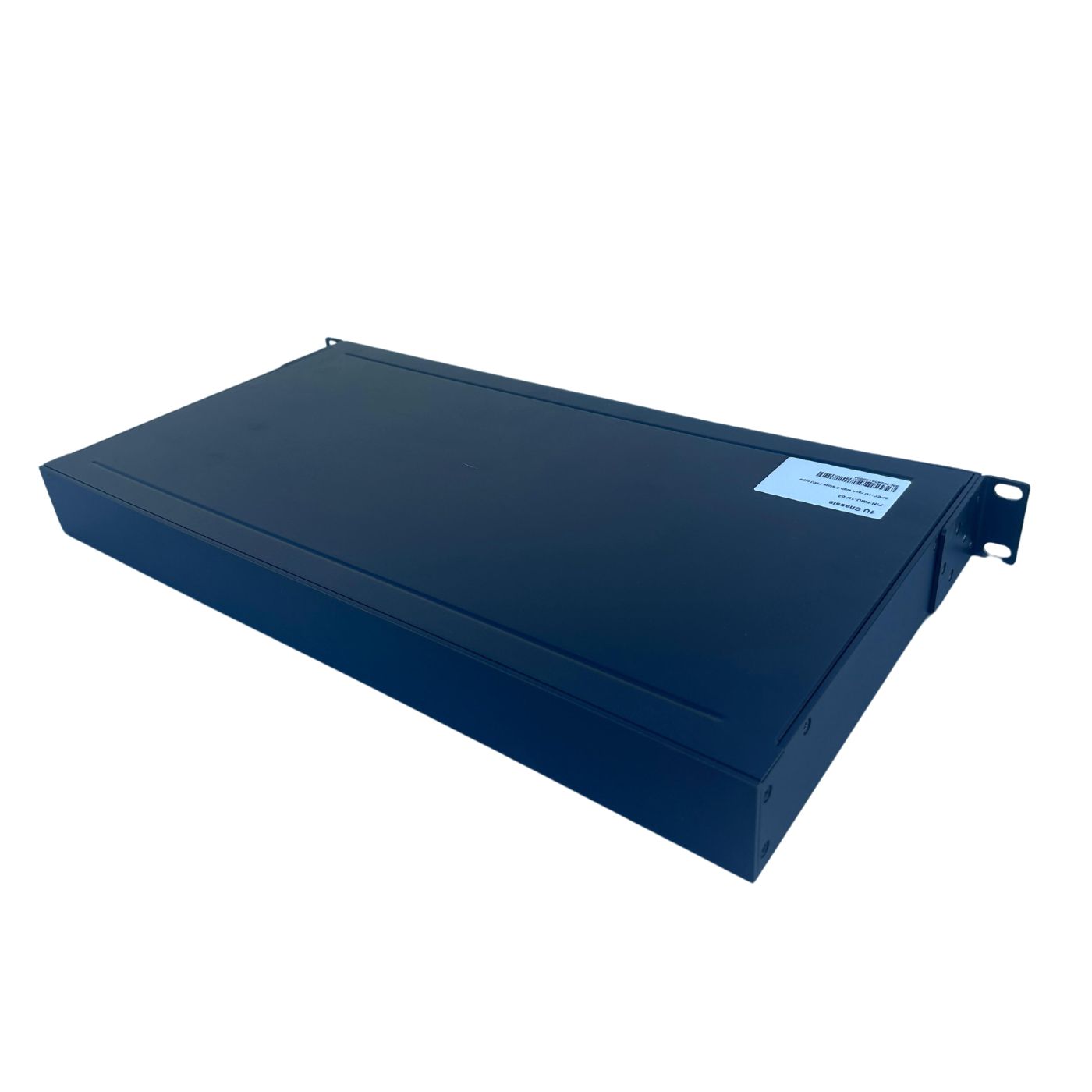

DWDM MUX & DEMUX 1U Rack with 1 LGX Box – 12CH BIDI Single Fiber (Side B)

DWDM MUX and DEMUX solution designed for single-fiber bidirectional transmission in 1U rack-mount format. Suitable for high-density wavelength multiplexing applications in telecom, ISP, and data transmission networks.

Technical Specifications

Category	Specification
Product Type	DWDM MUX & DEMUX, 1U Rack with 1 LGX Box, 12CH BIDI Single Fiber (Side B)
Wavelength Channels	Red: C21–C32 Blue: C42–C45, C49–C56
Channel Spacing	100 GHz (0.8 nm)
Channel Passband	±0.11 nm
Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 3.8 dB
Center Wavelength Accuracy	±0.05 nm
Return Loss	≥ 45 dB
Directivity	≥ 45 dB
Polarization Mode Dispersion	≤ 0.1 ps
Polarization Dependent Loss	≤ 0.3 dB
Channel Isolation	Adjacent: ≥ 30 dB Non-adjacent: ≥ 45 dB
Temperature	Operating: -20°C to +70°C Storage: -40°C to +85°C
Net Weight	3.5 kg
Dimensions (H × W × D)	44 × 440 × 230 mm
