4 Channel DWDM Fiber Mux / Demux (Cassette Type)
Product Overview
Compact 4 Channel DWDM MUX/DEMUX designed to combine and separate multiple wavelengths over a single fiber. This variant uses reverse channel mapping, ideal for bidirectional transmission setups in ISP, metro, and data center networks.
Key Specifications
Parameter
Specification
Device Type
Passive DWDM MUX / DEMUX
Channel Count
4 Channel
Form Factor
Cassette Type (Rack Mount Compatible)
Wavelength (RX)
C53 – C56
Wavelength (TX)
C25 – C28
Channel Spacing
100 GHz (ITU-T Grid)
Connector Type
LC / UPC
Fiber Type
Single Mode (SMF - G.652D / OS2)
Insertion Loss
≤ 2.5 dB (Typical)
Isolation
≥ 30 dB
Return Loss
≥ 45 dB
Directivity
≥ 50 dB
Operating Temp
-5°C to +70°C
Storage Temp
-40°C to +85°C
Packaging
ABS Cassette Module

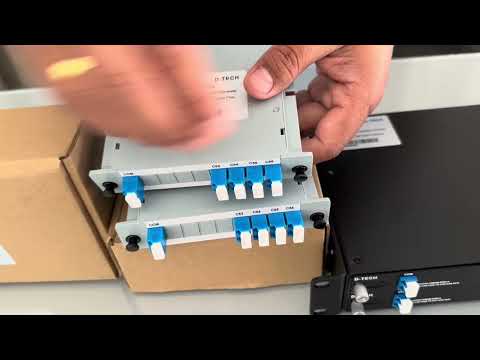

Watch demos, overviews and installation guides related to this product.
