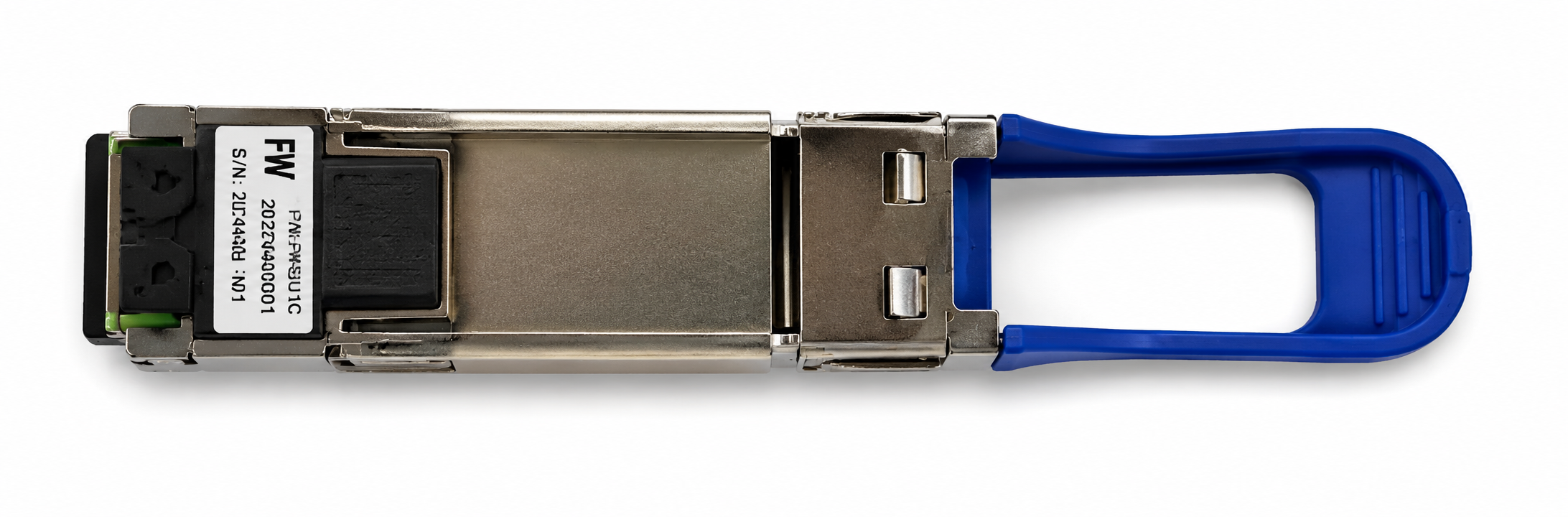

QSFP to SFP+ Converter (CVR) Module
Visit the D-TECH Store
-1%
Rs
8,538
.05
M.R.P.: Rs 8,601.77
Exclusive of all taxes
Rs 8,538.05
-1%
M.R.P. Rs 8,601.77
Excl. taxes
| Min. Order | Unit Price |
|---|---|
| 1 Pc(1) | Rs 8,538.05 |
Trade Assurance
Built-in order protection
In Stock
FREE Delivery on eligible orders
Select a city to check delivery
Supplier Info
D-TECH
Verified Supplier
4.8 / 5.0 Response Rate
7-Day Returns
if defective or damaged
if defective or damaged
Warranty
Seller warranty (if applicable)
Seller warranty (if applicable)
Secure Payment
Multiple options available
Multiple options available
QSFP to SFP / SFP+ Converter (CVR) Module – QSFP+ to SFP+ Adapter
The QSFP to SFP / SFP+ Converter (CVR) Module is designed to convert a QSFP+ port into an SFP+ port, allowing flexible connectivity between 40G QSFP+ network equipment and lower-speed 10G SFP+ optical modules or DAC/AOC cables.
This adapter provides a cost-effective and flexible migration path for data centers, enterprise networks, telecom systems, cloud infrastructure, and storage networks by enabling the use of standard SFP+ modules in QSFP+ switch ports.
Key Features
| Converts QSFP+ port to SFP+ port |
| Supports 10Gbps Ethernet transmission |
| Supports 2.5Gbps and 5Gbps data rates |
| Compatible with QSFP+ MSA and SFP+ MSA standards |
| Supports SFP+ optical modules and DAC/AOC cables |
| All-metal housing for superior EMI protection |
| Low insertion loss and low crosstalk design |
| Secure latching mechanism |
| Hot-pluggable operation |
| RoHS compliant |
Applications
| Data Center Networking |
| Enterprise Backbone Networks |
| Cloud Computing Infrastructure |
| Networked Storage Systems |
| Routers and Switches |
| InfiniBand Networks |
| 10G Migration from 40G QSFP Platforms |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | QSFP+ to SFP+ Converter (CVR) Module |
| Part Number | YV-CVR-QSFP-SFP+ |
| Form Factor | QSFP+ to SFP+ |
| Supported Data Rates | 10Gbps / 5Gbps / 2.5Gbps |
| Channel Support | 1 Independent Duplex Channel |
| Electrical Interface | 100 Ohm Differential Impedance |
| Power Supply | 3.3V |
| Operating Temperature | -20°C to +85°C |
| Storage Temperature | -40°C to +125°C |
| Humidity | Up to 85% Non-condensing |
| Standards Compliance | QSFP+ MSA SFF-8436 / SFP+ MSA SFF-8431 |
| Dimensions | 13.5 × 18.4 × 78 mm |
| Weight | Typically < 100g |
| Compliance | RoHS Compliant |
Supported SFP / SFP+ Modules
| Item | Product | Description |
|---|---|---|
| 1 | SFP-10G-SR | 10G Multimode Fiber Module |
| 2 | SFP-10G-LR | 10G Singlemode Fiber Module |
| 3 | SFP-10G-ER | 10G Long Distance Module |
| 4 | SFP-10G-ZR | DWDM 10G SFP+ Module |
| 5 | 10G DAC Cable | SFP+ Copper Cable |
| 6 | 10G AOC Cable | SFP+ Active Optical Cable |
Note: This QSFP to SFP+ converter allows flexible deployment of 10G SFP+ optics in 40G QSFP+ switch ports for smooth and cost-effective network migration.
