Product Overview:

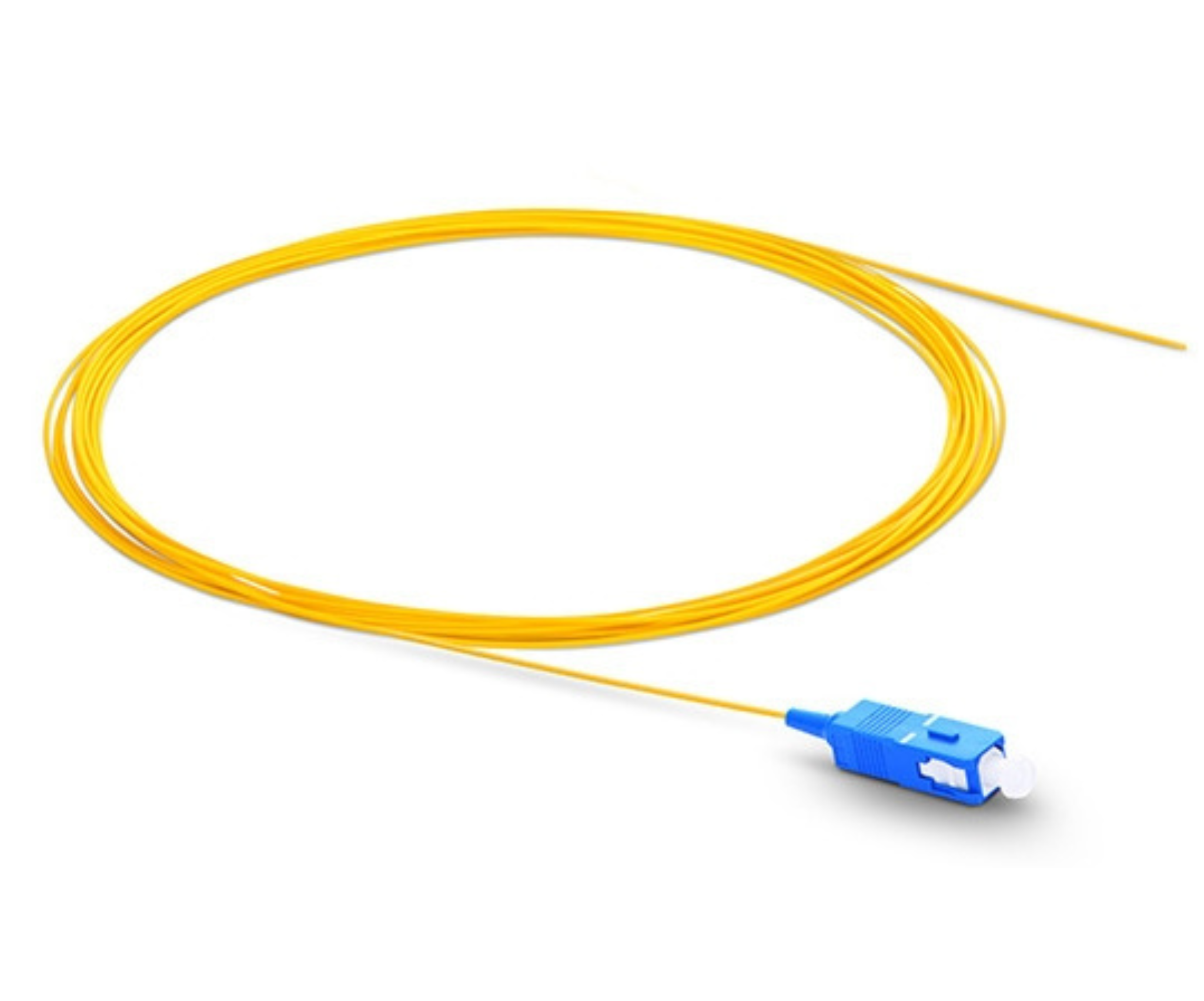

A pigtail is a short length of fiber optic cable terminated with a connector at one end. In this case, it is terminated with an SC connector on one end and is unterminated (bare fiber) on the other end. Fiber-optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Specifications:
| Parameter | Value |
|---|---|
| Connector A | SC |
| Connector B | Unterminated |
| Fiber Mode | 9/125 μm |
| Fiber Count | 12 |
| Fiber Grade | G.657.A1 |
| Minimum Bend Radius | 10mm |
| Polish Type | UPC |
| Cable Diameter | 0.9 mm |
| Cable Jacket | PVC |
| Jacket Color | Yellow |
| Wavelength | 1310 nm/1550 nm |
| Durability | 500 Times |
| Insertion Loss | ≤0.3 dB |
| Interchangeability | ≤0.2 dB |
| Return Loss | ≥50 dB |
| Vibration | ≤0.2 dB |
| Operating Temperature | -40~75°C |
| Storage Temperature | -45~85°C |
