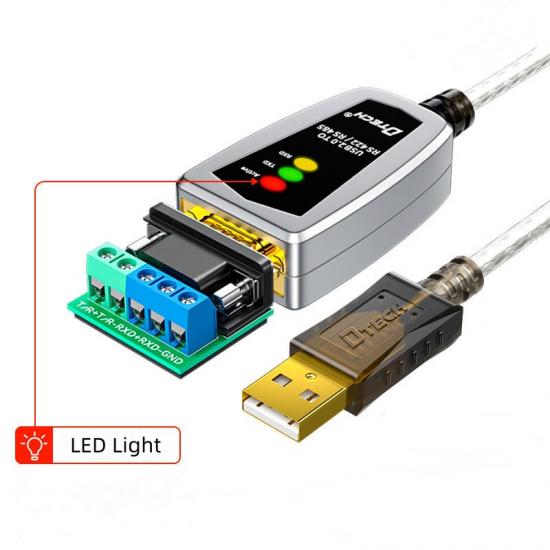

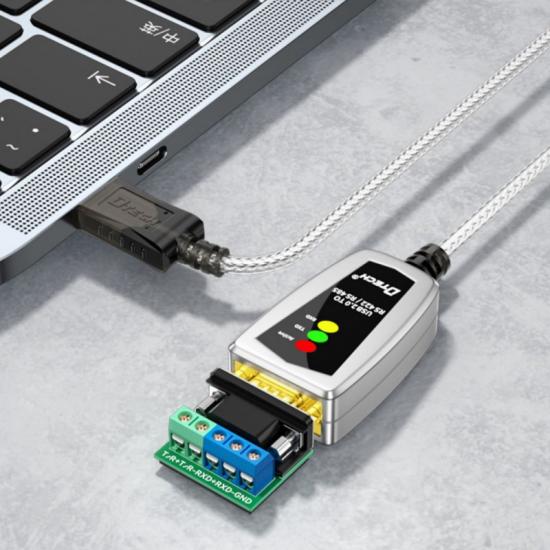

D-TECH DT-5019 USB 2.0 to RS422 / RS485 DB9 Serial Converter Cable
The D-TECH DT-5019 USB to RS422/RS485 Converter Cable is a professional industrial communication solution designed for PLC controllers, industrial automation systems, access control systems, parking systems, attendance systems, industrial computers, and serial communication applications.
This converter cable supports both RS422 and RS485 serial communication standards, providing stable long-distance data transmission with high compatibility across Windows, Linux, and macOS systems.
Key Features
| USB 2.0 to RS422 / RS485 serial converter cable |
| Supports industrial RS-485 and RS-422 communication |
| Built with original FTDI FT232RL chipset |
| Stable and high-speed serial communication |
| Automatic serial port signal speed detection |
| Long-distance communication support up to 1200 meters |
| DB9 serial interface connection |
| LED indicators for power, TX, and RX status |
| USB powered design without external adapter |
| Compatible with Windows, Linux, and macOS |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | USB 2.0 to RS422 / RS485 Converter Cable |
| Brand | D-TECH |
| Model | DT-5019 |
| USB Interface | USB 2.0 Type-A Male |
| Serial Interface | DB9 RS422 / RS485 |
| Compatibility Standards | EIA/TIA RS-485 and RS-422 |
| Main Chipset | FTDI FT232RL + SP485 Dual Chip |
| Communication Speed | 300bps ~ 460800bps |
| Communication Distance | USB: 0~5m / RS422-485: 0~1200m |
| Power Supply | USB Powered |
| Signal Indicators | Power (Red), TX (Green), RX (Yellow) |
| RS-485 Signals | T/R+, T/R-, GND |
| RS-422 Signals | TX+, TX-, RX+, RX-, GND |
| DB9 Pin Signals | T/R+, T/R-, RXD+, RXD-, GND |
| Warranty | 1 Year |
Supported Operating Systems
| Windows 10 / 8 / 8.1 / 7 |
| Windows Server 2008 |
| Windows XP / Vista |
| Linux |
| macOS (OS-X) |
Applications
| Industrial Automation Control Systems |
| PLC Controllers |
| Industrial Computers |
| Access Control Systems |
| Parking Management Systems |
| Attendance Machines |
| Power Monitoring & Control Systems |
| Serial Communication Devices |
Note: Proper RS422/RS485 wiring and grounding are recommended for stable long-distance industrial communication performance.
