ADSS Optical Fiber Cable – 400 Span
Fiber Specifications
| Parameter | Specification |
|---|---|
| Material | Quartz Glass (Silicon Dioxide) |
| Core | 9 μm (High Refractive Index) |
| Cladding | 125 μm (Low Refractive Index) |
| Coating | 245 μm (Protective Resin) |
Optical Parameters
| Parameter | Requirement | Standard |
|---|---|---|
| Core Non-Circularity | ≤ 6% | ITU-T G.652 |
| Cladding Diameter | 125.0 ± 0.7 μm | - |
| Core / Cladding Concentricity | ≤ 0.6 μm | - |
| Cladding Non-Circularity | ≤ 1.0% | - |
| Coating Diameter | 245 ± 10 μm | - |
| Cladding / Coating Concentricity | ≤ 12 μm | - |
| Attenuation Coefficient | 1310 nm: ≤ 0.35 dB/km 1550 nm: ≤ 0.21 dB/km |
- |
| Zero Dispersion Slope | ≤ 0.092 ps/(nm²·km) | - |
| Zero Dispersion Wavelength | 1300 – 1324 nm | - |
| Polarization Dispersion | ≤ 0.20 ps/√km | - |
| Mode Field Diameter (1310 nm) | 9.0 ± 0.4 μm | - |
| Cut-off Wavelength | 1170 – 1330 nm | - |
| Chromatic Dispersion | 1288 – 1339 nm: ≤ 3.4 ps/(nm·km) 1550 nm: ≤ 18 ps/(nm·km) 1625 nm: ≤ 22 ps/(nm·km) |
- |
Cable Parameters
| Parameter | Value |
|---|---|
| Fibers per Loose Tube | 6 |
| Number of Tubes | 2 |
| Inner Sheath Thickness | 1.0 mm |
| Outer Sheath Thickness | 1.7 mm |
| Aramid Area | 2.8 mm² |
| Cable Diameter | 13 mm (±5%) |
| Cable Cross-Section | 106 mm² |
| Cable Weight | 105 kg/km (±10%) |
Mechanical & Environmental Performance
| Parameter | Value |
|---|---|
| RTS (Rated Tensile Strength) | 4800 N |
| MAT (Maximum Allowable Tension) | 1900 N |
| Static Bending Radius | ≥ 174 mm |
| Dynamic Bending Radius | ≥ 290 mm |
| Operating Temperature | -40°C to +70°C |
| Installation Temperature | -10°C to +40°C |
Test Requirements
| Test Type | Standard | Key Criteria |
|---|---|---|
| Tensile Test | IEC 60794-1-21-E1 | RTS: No break at 100% RTS. UOS (60% RTS): Fiber strain < 0.35%, no added attenuation. MAT (40% RTS): Strain < 0.05%. |
| Crush Test | IEC 60794-1-21-E3 | ≤ 0.1 dB attenuation at 1550 nm under 2200 N; no residual attenuation. |
| Impact Test | IEC 60794-1-21-E4 | 450 g weight, 1 m height, 5 impacts. No sheath cracks or residual attenuation. |
| Repeated Bending | IEC 60794-1-21-E6 | 30 bends under 150 N load. No cracks or residual attenuation. |
| Torsion Test | IEC 60794-1-21-E7 | ±180° twist, 10 cycles. No added attenuation or sheath damage. |
| Temperature Cycling | IEC 60794-1-22-F1 | -40°C to +65°C, 2 cycles. Attenuation < 0.05 dB/km at 1550 nm. |
| Water Penetration | IEC 60794-1-22-F7 | 1 m head for 1 hour. No leakage. |
Ask a question
Questions & answers
0 question(s)No questions yet. Be the first to ask!
0.0
5★
0
4★
0
3★
0
2★
0
1★
0
Write a review
Sign in to reviewCustomer reviews
No reviews yet. Be the first to review this product.

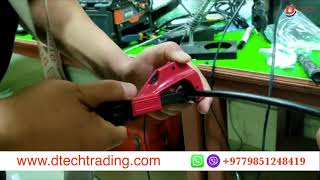

Worldlink ADSS fiber 12 core cutting by round cutter / Horizontal cutter in Nepal
