Overview

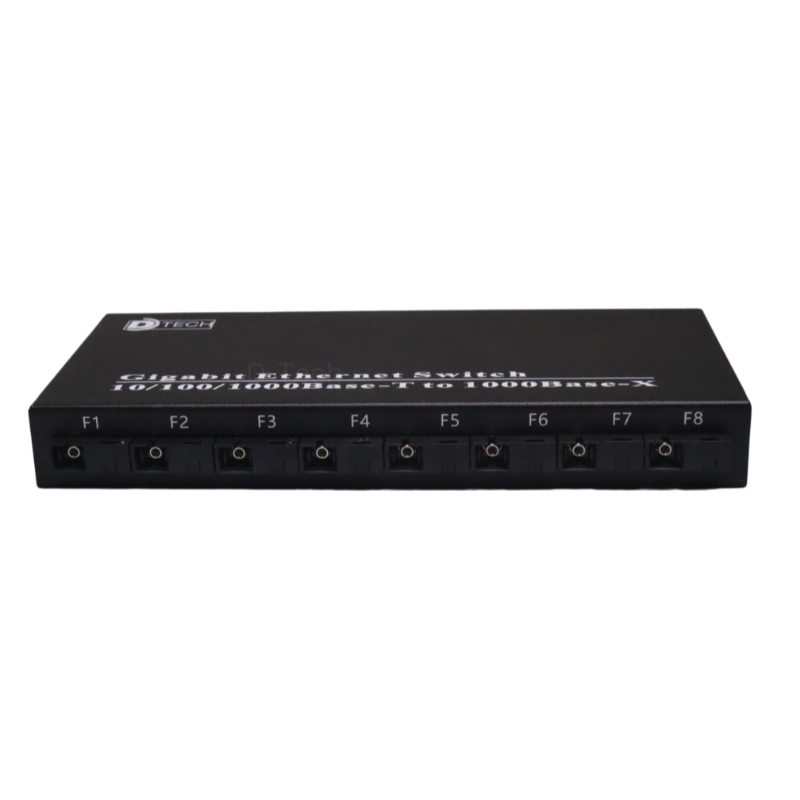

The 10/100/1000M 8SC 2 RJ45 Fiber Switch Converter with external power supply are designed to transmit and receive 1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.

Technical Parameter

Data Interface: Ethernet

Data Rate: 10/100/1000M Mbps

IEEE802.3Compliant

Full Duplex or Half Duplex Electrical

Electrical & Mechanical:

1. Operating Voltage: AC100V~260V
2. Power Dissipation: ≤5W

Connectors:

1. Optical: 8SC
2. Power: Terminal Block
3. Electrical:2 RJ45

Led Indicators:

1. Optical Link/Data Activity
2. Electrical Link/Data Activity

Environmental Conditions:

1. Operating Temp: 0˚C to +70˚C
2. Storage Temp: -20˚C to +80˚C
3. Relative Humidity: 0% ~ 90% (non-condensing)
4. MTBF: >100,000 hours

Applications

Access Control Systems

Building and Environmental Control Systems

Tamper Switch

10/100/1000 Mbps Ethernet Media Converter

High Speed Computer Links

specification

1.Speed:10/100/1000 Mbps

2.Mode type:Single-mode

3.Fiber type: 8SC

4.Connector:SC

5. Support: WDM

6. Optical wavelength: 1310nm  and 1550nm

7.RJ 45 port:2 RJ45 port

8. Shell material: black  metal

9. with power adapter and packing
