Optical Fiber drop cable Round - GJYXFH-1 Core 5.00mm APC to UPC
Visit the D-TECH Store
Contact for
Quote
.png)
Contact for Price
Pricing based on order quantity
Trade Assurance
Built-in order protection
In Stock
FREE Delivery on eligible orders
Select a city to check delivery
Supplier Info
D-TECH
Verified Supplier
4.8 / 5.0 Response Rate
7-Day Returns
if defective or damaged
if defective or damaged
Warranty
Seller warranty (if applicable)
Seller warranty (if applicable)
Secure Payment
Multiple options available
Multiple options available
Optical Fiber Cable Specification

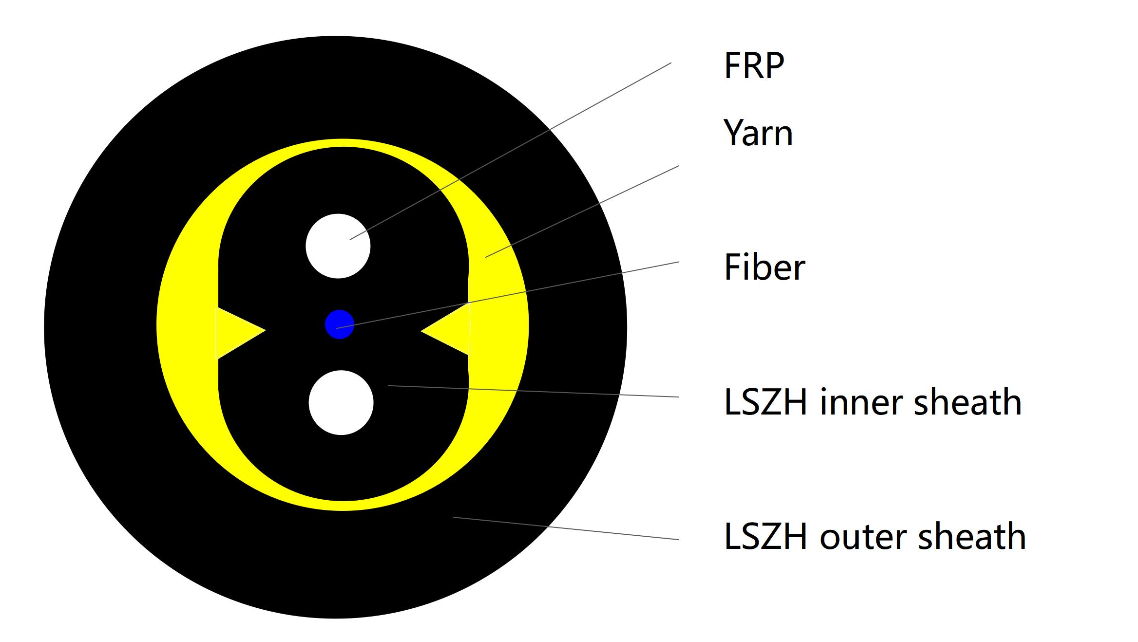

Cable Technical Data
| Item | Specification |
|---|---|
| No. of Fiber | 1 |
| Fiber Model | G.657A1 |
| Inner Sheath Material | LSZH |
| Inner Sheath Diameter | 2.0 × 3.0 mm (±0.03) |
| Strength Member 1 | FRP, 0.5 mm (±0.03) |
| Strength Member 2 | 2 × Yarn, 5 × 1500D |
| Outer Sheath Material | LSZH |
| Outer Sheath Color | Black |
| Cable Diameter | 5.0 mm (±0.2) |
| Attenuation @ 1310 nm | 0.40 dB/km |
| Attenuation @ 1550 nm | 0.30 dB/km |
| Allowable Tensile Strength | Short Term: 600 N / Long Term: 300 N |
| Allowable Crush Resistance | Short Term: 2200 N/100 mm / Long Term: 1000 N/100 mm |
| Temperature Range | Installation: -20°C to +60°C |
Sheath Marking
| Item | Details |
|---|---|
| Marking Color | White |
| Printing Interval | Every 1 meter |
| Sample Marking | KXOFC 2026 GJYXFH XXB1.3 (G.657A1) XXXXm |
| Note | Occasional unclear length marking is permitted if neighboring markings are clear. |
Fiber Properties (ITU-T G.657A1)
| Item | Specification |
|---|---|
| Fiber Type | Single Mode |
| Fiber Material | Doped Silica |
| Attenuation Coefficient |
@1310 nm: ≤ 0.35 dB/km @1550 nm: ≤ 0.21 dB/km @1285–1330 nm: ≤ 0.38 dB/km @1625 nm: ≤ 0.22 dB/km |
| Point Discontinuity | ≤ 0.05 dB |
| Cable Cut-off Wavelength | ≤ 1260 nm |
| Zero Dispersion Wavelength | 1300 ~ 1324 nm |
| Zero Dispersion Slope | ≤ 0.092 ps/(nm²·km) |
| Chromatic Dispersion |
@1285 ~ 1339 nm: ≤ 3.4 ps/(nm·km) @1271 ~ 1360 nm: ≤ 5.3 ps/(nm·km) @1550 nm: ≤ 18 ps/(nm·km) |
| PMDQ (Quadrature Average) | ≤ 0.2 ps/km1/2 |
| Mode Field Diameter @1310nm | 9.2 ± 0.4 µm |
| Core / Clad Concentricity Error | ≤ 0.5 µm |
| Cladding Diameter | 125.0 ± 0.7 µm |
| Cladding Non-Circularity | ≤ 1.0% |
| Primary Coating Diameter | 242 ± 5 µm |
| Proof Test Level | 100 kpsi (=0.69 GPa), 1% |
| Temperature Dependence | 0.1 dB/km @ 0°C ~ +70°C, 1310 & 1550 nm |
* PMDQ is a link of 20 cable sections (M) and a probability level of 0.01% (Q).
Mechanical & Environmental Characteristics
| Parameter | Value |
|---|---|
| Cable Bending Radius | 20 × cable diameter (operation), 40 × cable diameter (installation) |
| Operating Temperature Range | -40°C to +60°C |
| Storage / Transport Temperature Range | -50°C to +70°C |
| Installation Temperature Range | -20°C to +50°C |
| Transport & Storage | -40°C to +60°C |
| Operation | -40°C to +60°C |
Patch Cord Specification
| Item | Specification |
|---|---|
| Insertion Loss | ≤ 0.3 dB |
| Return Loss (SC/APC) | ≥ 55 dB |
| Return Loss (SC/UPC) | ≥ 60 dB |
| Each Roll Length | 5 m ~ 500 m / roll (depending on customer requirements) |
