-4%

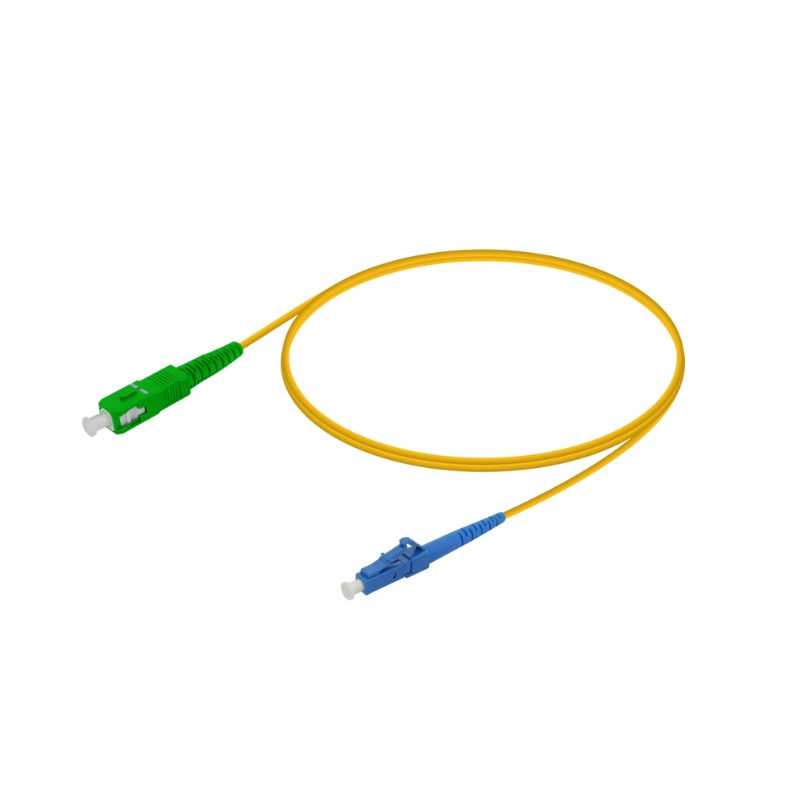

Fiber Optic Patch Cord Simplex LC UPC to SC APC

Name: Fiber Optic Patch Cord Simplex LC UPC to SC APC
Brand: D-TECH
SKU: PR-001850
Price: 125.00 NPR
Availability: InStock

Visit the D-TECH Store

0.0

0 ratings

-4% Rs 125 .00

M.R.P.: ~~Rs 130.00~~

Exclusive of all taxes

Variation: 5M 3.00mm

5M 3.00mm

1M 3.00mm

2M 3.00mm

3M 3.00mm

Download Datasheet Save

SKU: #1850 Category: Optical Fiber Cable and Accessories

Rs 125.00 -4%

M.R.P. ~~Rs 130.00~~

Excl. taxes

Min. Order	Unit Price
1 Pc(1)	Rs 125.00

Trade Assurance Built-in order protection

In Stock

FREE Delivery on eligible orders

Deliver to

Select a city to check delivery

Supplier Info

D-TECH

Verified Supplier

4.8 / 5.0 Response Rate

7-Day Returns
if defective or damaged

Warranty
Seller warranty (if applicable)

Secure Payment
Multiple options available

SINGLE-MODE • SIMPLEX PATCH CORD

Fiber Optic Patch Cord – LC/UPC to SC/APC

G.652D Single-Mode • Simplex • Low Insertion Loss • 1310nm / 1550nm

The LC/UPC to SC/APC Simplex Fiber Optic Patch Cord is designed for reliable single-mode optical connections in FTTH, FTTx, telecom and data communication networks. It combines a compact LC/UPC connector with an SC/APC connector and uses G.652D single-mode fiber for stable transmission at 1310nm and 1550nm.

CONNECTOR A

LC/UPC

CONNECTOR B

SC/APC

FIBER TYPE

G.652D

MODE

Simplex

Connector Configuration

CONNECTOR A

LC/UPC

UPC Polish • Blue Connector

CONNECTOR B

SC/APC

APC Polish • Green Connector

Key Features

✓ High-precision LC/UPC to SC/APC connectors

✓ Low insertion loss and excellent return loss

✓ Single-mode G.652D optical fiber

✓ 2.0mm or 3.0mm cable diameter

✓ LSZH or PVC jacket options

✓ Multiple lengths and custom lengths available

Technical Specifications

Parameter	Specification
Connector Type	LC/UPC to SC/APC
Fiber Type	Single-Mode G.652D
Mode	Simplex
Jacket Material	LSZH / PVC
Cable Diameter	2.0 mm / 3.0 mm
Insertion Loss	≤ 0.30 dB (Typical)
Return Loss – UPC	≥ 50 dB
Return Loss – APC	≥ 60 dB
Operating Wavelength	1310 nm / 1550 nm
Length Options	1m – 30m / Custom Length Available
Cable Color	Yellow
Temperature Range	−40°C to +85°C

Optical Performance

INSERTION LOSS

≤ 0.30 dB

UPC RETURN LOSS

≥ 50 dB

APC RETURN LOSS

≥ 60 dB

WAVELENGTH

1310 / 1550nm

Applications

FTTH Networks FTTx Networks OLT Connectivity ONU Connectivity Routers Media Converters Telecom Networks Fiber Distribution

Connector Note

This patch cord uses LC/UPC on one end and SC/APC on the other end. Confirm the connector type of your equipment or adapter before installation.
