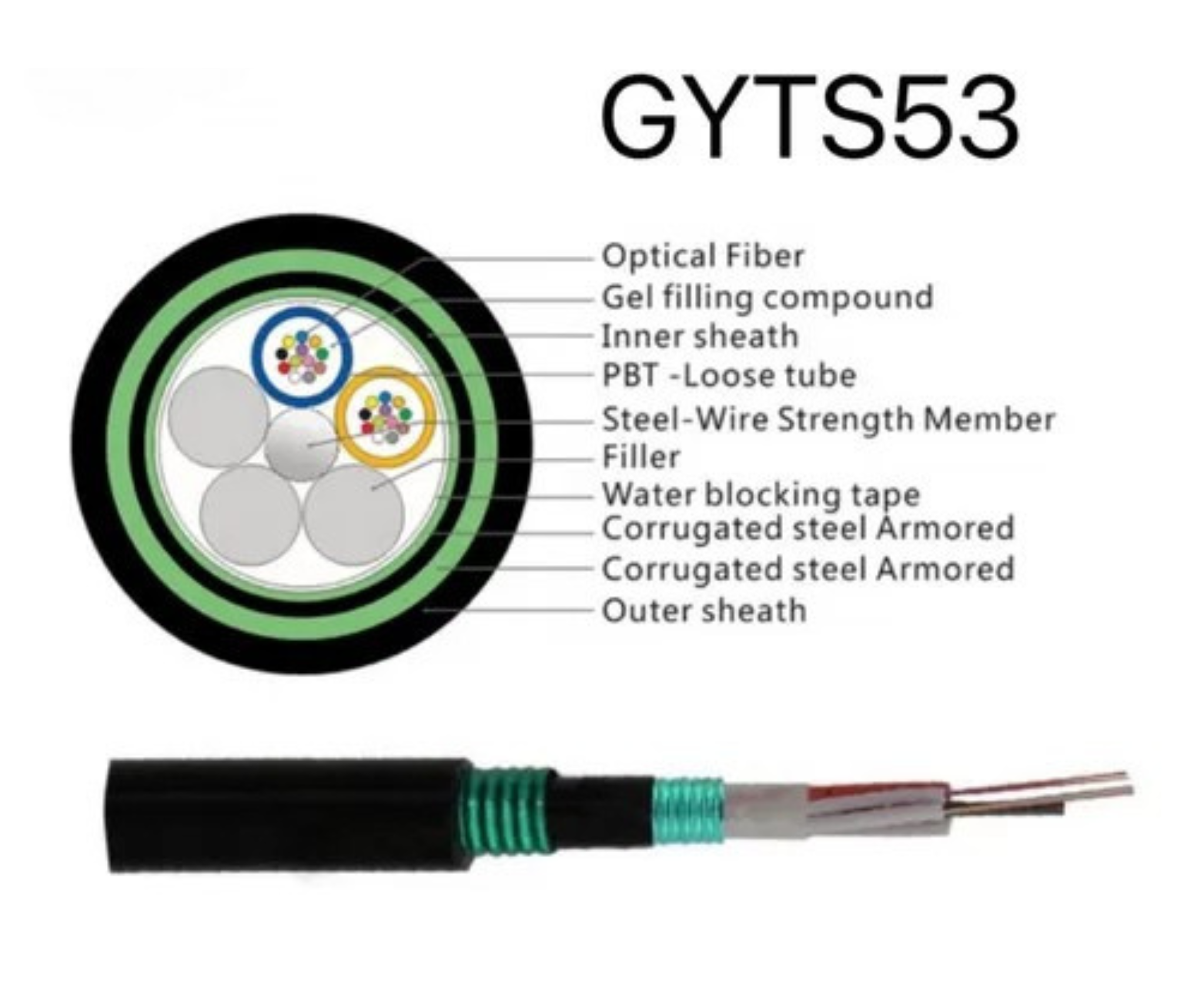

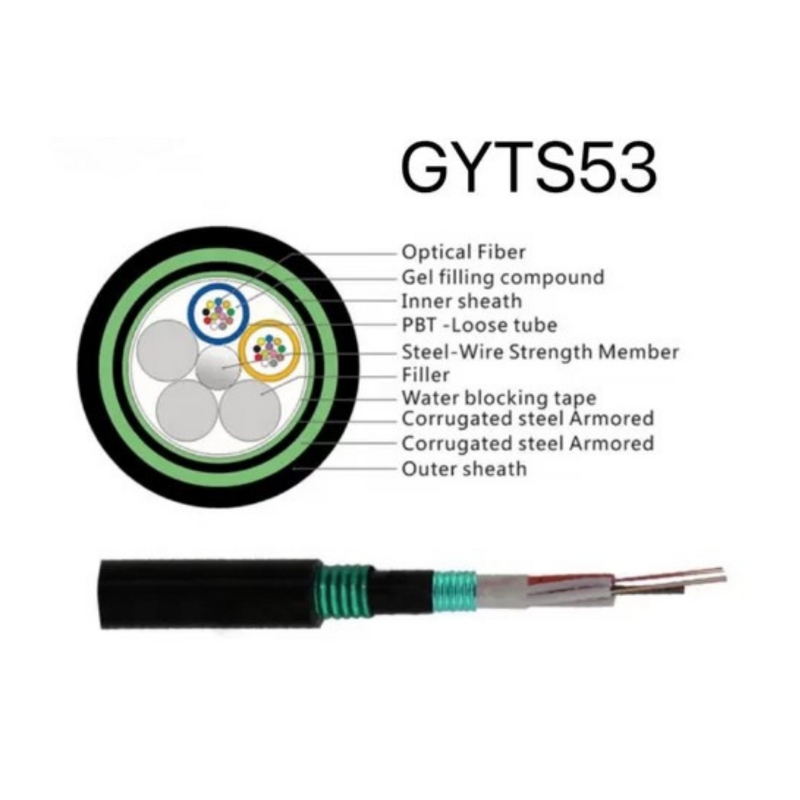

Under Ground Fiber Cable GYTS53 Direct Buried Fiber Cable

0.0

0 ratings

Contact for Quote

Variation: 48 Cores

Download Datasheet Save

SKU: #1856 Category: Optical Fiber Cable and Accessories

Contact for Price

Pricing based on order quantity

Trade Assurance Built-in order protection

In Stock

FREE Delivery on eligible orders

Deliver to

Select a city to check delivery

Supplier Info

D-TECH

Verified Supplier

4.8 / 5.0 Response Rate

7-Day Returns
if defective or damaged

Warranty
Seller warranty (if applicable)

Secure Payment
Multiple options available

Technical Parameters

Item	Contents	Value
	Fiber Count	24	48	72	96	144	288
Loose Tube	No. of tubes*fibres per tube	4*6	4*12	6*12	8*12	12*12	24*12
	Outer diameter (mm)	1.9	2.4	2.4	2.4	2.4	2.4
Central strength member	Material	Phosphated steel wire
	Diameter (mm)	2.0	2.0	2.0	2.0	2.0	2.0
	Coated CSM diameter (mm)	-	2.6	2.6	4.2	7.4	4.8
Water Blocking material	Material	Cable filling compound
Armor	Material	Corrugated steel tape
Inner Sheath	Thickness (mm)	Nominal:1.0
Anti-Rodent Armor	Material	Corrugated steel tape
Outer Sheath	Thickness (mm)	Nominal:2.0
Cable diameter(mm)Approx.		14.2	15.7	15.7	17.5	21.0	23.0
Cable weight(kg/km)Approx.		230	265	265	305	390	460
Operating temperature range(℃)		-40~+70
Tensile Strength Short/ Long Term(N)		3000/1000
Crush resistanoe short/long term (N/100mm)		3000/1000
The colour arrangement of fibre and tube is specified in the colour identification table.
Other structure and fibre count are also available according to customer requirements.
