Fiber Optic PLC Splitter with Connector – SC UPC / SC APC
The Fiber Optic PLC Splitter with Connector is designed for FTTH, FTTx, GPON, EPON, XGS-PON, telecom, ISP, and optical distribution network applications.
This PLC splitter provides stable optical signal distribution with low insertion loss and high reliability. It comes with SC UPC or SC APC connectors and supports multiple splitting ratios for various fiber optic deployment requirements.
Key Features
| Low insertion loss and stable optical performance |
| Available with SC UPC or SC APC connectors |
| Compact and lightweight design |
| Uniform optical signal distribution |
| Suitable for indoor and outdoor FTTH applications |
| High reliability and long operational lifespan |
| Supports GPON / EPON / XGS-PON networks |
| Easy installation and cable management |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Fiber Optic PLC Splitter with Connector |
| Fiber Length | 1 Meter |
| Fiber Diameter | 0.9 mm |
| Connector Type | SC UPC / SC APC |
| Splitter Technology | PLC (Planar Lightwave Circuit) |
| Fiber Type | Singlemode |
| Operating Wavelength | 1260nm – 1650nm |
| Application | FTTH / GPON / EPON / XGS-PON Networks |
Available Variants
| Variant | Connector | Fiber Length |
|---|---|---|

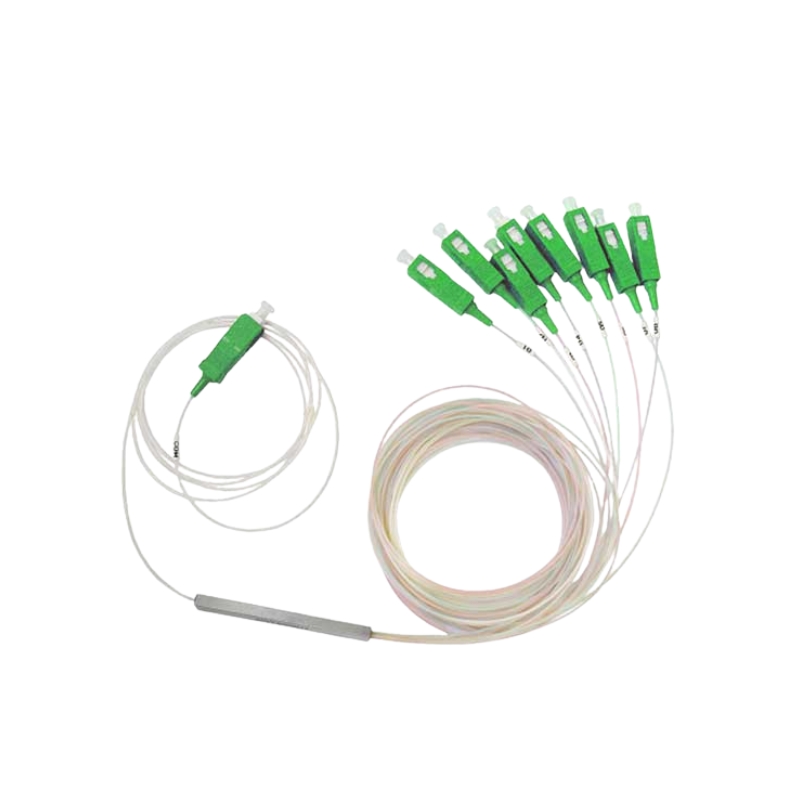

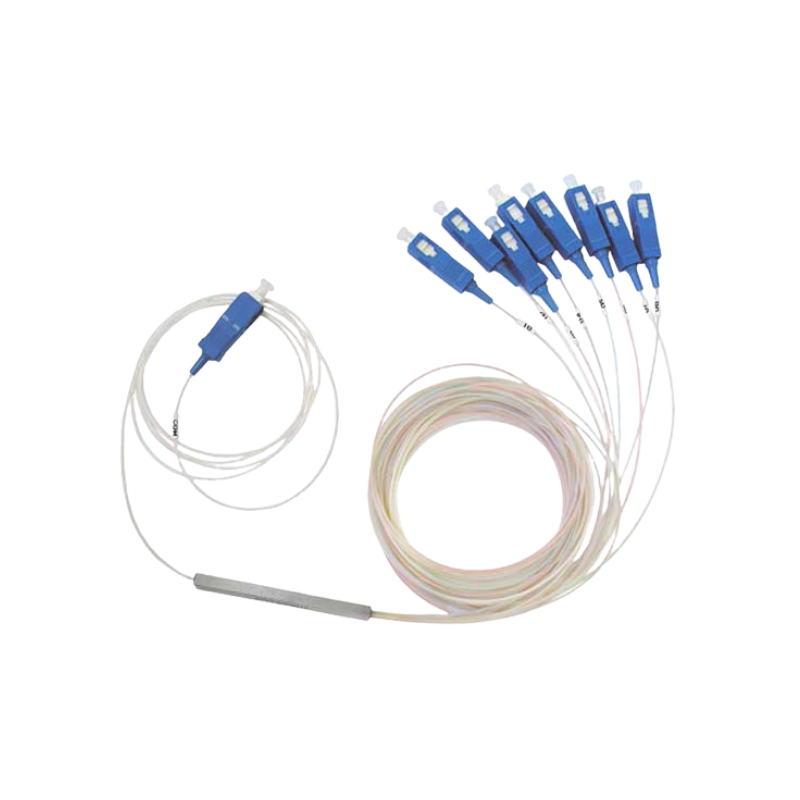

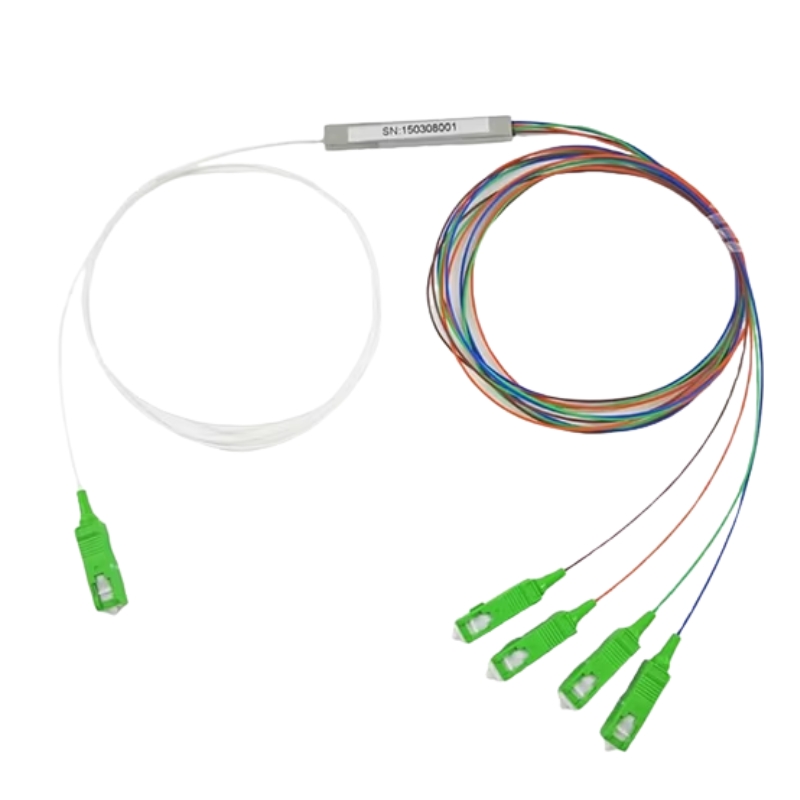

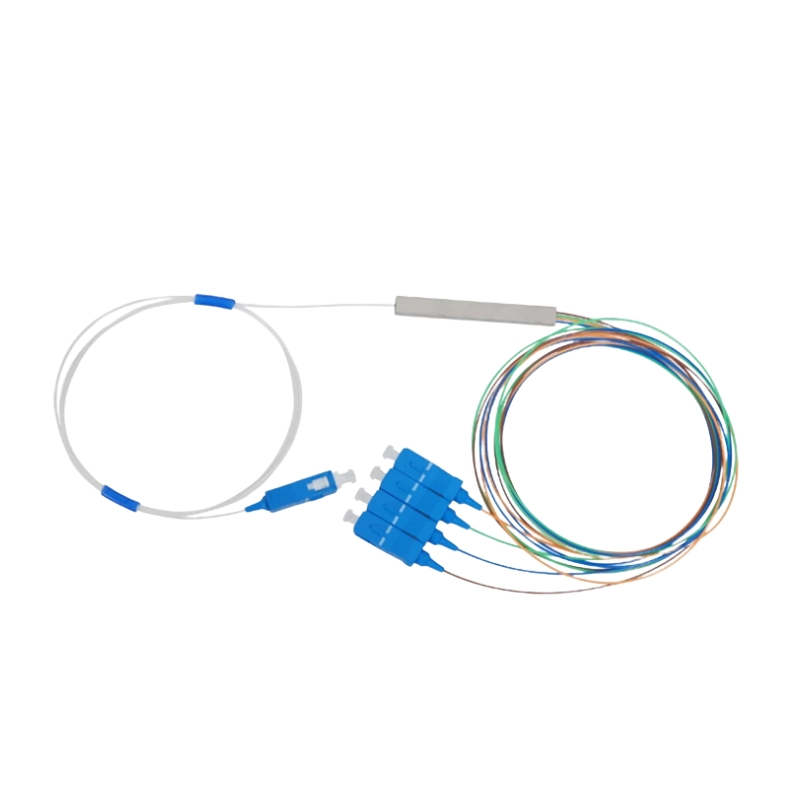

| 1:2 PLC Splitter | SC UPC / SC APC | 1 Meter |
| 1:4 PLC Splitter | SC UPC / SC APC | 1 Meter |
| 1:8 PLC Splitter | SC UPC / SC APC | 1 Meter |
| 1:16 PLC Splitter | SC UPC / SC APC | 1 Meter |
Applications
| FTTH Fiber Optic Networks |
| GPON / EPON / XGS-PON Deployment |
| ISP Distribution Networks |
| Fiber Distribution Boxes (FDB) |
| Fiber Access Termination Box (FAT) |
| Telecom Optical Distribution Networks |
Note: Select the proper splitter ratio and connector type according to your FTTH network design and optical power budget requirements.
