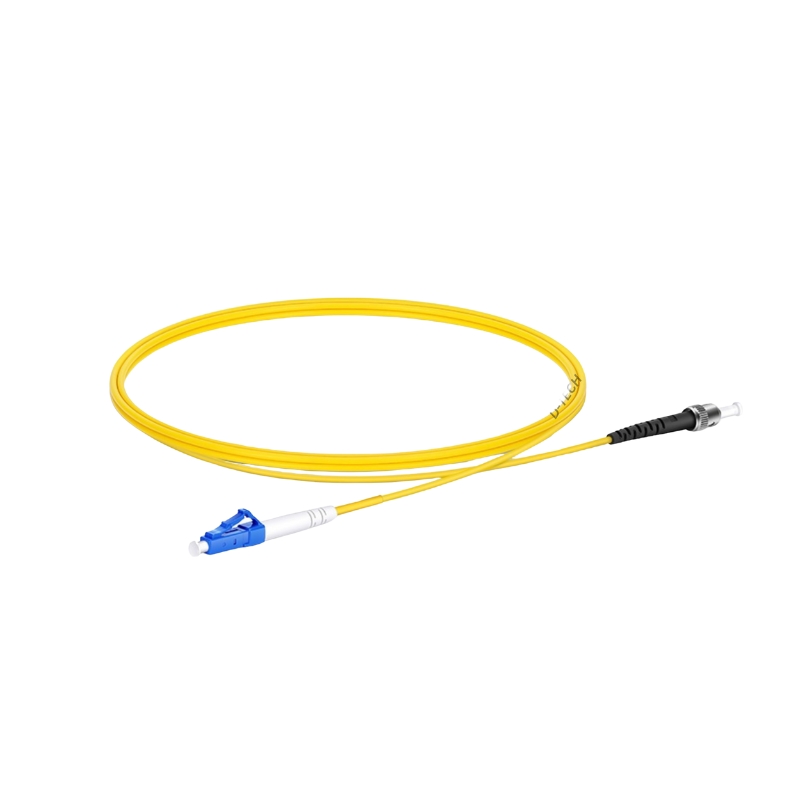

Overview of the product for the 3.00mm Simplex patch cord, ST UPC to LC UPC
Patch cord single mode fiber optic cables are appropriate for use in cloud storage networks, telecom rooms, enterprise networks, server farms, and any other application where fiber jumper cables are required. In order to guarantee excellent quality, the fiber patch cord is optically tested for insertion loss and complies with RoHS regulations.
Fiber Optic Cable Specifications
| Category | Specification |
|---|
| Connector Details |
| Connector A | LC UPC Simplex |
| Connector B | ST UPC Simplex |
| Fiber Specifications |
| Fiber Mode | OS2 9/125μm (Single-Mode) |
| Fiber Count | 1 Fiber (Simplex) |
| Fiber Grade | G.657.A1 (Bend-Insensitive, Compatible with G.652.D) |
| Wavelength | 1310 nm / 1550 nm |
| Mechanical Properties |
| Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0 mm |
| Flame Rating | Riser (OFNR – Optical Fiber Non-Conductive Riser) |
| Min. Bend Radius (Fiber) | 10 mm |
| Min. Bend Radius (Cable) | 10×D (Dynamic) / 5×D (Static) |
| Connector Durability | ≥1000 mating cycles |
| Tensile Strength | 60N (Long-Term) / 100N (Short-Term) |
| Optical Performance |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥50 dB |
| Attenuation | 0.36 dB/km @1310 nm / 0.22 dB/km @1550 nm |
| Environmental Ratings |
| Operating Temperature | -20°C to +70°C (-4°F to 158°F) |
| Storage Temperature | -40°C to +80°C (-40°F to 176°F) |
| Compliance |
| RoHS Status | Compliant |
