P616 (400G Muxponder)
Product Description:

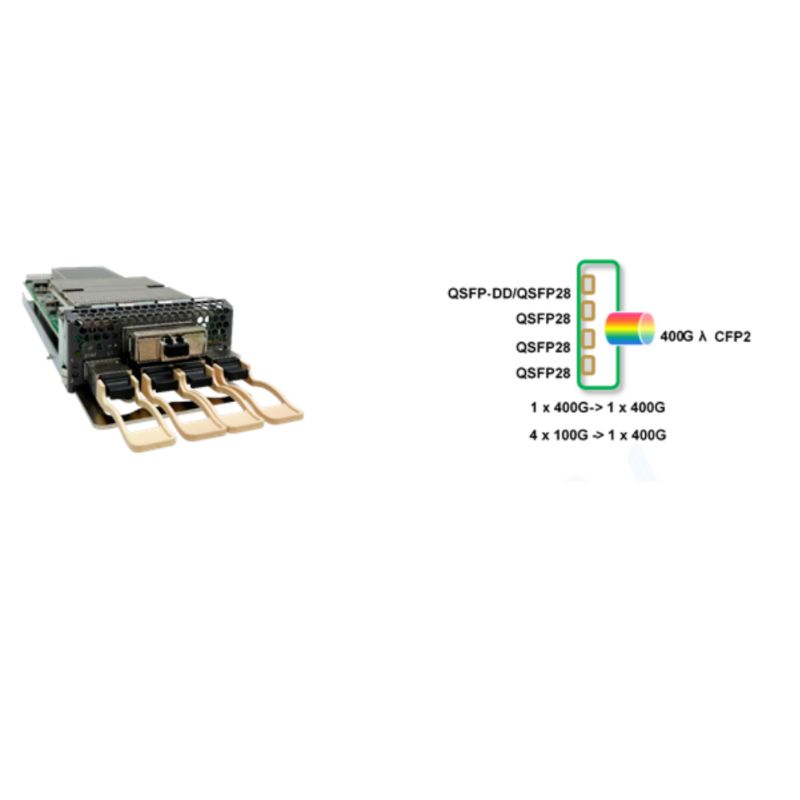

The 400G Muxponder service card (P616) launched by D Tech Trading supports mapping 1x400G optical signal or 4x100G optical signals received on the client side to 1 OTUC4 signal and interconverting OTUC4 signals with optical signals of WDM wavelengths conforming to ITU-T standards. The line side adopts pluggable CFP2-DCO to achieve ultra-long distance transmission based on advanced technologies such as coherent detection.
Applications:
- Suitable for transmission over metropolitan networks and long-distance networks up to 600 km
- Suitable for high-capacity DCI network transmission for enterprises, campuses, cloud computing, etc.
- Suitable for 400G links in existing OTN/DWDM infrastructures
Product Specification
| Parameter | Description |
|---|---|
| 400G Muxponder (P616) | |
| Function | Support 1x400G or 4x100G service signals mapping to 1 OTUC4 signal |
| Slot number | |
| Line side | - Support 1 CFP2 port: adopts 400G CFP2-DCO module, hot-pluggable |
| - Support wavelength adjustable, the range covers 191.35~196.1 THz. | |
| - Support light-emitting power adjustable | |
| - Support 100G/200G/400G rate adjustable | |
| - Support single fiber bidirectional transmission (optional) | |
| Client side | - Support 1 QSFP-DD/QSFP28, 3 QSFP28 modules hot-pluggable |
| OTN function | - Frame format and overhead handling using ITU-T G709 recommendations |
| - ODUk (k=4, C4) layer support PM and other functions | |
| - OTUk (k=4, C4) layer support SM functions | |
| Support services | 100GE, 100GE FlexE(Unware), 400GE, OTU4 |
| Time delay measurement | Online delay measurement based on ODU layer |
| Loopback | Support line side and client-side loopbacks |
| LLDP Ethernet Support | |
| Protection function | No client-side sensing during protection reversal if with optical protection board (optional) |
| Performance monitoring and alarm monitoring | |
| - Support OTN performance monitoring and alarm monitoring functions | |
| - Support optical module temperature, current, optical power monitoring, etc. | |
| - Support Ethernet RMON monitoring |
