Outdoor Internet & CCTV Network Setup
In today’s world, outdoor areas such as offices, campuses, factories, or public spaces require both reliable internet connectivity and strong security monitoring. To meet this need, a well-designed Outdoor Internet and CCTV Network System ensures smooth data transmission and 24/7 surveillance coverage.
This setup combines optical fiber technology, CAT6 cabling, and network devices like OLT, XPON MDU, switches, and NVRs to deliver high-speed internet and clear CCTV video streams from outdoor locations to a centralized monitoring room.
Components Used
1. Internet Source & 10G Managed Switch
The internet connection first enters the 10G Managed Switch. This high-speed switch distributes bandwidth efficiently to the entire network, ensuring stable performance even under heavy load.
2. OLT (Optical Line Terminal)
The OLT connects to the Managed Switch and acts as the brain of the optical network. It sends and receives data over optical fiber to multiple endpoints using PON (Passive Optical Network) technology.
3. ODF (Optical Distribution Frame)
The ODF is used for organizing, managing, and protecting the optical fiber cables. It serves as the connecting point between the OLT and the outdoor smart boxes.
4. Smart Outdoor Box
Installed at outdoor locations, these boxes protect networking equipment and power supply components from weather and external damage. They act as safe enclosures for the XPON MDU and fiber connections.
5. XPON MDU (Multi-Dwelling Unit)
The XPON MDU converts the optical fiber signal into a format that can be used by devices like access points and CCTV cameras. It connects via CAT6 cable to distribute the network to connected devices.
6. Access Points
Access points provide strong outdoor Wi-Fi coverage, allowing wireless internet connectivity in open areas.
7. CCTV Cameras
High-definition CCTV cameras are connected to the XPON MDU using CAT6 cables. These cameras continuously capture and transmit video footage.
8. NVR (Network Video Recorder) & Monitor
The NVR collects all video streams from the CCTV cameras and stores them for viewing and playback. The monitor displays real-time footage for security observation.

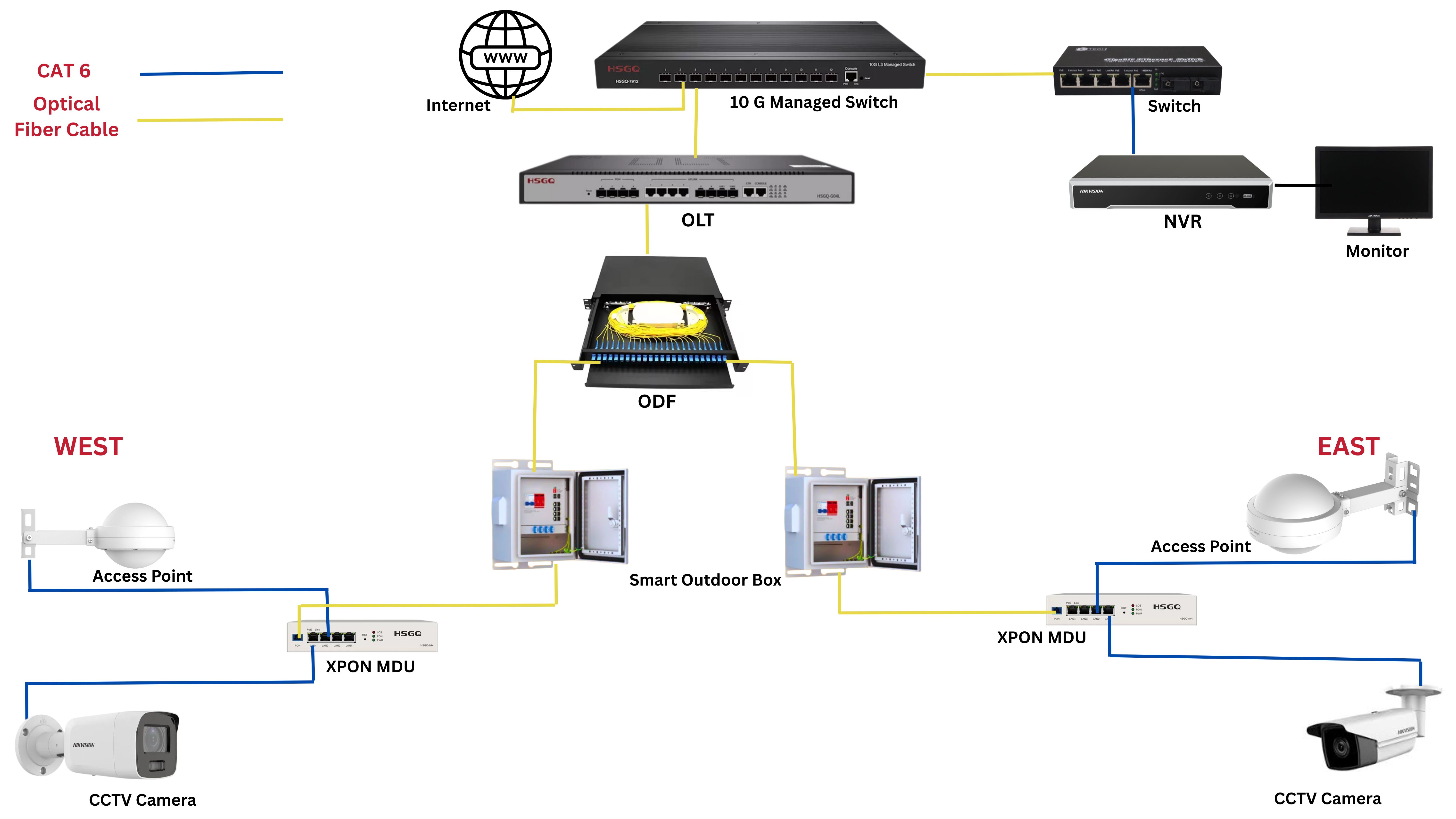

How It Works
1. Internet data flows from the ISP into the 10G Managed Switch, which routes traffic to the OLT.
2. The OLT sends the signal through optical fiber to the ODF, then distributes it to Smart Outdoor Boxes placed in different outdoor areas (East and West).
3. Inside each Smart Box, the XPON MDU converts optical signals into Ethernet for devices like Access Points and CCTV Cameras.
4. The Access Points provide internet access wirelessly, while CCTV Cameras send video feeds back through the network.
5. All video streams are recorded and viewed from the NVR and Monitor inside the control room.
This system ensures smooth internet connectivity and secure video monitoring even in large outdoor areas.
Advantages
• High-speed internet and clear CCTV footage through fiber technology
• Long-distance coverage with minimal signal loss
• Weather-protected equipment using smart outdoor boxes
• Centralized monitoring and easy maintenance
• Scalable for future expansion
Reliable Outdoor Internet & CCTV Solutions for a Safer Tomorrow
At D-Tech Trading, we understand the importance of seamless internet connectivity and strong security monitoring in outdoor environments. Our expertly designed Outdoor Internet and CCTV Network Systems provide a reliable and efficient solution for offices, campuses, factories, and public spaces. By choosing us, you can ensure uninterrupted data transmission, enhanced security, and improved productivity. Get started today and discover a safer, more connected tomorrow!
Conclusion
The Outdoor Internet & CCTV Network Setup offers a perfect combination of connectivity and security for outdoor environments. Using advanced networking components and optical fiber technology, it ensures reliability, speed, and safety across all areas.
