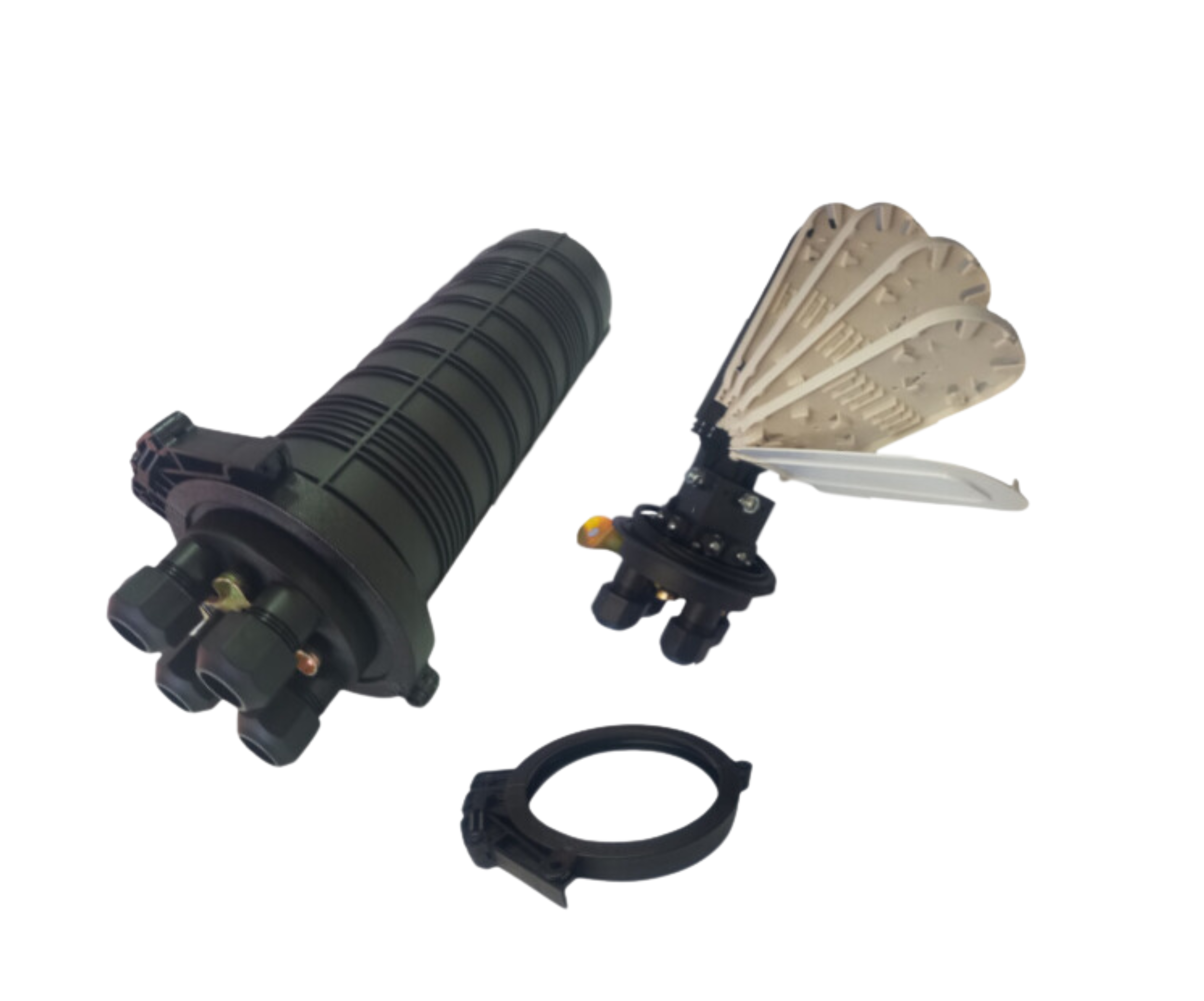

Fiber Optic Splice Closure

GJS-901-2

Overview

GJS-901-2 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc.

Features

l   The protection grade reaches IP 68.

l   Aerial and wall-mounting.

l   Ambient temperature ranges from -40 to 65℃.

l   The closure is of small volume, big capacity and convenient maintenance.

l   The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.

l   The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious workingenvironment.

l   The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.

Dimensions and Capacity

Outside Dimensions (Height*Diameter)

299mm*178mm

Weight (excluding outside box)

1550g - 1740g

Number of Inlet / Outlet Ports

4 pieces in general

Diameter of Fiber Cable

3-Φ8mm ~ Φ20mm 1-20*35mm

Capacity of FOSC

Bunchy: 6 cores - 48 cores

Main Components

Name of Components

Quantity

Usage

Remarks

FOSC Cover

1 piece

Protecting fiber cable splices in whole

Height*Diameter: 226*132 (mm)

Splice Tray (FOST)

Max. 4 trays (bunchy)

Fixing heat shrink protective sleeve and holding fibers

Bunchy:12 (cores)

Fiber Holding Tray

1 piece

Holding fibers with protective coat

N/A

Base

1 set

Fixing internal and external structure

N/A

Plastic Hoop

1 set

Fixing between FOSC cover and base

N/A

Seal Fitting

1 piece

Sealing between FOSC cover and base

N/A

Pressure Testing Valve

1 set

After inject air, it is used for pressure testing and sealing testing

Configuration as per requirement.

Earthing Deriving Device

1 set

Deriving metallic parts of fiber cables in FOSC for earthing connection

Configuration as per requirement.

Main Accessories and Special Tools

Name of Components

Quantity

Usage

Remarks

Heat Shrink Protective Sleeve

N/A

Protecting fiber splices

Configuration as per capacity

Nylon Tie

N/A

Fixing fiber with protective coat

Configuration as per capacity

Heat Shrink Fixing Sleeve (single)

N/A

Fixing and sealing single fiber cable

Configuration as per requirement

Heat Shrink Fixing Sleeve (mass)

N/A

Fixing and sealing mass of fiber cable

Configuration as per requirement

Branching Clip

N/A

Branching fiber cables

Configuration as per requirement

Earthing Wire

1 piece

Putting through between earthing devices

N/A

Desiccant

1 bag

Put into FOSC before sealing for desiccating air

N/A

Labeling Paper

1 piece

Labeling fiber

N/A

Special Wrench

1 piece

Tightening nut of reinforced core

N/A

Metal Hoop

1 set

For wall mounting and pole hugging

N/A

Buffer Tube

Customized

Hitched to fibers and fixed with FOST, managing buffer

Configuration as per requirement

Shipping Information

Specification

Carton Size

Capacity

Net Weight

Remarks

Inner Box

170mm*155mm*300mm

1 pc

1.65kg- 1.85kg

Configuration as per weight

Outer Box

490mm*370mm*625mm

12 pcs

19.8kg - 22.2kg

Configuration as per weight
