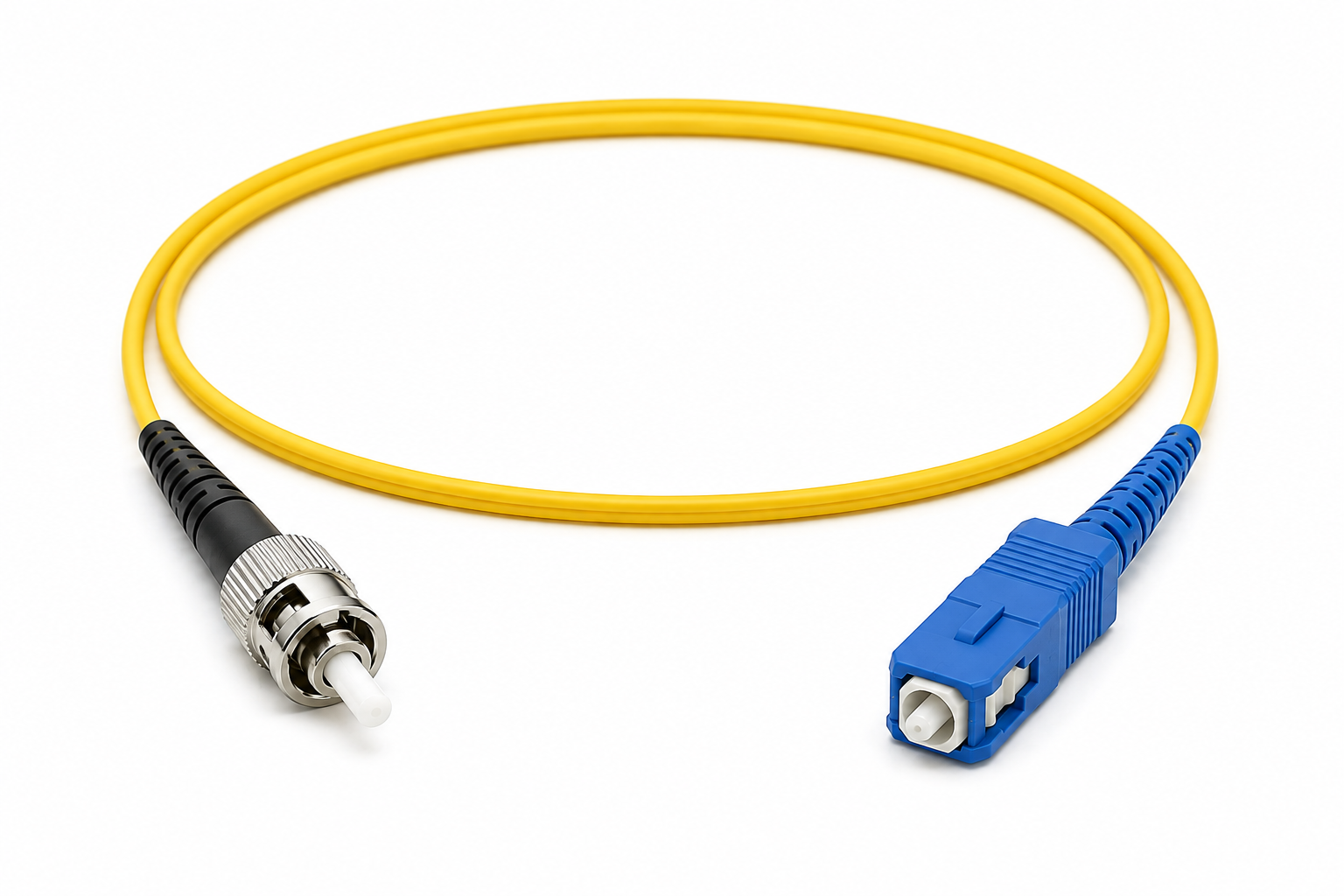

Fiber Optic Patch Cord Simplex ST UPC to SC UPC

0.0

0 ratings

Rs 2 .00

Exclusive of all taxes

Variation: 5M 3.00mm

5M 3.00mm

Download Datasheet Save

SKU: #1893 Category: Optical Fiber Cable and Accessories

Rs 2.00

Excl. taxes

Min. Order	Unit Price
1 Pc(1)	Rs 2.00

Trade Assurance Built-in order protection

In Stock

FREE Delivery on eligible orders

Deliver to

Select a city to check delivery

Supplier Info

D-TECH

Verified Supplier

4.8 / 5.0 Response Rate

7-Day Returns
if defective or damaged

Warranty
Seller warranty (if applicable)

Secure Payment
Multiple options available

SINGLE MODE • OS2

ST UPC Duplex to SC UPC Fiber Patch Cord

High-performance 2-fiber OS2 patch cord featuring G.657.A1 bend-insensitive single-mode fiber, low insertion loss and reliable optical performance for telecom, data communication and fiber network applications.

Quick Specifications

CONNECTOR A

SC UPC Duplex

CONNECTOR B

ST UPC

FIBER MODE

OS2 9/125μm

INSERTION LOSS

≤ 0.3 dB

Key Features

✓ SC UPC Duplex to ST UPC

✓ 2-Fiber Duplex Connection

✓ OS2 9/125μm Single Mode

✓ G.657.A1 Bend-Insensitive Fiber

✓ Compatible with G.652.D

✓ Low Insertion Loss ≤ 0.3 dB

✓ Return Loss ≥ 50 dB

✓ 1310 / 1550 nm Wavelength

Technical Specifications

Parameter	Specification
Connector A	SC UPC Duplex
Connector B	ST UPC
Fiber Count	2 Fibers
Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Mode	OS2 9/125μm
Wavelength	1310 / 1550 nm
Flame Rating	Riser (OFNR)
Cable Outside Diameter (OD)	2.0 mm
Polarity	A (Tx) to B (Rx)
Cable Type	Tight-Buffered
Min. Bend Radius (Optical Fiber)	10 mm
Min. Bend Radius (Fiber Cable)	10/5D (Dynamic / Static)
Connector Durability	1000 Times
Tensile Strength	90 / 150 N (Long / Short Term)
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 50 dB
Attenuation at 1310 nm	≤ 0.4 dB/km
Attenuation at 1550 nm	≤ 0.3 dB/km
Operating Temperature	-10°C to +70°C (14°F to 158°F)
Storage Temperature	-20°C to +70°C (-4°F to 158°F)

Reliable Optical Performance

Built with G.657.A1 bend-insensitive OS2 single-mode fiber, this patch cord provides low optical loss and reliable performance at 1310 nm and 1550 nm. It is suitable for professional fiber optic connections where SC UPC Duplex and ST UPC interfaces are required.
