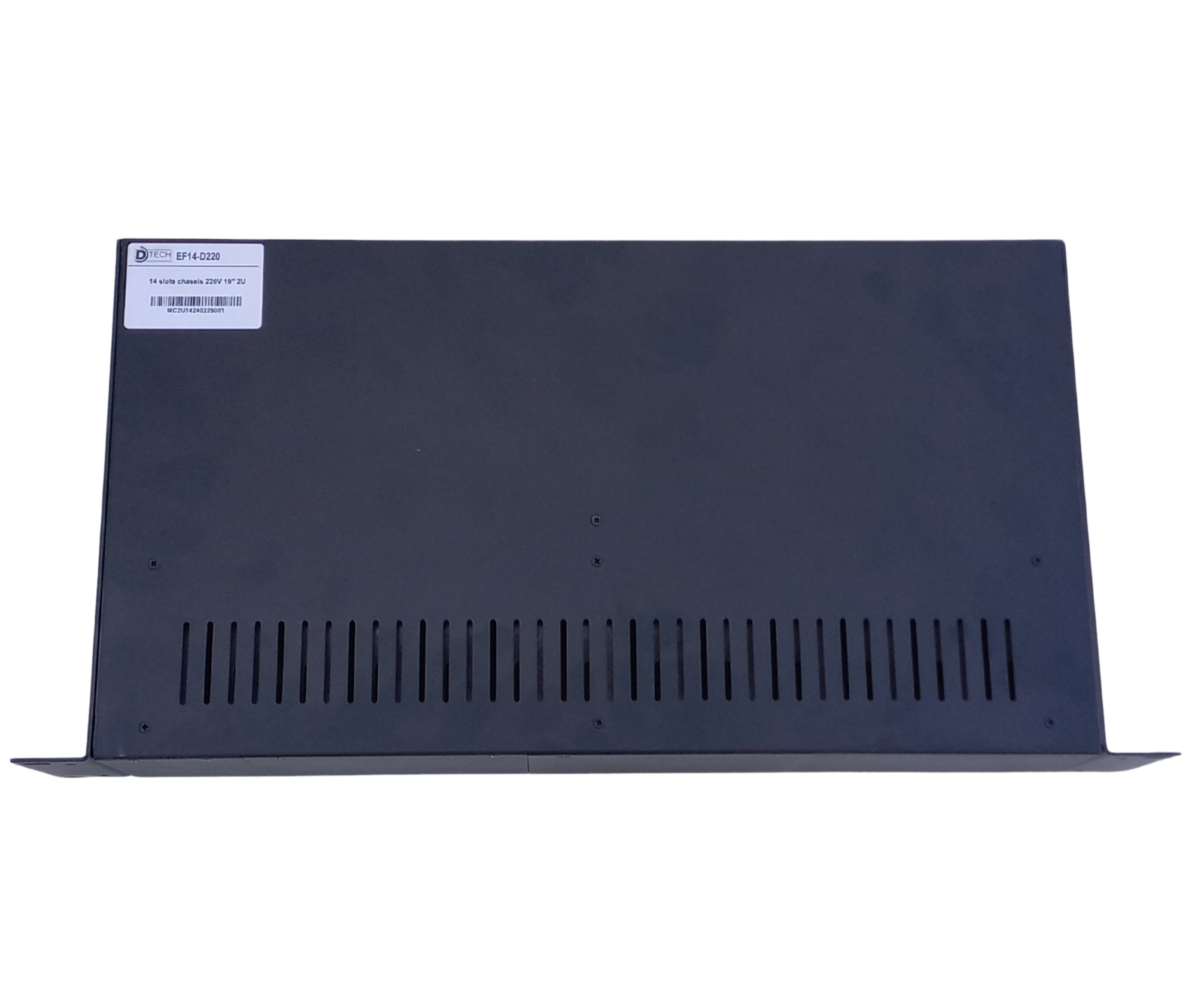

The 14-Port Media Converter Chassis is a
high-capacity, rack-mountable chassis
system designed to house and power up to 14 individual media converters in a centralized and organized
setup. Ideal for enterprise and telecom
environments, this chassis supports flexible fiber and copper network conversions while saving space and
simplifying cable management. It includes
a single built-in power supply,
with optional support for dual-redundant
power for enhanced reliability.
1. Capacity: Supports up to 14 media converter
modules
2. Power Supply: 1× integrated hot-swappable power
module (AC 100–240V, 50/60Hz)
3. Redundancy: Slot for optional second power
supply for power backup
4. Cooling System: Built-in
intelligent cooling fan for heat dissipation and stable operation
5. Form Factor: 2U rack-mount (fits standard
19-inch racks)
6. Compatibility: Compatible with standalone media
converters (modular type)
7. Power Output: Provides stable power to all 14
slots simultaneously
8. LED Indicators: Power and fan
status monitoring
9. Material: Cold-rolled steel chassis with
powder-coated finish
10. Operating Temperature: 0°C to +50°C
11. Dimensions: Approx. 485mm × 245mm × 90mm
1. Centralized
media converter management
2. Metro
Ethernet networks
3. Enterprise
fiber/copper network integration
4. FTTx
deployment
5. Network
control rooms and data centers
