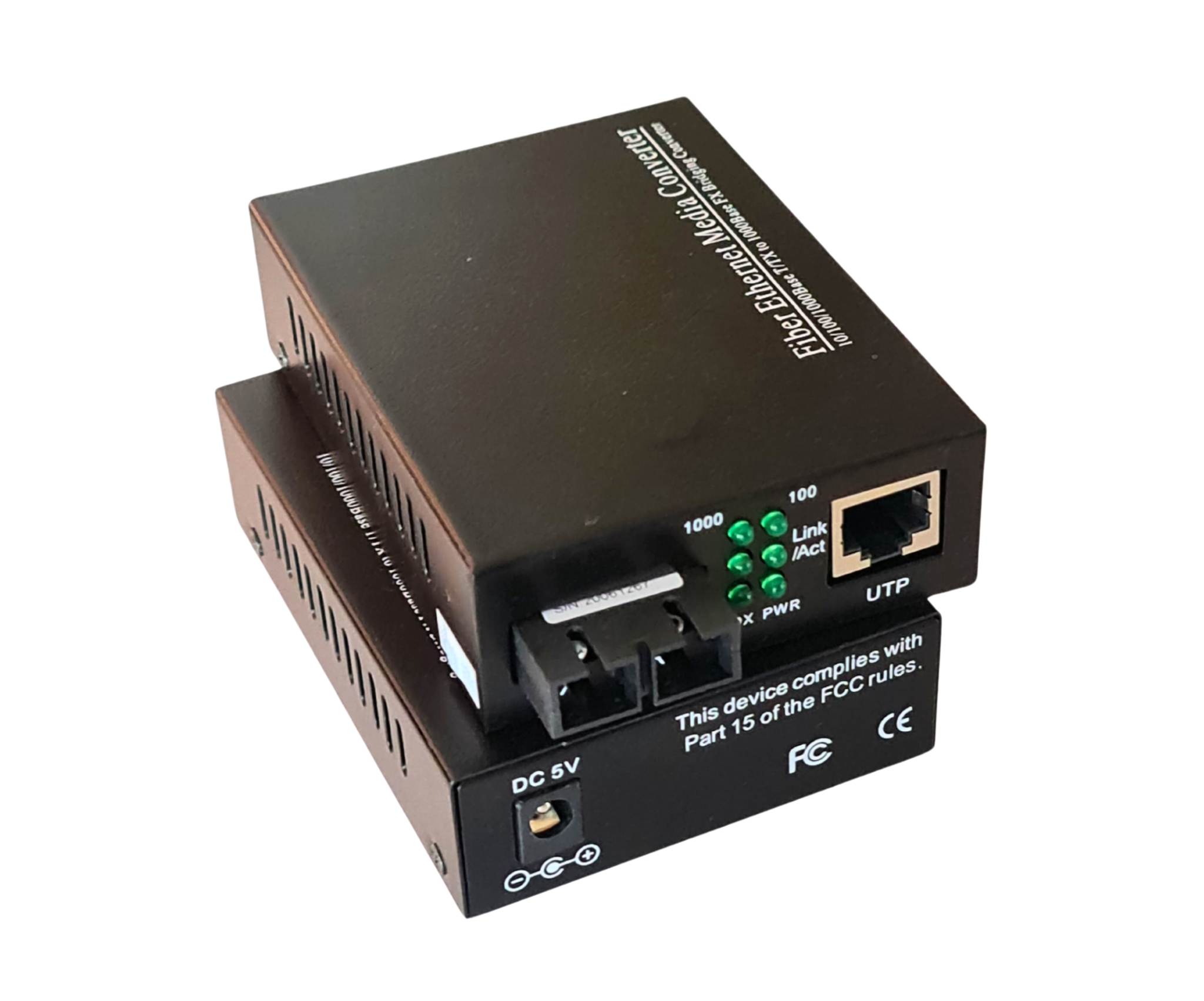

Media Converter Dual Fiber 10/100/1000 20KM

Media Converter Overview of Media Converter Dual Fiber 10/100/1000 20KM:

Media converters offer a versatile solution for integrating new technology with existing equipment across various network environments, facilitating the support of emerging applications, technologies, and future growth. By leveraging media converters, businesses can extend the useful life of their current cabling infrastructure and active equipment, avoiding costly across-the-board upgrades.

Key Features:

AutoCrossTM: Seamlessly configures the twisted pair port to the correct MDI or MDI-X configuration, ensuring hassle-free connectivity.

Link Pass Through: Provides troubleshooting capabilities by monitoring both fiber and copper RX ports for signal loss.

Automatic Link Restoration: This ensures the automatic re-establishment of links under all network conditions, enhancing reliability.

Selectable Speed Setting: Enables flexible speed configuration (10Mbps, 100Mbps, or 1000Mbps), with automatic synchronization between copper and fiber ports.

Jumbo Frames Support: Available for the 10/100/1000M media converter with 1 RJ45 port + 1 fiber port, facilitating efficient data transmission.

Key Features for Media Converter Dual Fiber 10/100/1000 20 KM:

  • Supports auto-negotiation of 10/100/1000 Mbps speeds.
  • Implements IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control for optimized data transfer.
  • Facilitates MAC self-learning for efficient network management.
  • Compliant with IEEE 802.3, IEEE 802.3u, and other industry standards, ensuring compatibility and interoperability.
  • LED indicators provide status updates on link, activity, full/half duplex, speed, and power for easy diagnostics.
  • It boasts low power consumption and heat generation, ensuring reliable and stable performance.

Specifications of Media Converter Dual Fiber 10/100/1000 20 KM:

ParameterSpecification
UTP Port1-port RJ45, 2-port RJ45 / 4-port RJ45
Power SupplyExternal or built-in
Dimension (mm)Varies based on power supply type
UTP Rate10/100/1000Mbps
Fiber PortDuplex SC, ST, and FC are available
Fiber Rate1000Mbps
Fiber Wavelength1310nm
Fiber ModeSingle-mode
DistanceUp to 20km
LED IndicatorTX LINK, FX LINK, TX ACT, FX ACT, PWR, and FDX
Working Temperature-20~75°C
Relative Humidity5%~90%
