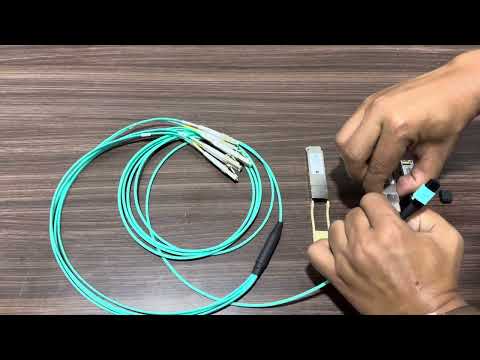

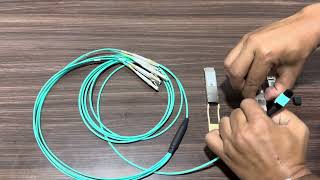

MPO-12F (Female, APC) to 6x LC Duplex UPC BreakOut OM3

SKU: #28

0.0 0 ratings

Available options

Category: Optical Fiber Cable and Accessories

Rs 2.00

Inclusive of all taxes

Ships from D-TECH

Deliver to

Select a city to check delivery

Returns: 7-day replacement

Warranty: Seller warranty (if applicable)

Need help? Customer Service

Applications:

 Asynchronous Transmission Mode(ATM)  Gigabit Ethernet
 Active Deviced/Transceiver Interface
 CATV, Video and Multimedia

 Premise Installations
 Telecommunication Networks
 Parallel optical interconnect between PC Cards and patch panels  Interconnection for O/E modules
 Industrial & Military
 Optical Switch interframe connections

Features:

 Precision molded MT ferrule
 High precision guide pins for exact alignment  Compact design, up to 4,8,12,24 fibers
 IEC 61754-7 Compliant
 EIA/TIA-604-5 Compliant

Specifications:

Item	LC、SC、ST、FC.......	MPO/MTP
End face type	UPC and APC	PC and APC
Fiber type	SM(G652、G655、G657);MM(OM1-OM5)
Core number	8、12、24
Cable Diameter	0.9、2.0、3.0	Mini Round cable:Max4.5mm; Ribbon cable:Max3.0*5.0mm
Insertion loss(dB)	≤ 0.3	Standard:≤ 0.35/0.7(Typical/Max) Low Loss:≤ 0.2/0.35(Typical/Max)
Return loss(Min)	UPC SM:40dB APC SM:60dB UPC MM:25dB	SM: APC:60dB	MM: PC:20dB
Test Wavelength(nm)	SM:1310/1550 MM:850/1300
Repeatability	≤ 0.1dB
Durability	≤ 0.2dB
Interchangeability	≤ 0.2dB
Operating Temperature	-20°C~70°C
Storage Temperature	-40°C~80°C
Outer Sheath Material	PVC、LSZH
Bending radius (Static/Dynamic)	10D/20D
Length	Customized
