MPO Fiber Patch cord 3.00mm OM3
Visit the D-TECH Store
Contact for
Quote
Variation:
F-F 12 1M
-MPO(F)-MO3-3.0-8 pin (2).jpg)
-MPO(F)-MO3-3.0-8 pin (4).jpg)
-MPO(F)-MO3-3.0-8 pin (3).jpg)
About this item
- MPO(F)-MPO(F)-MO3-3.0-8 pin-1M
Contact for Price
Pricing based on order quantity
Trade Assurance
Built-in order protection
In Stock
FREE Delivery on eligible orders
Select a city to check delivery
Supplier Info
D-TECH
Verified Supplier
4.8 / 5.0 Response Rate
7-Day Returns
if defective or damaged
if defective or damaged
Warranty
Seller warranty (if applicable)
Seller warranty (if applicable)
Secure Payment
Multiple options available
Multiple options available

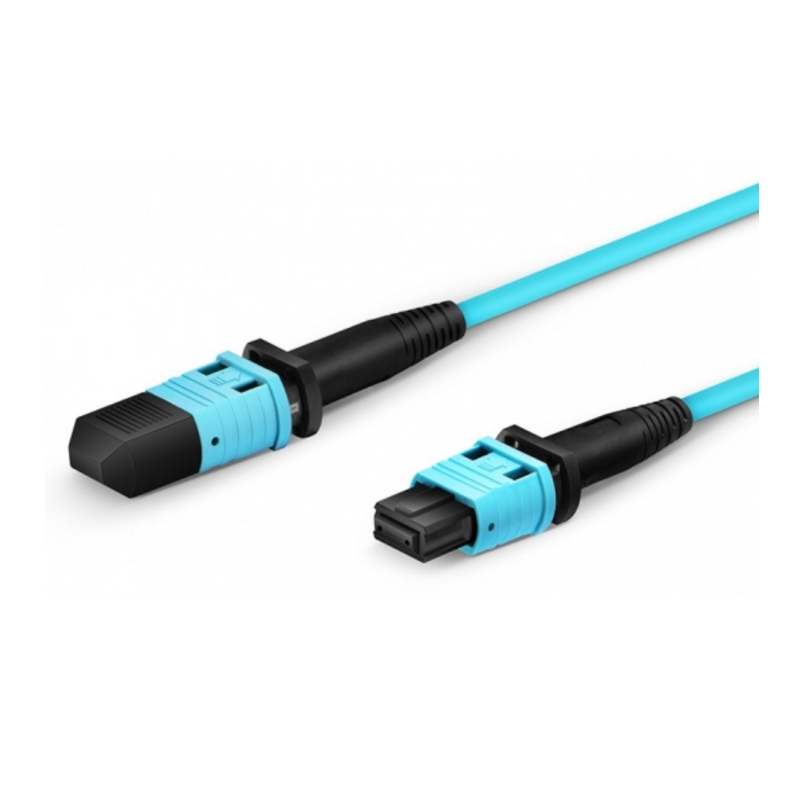

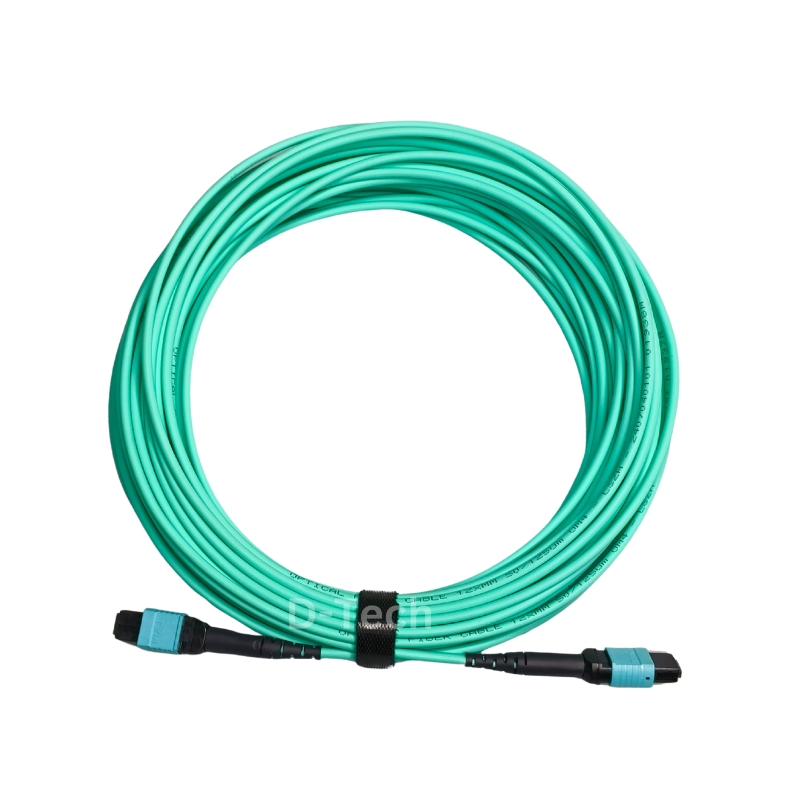

MPO Fiber Patch Cord OM3 (12 Fiber) – 3.0mm
Overview
| Product Overview | |
|---|---|
| MPO OM3 patch cords are high-density fiber optic cables designed for data centers and high-speed networks such as 40G and 100G parallel optics. A 12-fiber MPO connector integrates multiple fibers into one compact interface, reducing space usage and improving cabling efficiency. |
General Specifications
| Parameter | Specification |
|---|---|
| Model | MPO – MPO Fiber Patch Cord |
| Connector Type | MPO Female – MPO Female |
| Polarity | Type B (Crossed) |
| Fiber Type | OM3 Multimode |
| Fiber Count | 12 Fiber |
| Cable Diameter | 3.0 mm |
Optical Fiber Specification
| Parameter | Specification |
|---|---|
| Fiber Type | OM3 Multimode |
| Core / Cladding | 50 / 125 µm |
| Operating Wavelength | 850 nm / 1300 nm |
| Bandwidth | ≥ 2000 MHz·km @ 850 nm |
| Attenuation @ 850 nm | ≤ 3.0 dB/km |
| Attenuation @ 1300 nm | ≤ 1.0 dB/km |
| Standard | ISO/IEC 11801, TIA-568 |
MPO Connector Specification
| Parameter | Specification |
|---|---|
| Connector Type | MPO Female |
| Fiber Positions | 12 Fiber |
| Ferrule Type | MT Ferrule |
| Polish Type | UPC |
| Insertion Loss | ≤ 0.35 dB (Typical) |
| Low Loss Option | ≤ 0.20 dB |
| Return Loss | ≥ 20 dB |
| Connector Color | Aqua |
Cable Construction
| Parameter | Specification |
|---|---|
| Cable Type | Multimode Patch Cord |
| Fiber Count | 12 Fiber |
| Cable Diameter | 3.0 mm |
| Jacket Material | LSZH / PVC |
| Cable Color | Aqua |
| Strength Member | Aramid Yarn |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −40°C to +85°C |
MPO(F)-MPO(F)-MO3-3.0-8 pin-1M
