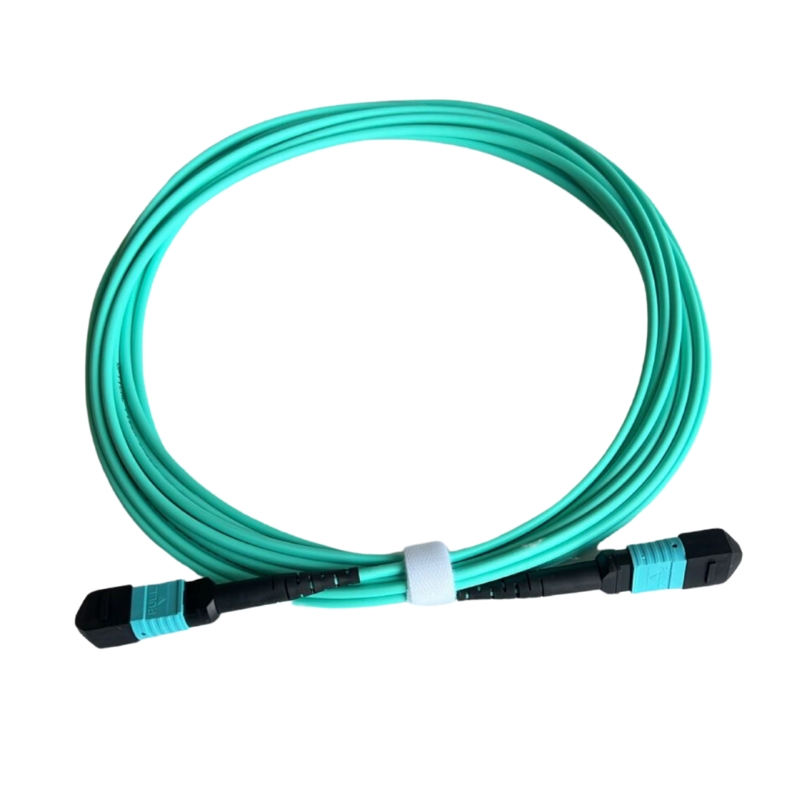

MPO Fiber Patch cord 3.00mm OM3
F-F 12 5M
Brand:
D-TECH
Variant Specifications
Warranty:
Weight:
Country of Origin:
Lead Time:
More Details:
Package:
Available options
-MPO(F)-MO3-3.0-8 pin (2).jpg){kind=small}
F-F 12 1M
-MPO(F)-MO3-3.0-8 pin (3).jpg){kind=small}
F-F 12 25M
4% OFF
Rs 3,015.94
List: Rs 3,136.58
MPO Fiber Patch Cord Specification
| Product Overview | |
|---|---|
| Model | MPO–MPO Fiber Patch Cord |
| Connector Type | MPO Female – MPO Female |
| Polarity | Type B (Crossed) |
| Fiber Type | OM3 Multimode |
| Fiber Count | 12 Fiber |
| Cable Diameter | 3.0 mm |
Description
MPO OM3 patch cords are high-density fiber optic cables designed for data centers and high-speed networks such as 40G and 100G parallel optics.
A 12-fiber MPO connector integrates multiple fibers into one compact interface, reducing space and improving cabling efficiency.
1. Optical Fiber Specification
| Parameter | Specification |
|---|---|
| Fiber Type | OM3 Multimode |
| Core / Cladding | 50 / 125 µm |
| Operating Wavelength | 850 nm / 1300 nm |
| Bandwidth | ≥ 2000 MHz·km @ 850 nm |
| Attenuation @ 850 nm | ≤ 3.0 dB/km |
| Attenuation @ 1300 nm | ≤ 1.0 dB/km |
| Standard | ISO/IEC 11801, TIA-568 |
2. MPO Connector Specification
| Parameter | Specification |
|---|---|
| Connector Type | MPO Female |
| Fiber Positions | 12 Fiber |
| Ferrule Type | MT Ferrule |
| Polish Type | UPC |
| Insertion Loss | ≤ 0.35 dB (Typical) |
| Low Loss Option | ≤ 0.20 dB |
| Return Loss | ≥ 20 dB |
| Connector Color | Aqua |
3. Cable Construction
| Parameter | Specification |
|---|---|
| Cable Type | Multimode Patch Cord |
| Fiber Count | 12 Fiber |
| Cable Diameter | 3.0 mm |
| Jacket Material | LSZH / PVC |
| Strength Member | Aramid Yarn |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −40°C to +85°C |
MPO(F)-MPO(F)-MO3-3.0-8 pin-1M
