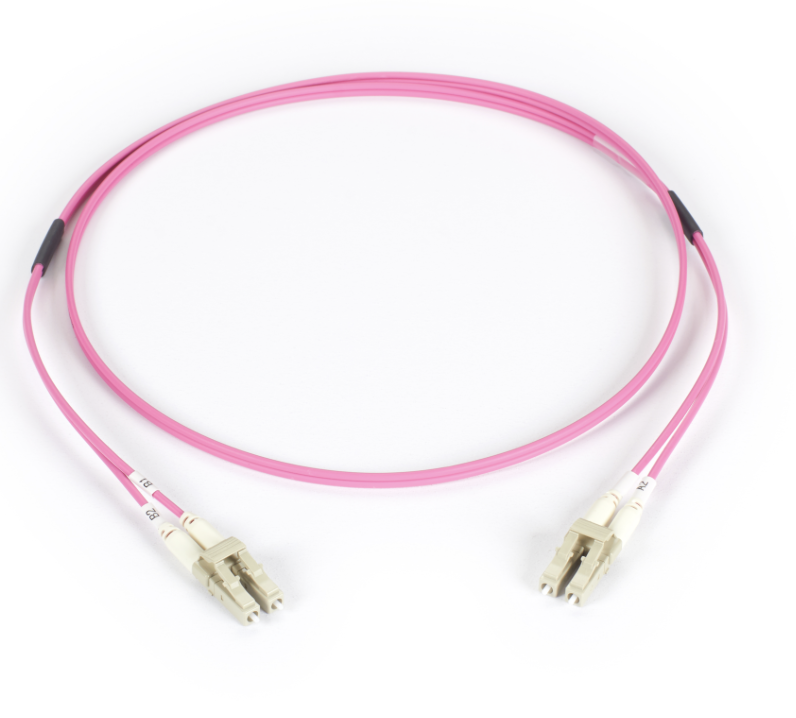

Patch Cord LC UPC to LC UPC 3.00mm Duplex Multimode OM4
Visit the D-TECH Store
-18%
Rs
450
.00
M.R.P.: Rs 550.00
Exclusive of all taxes
Variation:
1M 3.00mm
Rs 450.00
-18%
M.R.P. Rs 550.00
Excl. taxes
| Min. Order | Unit Price |
|---|---|
| 1 Pc(1) | Rs 450.00 |
Trade Assurance
Built-in order protection
In Stock
FREE Delivery on eligible orders
Select a city to check delivery
Supplier Info
D-TECH
Verified Supplier
4.8 / 5.0 Response Rate
7-Day Returns
if defective or damaged
if defective or damaged
Warranty
Seller warranty (if applicable)
Seller warranty (if applicable)
Secure Payment
Multiple options available
Multiple options available

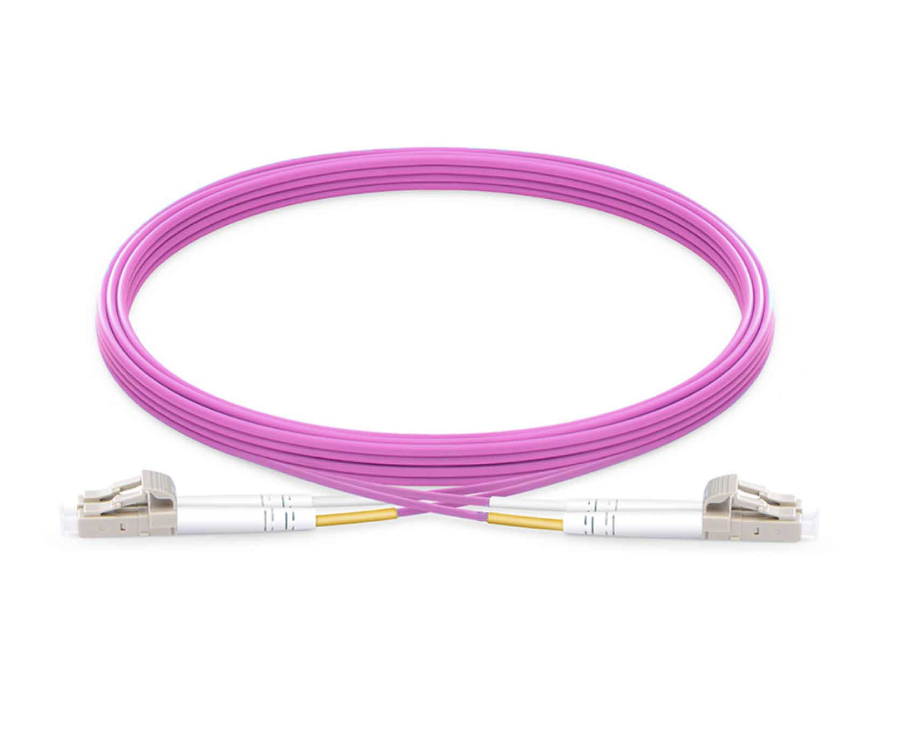

OM4 Fiber Patch Cord (LC UPC Duplex)
50/125µm Multimode • Bend Insensitive • High-Speed Data Center Connectivity
The OM4 Fiber Patch Cord is a premium-quality 50/125µm multimode duplex optical patch cable designed for high-speed Ethernet, storage area networks (SAN), enterprise networks, and modern data centers. Featuring LC UPC duplex connectors on both ends and bend-insensitive OM4 fiber, it delivers reliable low-loss optical performance for 10G, 25G, 40G, 100G, and higher-speed network applications.
Manufactured using high-quality optical fiber and precision ceramic ferrules, the patch cord provides excellent insertion loss, durability, and stable signal transmission for mission-critical networking environments.
Fiber Type
OM4
Connector
LC UPC
Fiber Count
Duplex
Insertion Loss
≤ 0.3 dB
Key Features
✔ OM4 50/125µm Bend Insensitive Multimode Fiber
✔ LC UPC Duplex Connectors
✔ Supports 10G, 25G, 40G & 100G Ethernet
✔ Low Insertion Loss & Stable Optical Performance
✔ High Durability (1000+ Mating Cycles)
✔ Suitable for Data Centers & Enterprise Networks
✔ OFNR Riser Rated Jacket
✔ Factory Tested for Reliable Performance
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | OM4 Fiber Patch Cord |
| Connector A | LC UPC Duplex |
| Connector B | LC UPC Duplex |
| Fiber Count | 2 Fibers (Duplex) |
| Fiber Mode | OM4 50/125µm Multimode |
| Fiber Grade | Bend Insensitive Fiber |
| Operating Wavelength | 850 / 1300 nm |
| Cable Type | Tight Buffered |
| Cable Diameter | 2.0 mm / 3.0 mm |
| Polarity | A (Tx) to B (Rx) |
| Flame Rating | OFNR (Riser) |
| Minimum Bend Radius (Fiber) | 7.5 mm |
| Minimum Bend Radius (Cable) | 20D (Dynamic) / 10D (Static) |
| Tensile Strength | 90 N (Long Term) / 150 N (Short Term) |
| Connector Durability | ≥ 1000 Mating Cycles |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 30 dB |
| Attenuation @ 850nm | ≤ 3.5 dB/km |
| Attenuation @ 1300nm | ≤ 1.5 dB/km |
Applications
10G / 25G / 40G / 100G Ethernet
Data Centers
Enterprise Networks
Storage Area Networks (SAN)
Switch-to-Switch Connections
Server & Router Connectivity
Telecommunication Networks
High-Speed Optical Infrastructure
Available Options:
Connector: LC UPC Duplex to LC UPC Duplex
Cable Diameter: 2.0mm / 3.0mm
Length: Please select the required cable length before ordering.
Connector: LC UPC Duplex to LC UPC Duplex
Cable Diameter: 2.0mm / 3.0mm
Length: Please select the required cable length before ordering.
