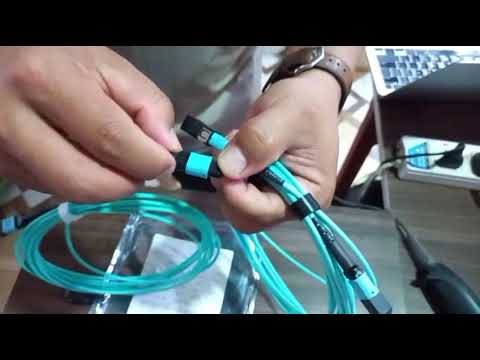

MPO Fiber Patch Cord OM4 3.0mm Multimode – High Density Fiber Cable
Product Overview
The MPO Fiber Patch Cord OM4 3.0mm Multimode is designed for high-density data center and telecom network applications. It uses premium OM4 50/125µm multimode optical fiber and precision MPO/MTP connectors to deliver stable, low-loss, high-speed transmission.
This MPO patch cord supports 10G, 40G, and 100G Ethernet networks and is ideal for backbone cabling, rack-to-rack connections, and high-bandwidth enterprise fiber systems in Nepal.
1. Optical Fiber Specification (OM4)
Parameter | Specification |
Fiber Type | OM4 Multimode |
Core / Cladding Diameter | 50 / 125 µm |
Operating Wavelength | 850 nm / 1300 nm |
Effective Modal Bandwidth | ≥ 4700 MHz·km @ 850 nm |
Attenuation @ 850 nm | ≤ 3.0 dB/km |
Attenuation @ 1300 nm | ≤ 1.0 dB/km |
Standard Compliance | ISO/IEC 11801, TIA-568 |
2. MPO Connector Specification
Parameter | Specification |
Connector Type | MPO Female |
Fiber Positions | 12 Fiber |
Ferrule Material | MT Ferrule |
Polish Type | UPC |
Insertion Loss (Typical) | ≤ 0.35 dB |
Low Loss Option | ≤ 0.20 dB |
Return Loss | ≥ 20 dB |
Connector Housing Color | Aqua |
3. Cable Construction
Parameter | Specification |
Cable Type | Multimode MPO Patch Cord |
Fiber Count | 12 Fiber |
Cable Diameter | 3.0 mm |
Jacket Material | LSZH / PVC |
Cable Color | Aqua |
Strength Member | Aramid Yarn (Kevlar) |
Operating Temperature | −20 °C to +70 °C |
Storage Temperature | −40 °C to +85 °C |
Applications
Data Center Backbone Cabling
High Density Patch Panels
40G and 100G Parallel Optics
Telecom Central Office
Enterprise Fiber Networks
Data sheet of MPO Fiber patch cord
