ADSS Suspension Clamp Span 100M
9-12mm
Variant Specifications
Warranty:
Weight:
Country of Origin:
Lead Time:
More Details:
Package:
Warranty:
Weight:
More Informations:
Package:
Origin:
Delivery Lead Time:
1% OFF
Rs 920.20
List: Rs 931.85
Suspension Set for 100m Span
Description
The ADSS suspension clamp is used to connect ADSS cables on straight poles or towers. It features a simple structure, easy installation, and lower cost.
1. Configuration
| S.NO | Description | Code | Material | Qty | Weight (kg) |
|---|---|---|---|---|---|
| 1 | U Clevis | U-5 | Forged Steel | 1 | 0.3 |
| 2 | Housing | — | Aluminum Alloy, Length: 100mm | 1 | 0.4 |
| 3 | Synthetic Rubber | — | Length: 120mm | 1 | 0.15 |
| Total Weight (kg) | 0.85 | ||||
Type 1
| 1 | Anchor Shackle: Forged Steel |
| 2 | Housing: Aluminum Alloy |
| 3 | Rubber Insert: Synthetic Rubber |
| 4 | Bolt, Nut, Cotter Pin |
Type 2
| 1 | Stainless Steel Band (1.2m) |
| 2 | Stainless Steel Base: 1 pc |
| 3 | Rubber Insert: Synthetic Rubber |
| 4 | Housing: Aluminum Alloy |
| 5 | Bolt, Nut, Washer, Spring Washer: 1 Set |
2. Features
| Simple structure, easy installation, and lower cost |
Applications
| Recommended Use | Poles or towers with span less than 100m and line angle less than 15° |
4. Technical Data
| RTS | Greater than 20 kN |
| Recommended Span Length | 100m |
| SN | Cable Diameter (mm) | Armor Rods (mm) | Anchor Shackle |
|---|---|---|---|
| 1 | 9.0 – 12 | 0 | U-5 |
| 2 | 12 – 14 | 0 | U-5 |
| 3 | 14 – 16 | 0 | U-5 |
| 4 | 16 – 18 | 0 | U-5 |
Ask a question
Questions & answers
0 question(s)No questions yet. Be the first to ask!
0.0
5★
0
4★
0
3★
0
2★
0
1★
0
Write a review
Sign in to reviewCustomer reviews
No reviews yet. Be the first to review this product.
No videos for this product yet
Once videos are added, you’ll see them here as a gallery.
Related Products
Cable Tray - OFC
Rs 2,363
Rs 2,335
.jpg)
Round Cutter Slitter
Rs 4,181
Rs 4,132
Fiber Cutter
Rs 1,432
Rs 1,422
Fiberglass duct rodder
Rs 77,000
Rs 76,500
.jpg)
ADSS T Clamp
Rs 358
Rs 356
Spiral PVC Bird Diverter for Conductor
Contact for price
Longitudinal Sheath Cable Slitter SI-01
Rs 4,779
Rs 4,721
Armored Cable Sheet Cutter
Rs 10,800
Rs 10,672

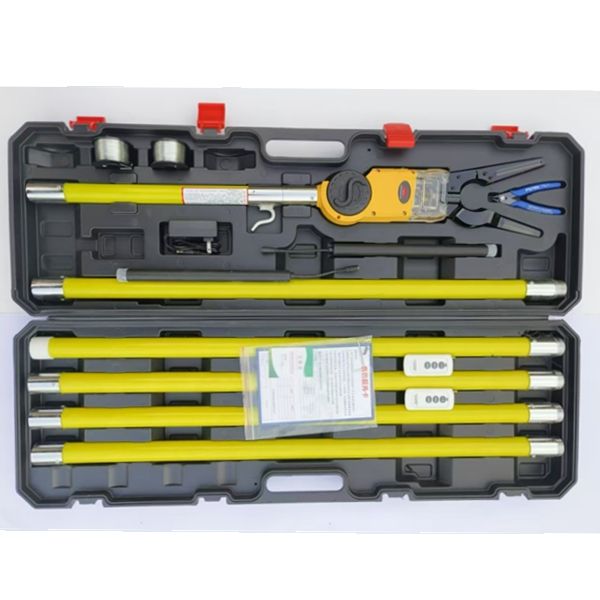

Automatic Optical Cable Attaching Ties Tool
