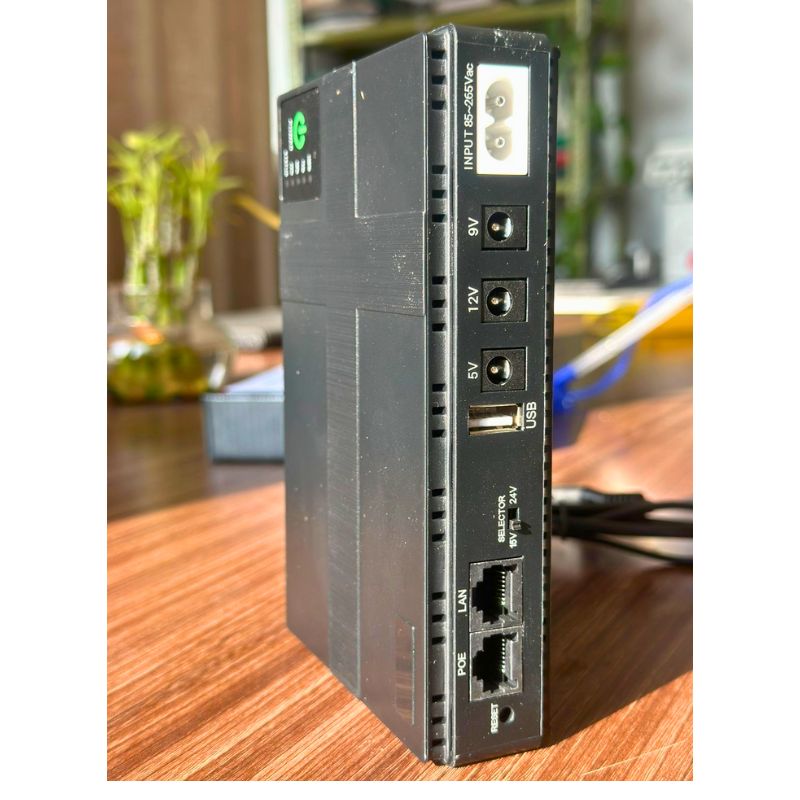

Built-in adapter,wide voltage input,provide customization various plugs Built-in large-capacity lithium-ion batteries,long backup time. Intelligent power management,automatic transfer from AC mode to battery mode With a variety of high-power voltage output ports and strong compatibility
LED indicator light display design,the machine running status is clear Built-in multiple protection circuits, intelligently realize over-charge,over-discharge, over-current,overload,over-temperature and short circuit protection,safer to use
Maximum output power
18W
24W
36W
Output voltage
USB 5V/2A
DC 9V(12V)/1A
DC 5V/2A
POE 15V/0.6A
DC 9V/1A
DC 9V/2A
DC 9V/12V(3A)
POE 24V/0.6A
DC 12V/1A
DC 12V/2A
POE 15V/1A
POE 24V/1A
Efficiency
AC mode:>85%, municipal power mode>85%Battery mode:>90%
Battery specifications
18650
Battery material
Lithium-lon battery/LiFePO4 battery
Battery capacity
2000mah~2600mah
Battery quantity
4
Shell material
ABS
Shell color
BlackWhite (Provide color customization)
Protection function
Over-charge,over-discharge,over-current,overload,over-temperature and short circuit protection
Work temperature
0-40
Storage temp
-10-70
Relative humidity
10%-90%RH
Altitude
<3000m
Noise
<30db
Product size
160*105*33mm
Package size
180*160*37mm
Net weight
0.38kg
0.4kg
0.39kg
0.41kg
0.42kg
Gross weight
0.51kg
0.53kg
0.5kg
0.52kg
0.55kg
0.56kg
