Fusion Splicer Fiberfox Mini
-2%
Rs
360,000
.00
M.R.P.: Rs 368,000.00
Exclusive of all taxes
Rs 360,000.00
-2%
M.R.P. Rs 368,000.00
Excl. taxes
| Min. Order | Unit Price |
|---|---|
| 1 Piece | Rs 360,000.00 |
Trade Assurance
Built-in order protection
In Stock
FREE Delivery on eligible orders
Select a city to check delivery
Supplier Info
D-TECH
Verified Supplier
4.8 / 5.0 Response Rate
7-Day Returns
if defective or damaged
if defective or damaged
Warranty
Seller warranty (if applicable)
Seller warranty (if applicable)
Secure Payment
Multiple options available
Multiple options available

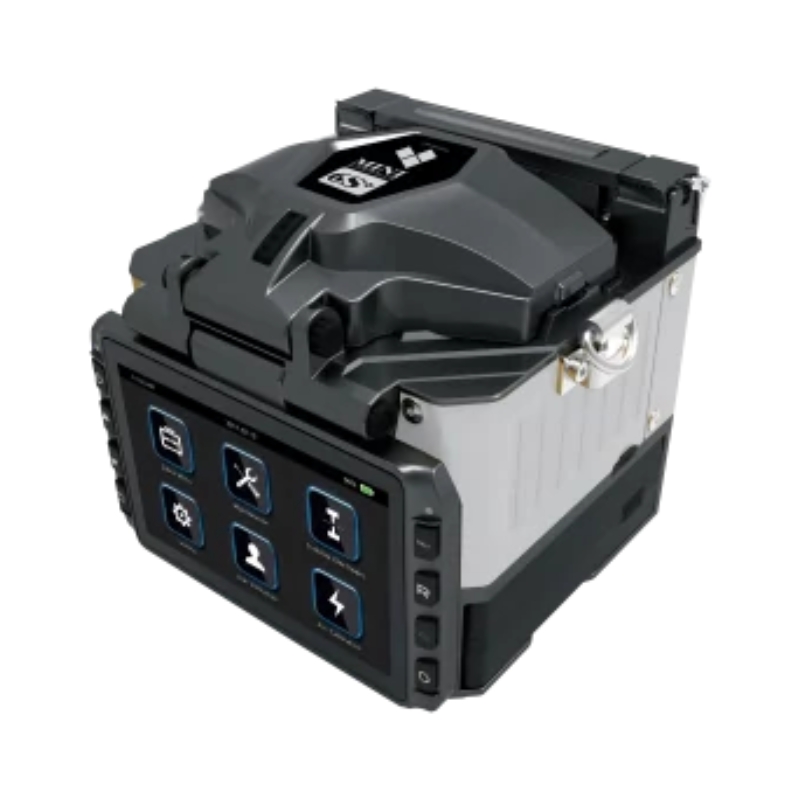

FiberFox Mini 6S+ Fusion Splicer
The FiberFox Mini 6S+ is a compact core alignment fusion splicer using AOCAT technology for precise fiber alignment. It is designed for FTTH, ISP, and field applications with fast splicing speed and rugged performance.
Splicing Performance
| Parameter | Specification |
|---|---|
| Alignment Method | Core Alignment (AOCAT Technology) |
| Splice Loss | SM: 0.02 dB, MM: 0.01 dB, DS/NZDS: 0.04 dB |
| Return Loss | ≥ 60 dB |
| Splicing Time | Quick: 6 sec / Auto: 10 sec |
| Splicing Modes | 166 modes (Pre-set: 38 / User: 128) |
| Attenuation | 0.1 ~ 20 dB adjustable |
Fiber Compatibility
| Parameter | Specification |
|---|---|
| Fiber Type |
SM (G.652 / G.657) MM (G.651) DS (G.653) NZDS (G.655) |
| Cladding Diameter | 80 – 150 μm |
| Coating Diameter | 100 – 3000 μm |
| Cleave Length |
<250 μm: 10–16 mm >250 μm: 16 mm |
| Sleeve Length | 20 – 60 mm |
Hardware & Display
| Parameter | Specification |
|---|---|
| Display | 4.3” Color LCD (Touch Screen) |
| Magnification | 320× (Single) / 320× (Dual) |
| Camera | Dual CCD Camera with LED illumination |
| Data Storage | 10,000 splice records / 2,000 images |
| Interface | USB (Mini-B) |
Power & Environment
| Parameter | Specification |
|---|---|
| Battery | Li-ion 5200 mAh, approx. 300 cycles |
| Power Supply | AC 100–240V / DC 12.6V |
| Operating Condition |
Altitude: 0–5000m Temperature: -10°C to +50°C Humidity: 0–95% RH Wind: ≤15 m/s |
| Storage Condition |
Temperature: -20°C to +60°C Humidity: 0–95% RH |
| Dimensions | 124 × 123 × 138 mm |
| Weight | 1.5 kg (with battery) |
