Fusion Splicer Fiberfox Mini
6SI
Variant Specifications
Technology:
Warranty:
Product size:
Weight:
Payment Facility:
More Details:
Delivery Lead Time:
Origin:
5C+
4S+
6S+
Rs 1.00

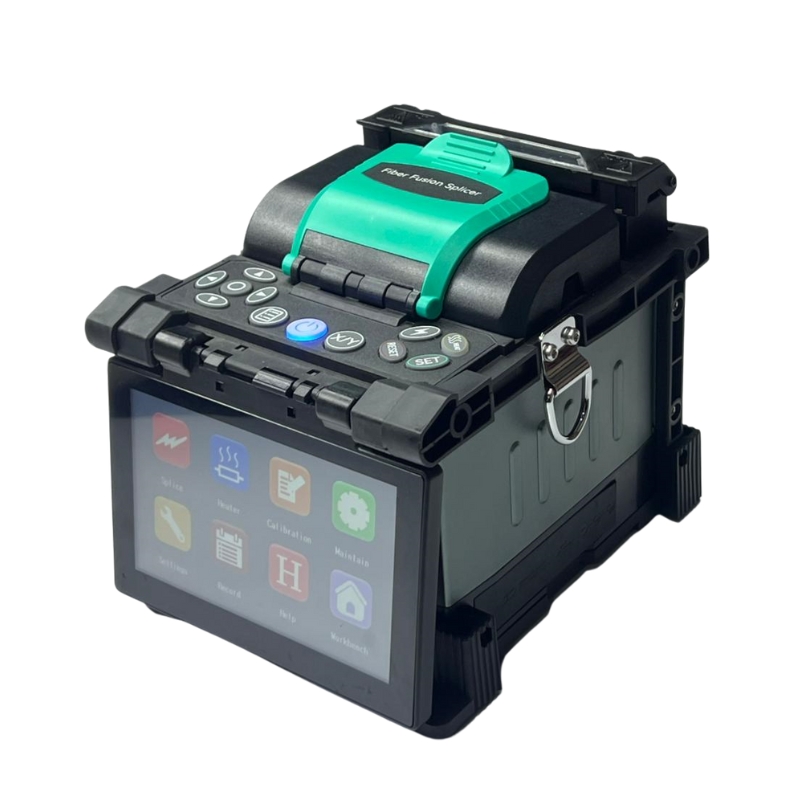

FiberFox Mini 6SI Fusion Splicer
The FiberFox Mini 6SI is a compact core alignment fusion splicer using DCA (Digital Core Alignment) technology. It delivers stable, low-loss splicing performance with fast operation, making it ideal for FTTH, ISP, and field fiber installation.
Splicing Performance
| Parameter | Specification |
|---|---|
| Alignment Method | Core-to-Core Alignment (DCA System) |
| Splice Loss | SM: 0.01 dB, MM: 0.01 dB, DS/NZDS: 0.04 dB, G.657: 0.02 dB |
| Return Loss | ≥ 60 dB |
| Splicing Time | 7 sec (Quick) / 9 sec (Average) |
| Splicing Programs | 100 Programs |
| Electrode Life | ≥ 3,500 arcs |
Fiber Compatibility
| Parameter | Specification |
|---|---|
| Applicable Fibers | SM (G.652 / G.657), MM (G.651), DS (G.653), NZDS (G.655) |
| Fiber Types Supported | 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, flat indoor cable |
| Cladding Diameter | 80 – 150 μm |
| Coating Diameter | 100 – 1000 μm |
| Cleave Length |
<250 μm: 8–16 mm >250 μm: 16 mm |
| Sleeve Type | 40mm, 60mm, SOC connector |
Heating & Storage
| Parameter | Specification |
|---|---|
| Heating Programs | 30 Programs |
| Heating Time | 14 – 18 sec |
| Data Storage | Up to 2,000 splice records & 2,000 images (expandable to 10,000) |
Hardware & Power
| Parameter | Specification |
|---|---|
| Display | 4.3” Color LCD (Touch Screen) |
| Camera | Dual CMOS Camera |
| Magnification | 150× (XY), 300× (X/Y) |
| Battery | Approx. 200 cycles per battery (400 cycles with dual battery) |
| Power Supply | AC 100–240V / DC 9–14V |
| Interface | USB 2.0 (Mini-B) |
| Dimensions | 124 × 123 × 130 mm |
| Weight | 1.77 kg (with battery) |
| Operating Condition | 0–5000m, -10°C to +60°C, 0–95% RH, wind ≤15 m/s |
| Storage Condition | -40°C to +80°C, 0–95% RH |
| Proof Test | 1.96 – 2.25 N |
