Tumtec Fusion Splicer
The Tumtec V6 is a high-performance core-to-core alignment fusion splicer designed for FTTH, backbone, and ISP field operations. It offers fast splicing, intelligent calibration, and stable performance in harsh environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | All series |
| Dimensions |
130 × 170 × 170 mm (without bumper) 140 × 170 × 176 mm (with bumper) |
| Weight | 2.23 kg (with battery) / 1.85 kg (without battery) |
| Fiber Count | Single Fiber |
| Applicable Fibers | SM (G.652/G.657), MM (G.651), DS (G.653), NZDS (G.655) |
| Compatible Cable | 0.25 – 3.0 mm indoor cable |
| Cleave Length | 8 – 16 mm |
| Cladding Diameter | 80 – 150 μm |
| Splicing Modes | 41 preset, max 100 modes |
| Heating Modes | 5 preset (20/30/40/50/60mm), max 100 modes |
| Splice Loss | SM: 0.02 dB, MM: 0.01 dB, DS/NZDS: 0.04 dB |
| Return Loss | ≥ 60 dB |
| Splicing Time | 6 sec (Quick Mode) |
| Heating Time | 13 sec (quick), 30 sec (typical) |
| Storage | 20,000 records & 200 images |
| Display | 4.3” high-resolution touchscreen |
| Magnification | 500× (X/Y/XY view) |
| Battery | 5200 mAh, approx. 250 splice & heat cycles |
| Power Supply | AC 100–240V / DC 12–15V |
| Operating Condition | 0–5000 m, -10°C to +50°C, 0–95% RH, wind ≤15 m/s |
| Storage Condition | -40°C to +80°C, 0–95% RH |
| Calibration | Automatic arc calibration (temperature & pressure compensation) |
| Electrode Life | 5000 arcs |
| Interface | USB 2.0 (Mini USB) |
Ask a question
Questions & answers
0 question(s)No questions yet. Be the first to ask!
0.0
5★
0
4★
0
3★
0
2★
0
1★
0
Write a review
Sign in to reviewCustomer reviews
No reviews yet. Be the first to review this product.

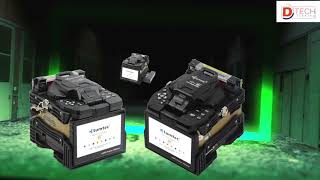

Latest Fusion Splicer V9+ (Core to Core)
Latest Fusion Splicer machine V9+

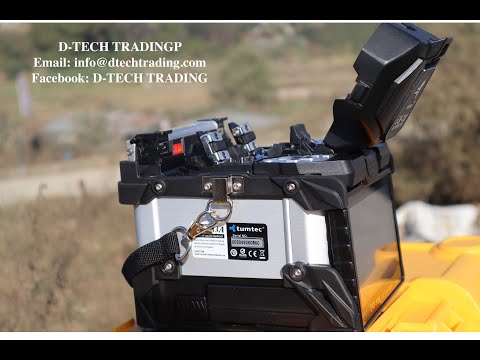

Unboxing of Optical Fusion Splicer 83A in Nepal

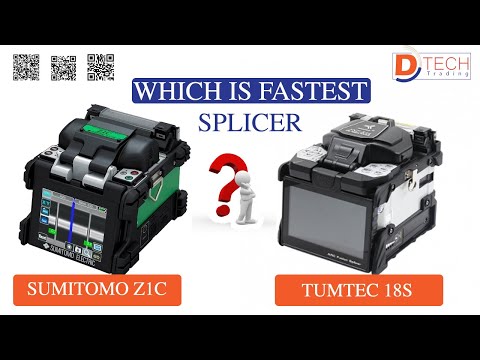

WHICH SPLICER CAN SPLICE FASTEST || SUMITOMO Z1C OR TUMTEC 18S || NEPAL || D-TECH TRADING

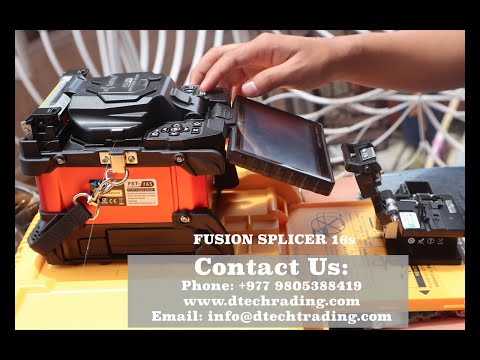

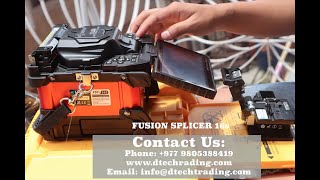

Fusion Splicer 16S/18S in Nepal

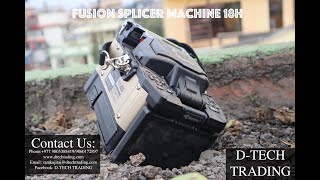

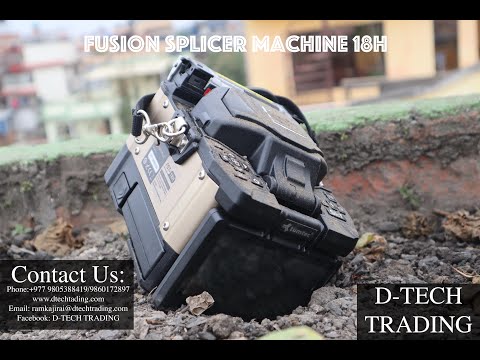

Fusion Splicer 18H in Nepal

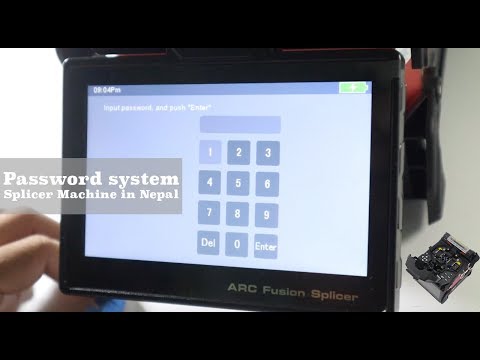

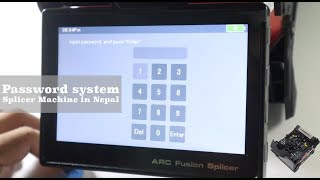

Password system of Fusion Splicer 18S
High Splice Loss? Here are the common reasons!

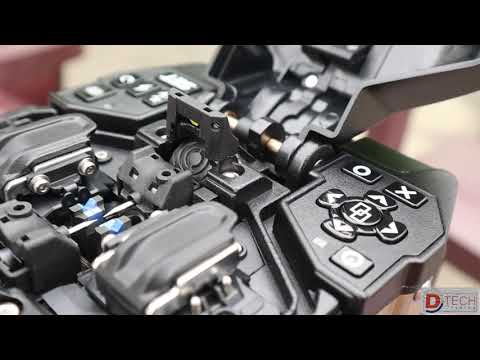

Best Fusion splicer machine in Nepal
