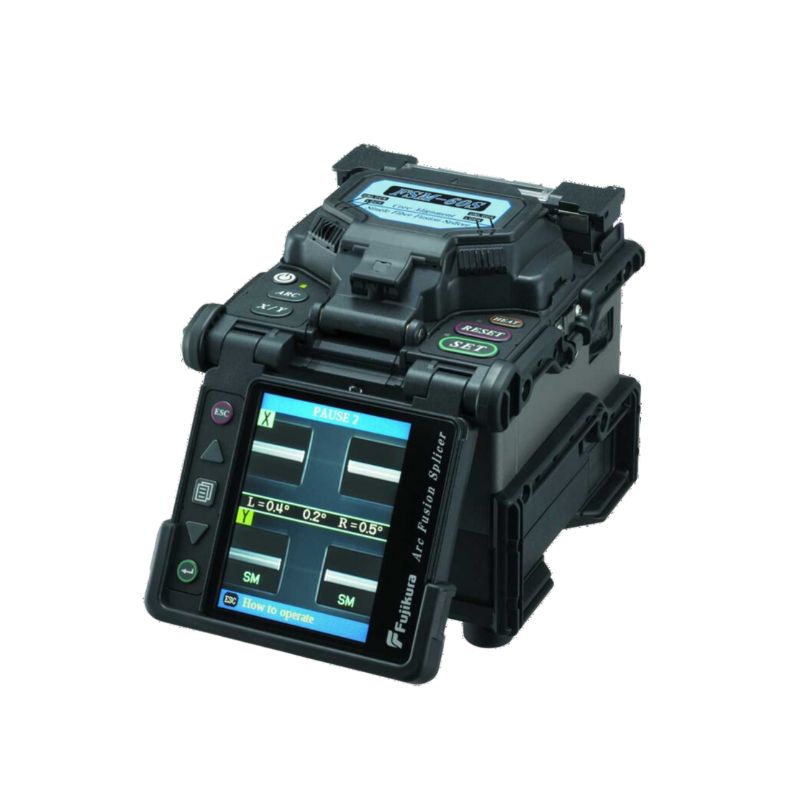

Fujikura Fusion Splicer
The Fujikura 80S is a high-performance core alignment fusion splicer designed for precision fiber splicing. It offers fast splicing speed, low splice loss, and reliable performance for telecom, FTTH, and backbone network deployments.
Fiber Compatibility
| Item | Specification |
|---|---|
| Applicable Fibers | SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), BIF (G.657) |
| Fiber Count | Single Fiber |
| Fiber Diameter | Cladding: 80–150 μm, Coating: 100–3000 μm |
| Cleave Length | 5–16 mm |
Splicing Performance
| Item | Specification |
|---|---|
| Splicing Modes | Total 100 modes |
| Splice Loss | SM: 0.02 dB, MM: 0.01 dB, DS/NZDS: 0.04 dB |
| Return Loss | > 60 dB |
| Splicing Time | 7 sec (Fast), 10 sec (Auto), 15 sec (Standard SM) |
| Loss Estimation | Available |
Heating
| Item | Specification |
|---|---|
| Heating Modes | 30 modes (built-in heater) |
| Heating Time | Typical 14 sec |
| Sleeve Support | 60mm, 40mm, Fujikura FPS01 |
Storage & Functions
| Item | Specification |
|---|---|
| Storage Capacity | 2000 splice data / 100 images |
| Attenuation Splice | 0.1–15 dB adjustable |
| Tension Test | 1.96 – 2.25 N |
Display & View
| Item | Specification |
|---|---|
| Display | 4.73-inch color LCD |
| Magnification | 320× (single), 200× (dual axis) |
Power
| Item | Specification |
|---|---|
| Power Supply | AC 100–240V / DC 10–15V |
| Battery | 14.8V BTR-09 |
| Splice Cycles | Approx. 200 cycles |
Environment
| Item | Specification |
|---|---|
| Operating | 0–5000m, -10°C to +50°C, 0–95% RH |
| Storage | -40°C to +80°C |
| Electrode Life | 3000 arcs |
Ask a question
Questions & answers
0 question(s)No questions yet. Be the first to ask!
0.0
5★
0
4★
0
3★
0
2★
0
1★
0
Write a review
Sign in to reviewCustomer reviews
No reviews yet. Be the first to review this product.

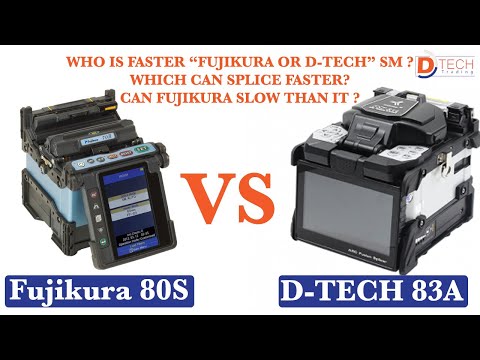

Fujikura Vs D-TECH Tumtec

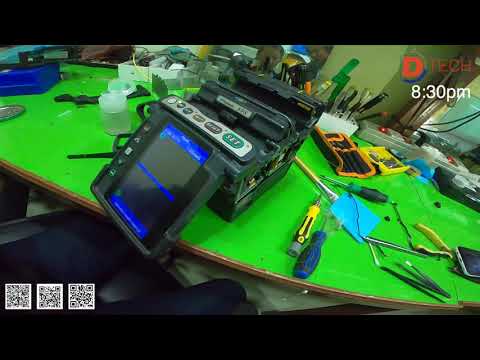

Do D-TECH can Repairing Fujikura and other brands
