Rs 364,000.00

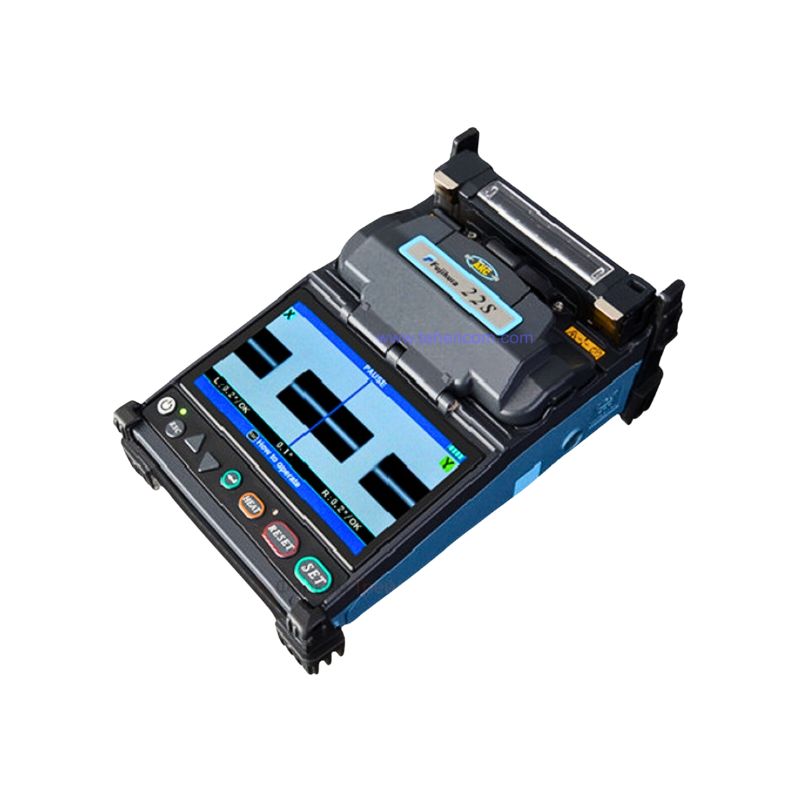

Fujikura 22S Fusion Splicer
The Fujikura 22S is a compact and durable fusion splicer designed for FTTH and access network installations. It delivers reliable performance, fast splicing, and strong environmental resistance for field operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Fibers | SM (G.652/G.657), MM (G.651), DS (G.653), NZDS (G.655) |
| Cladding / Sheath Diameter | 125 μm / up to 3 mm with sheath clamp |
| Cleave Length | 5 – 16 mm |
| Splice / Heating Modes | 100 splice modes / 30 heating modes |
| Splice Loss | SM: 0.03 dB, MM: 0.01 dB, DS/NZDS: 0.05 dB |
| Return Loss | ≥ 60 dB |
| Splicing Time | 9 sec (SM Fast), 11 sec (SM Auto) |
| Heating Time | 24–25 sec (FP-03), 16–19 sec (Slim sleeves) |
| Storage Capacity | Last 10,000 splice results |
| Viewing & Magnification | Dual CMOS cameras, 4.73” LCD, 132× / 200× |
| Proof Test | 1.96 – 2.25 N |
| Protection Sleeves | 60 mm, 40 mm, Fujikura micro sleeves |
| Battery Capacity | Approx. 200 splice & heat cycles (BTR-11) |
| Electrode Life | Approx. 5,000 splices |
| Dimensions | 120 × 189 × 72 mm |
| Weight | Approx. 1.14 kg (with battery) |
| Operating Condition |
Altitude: 0–5000 m Temperature: -10°C to +50°C Humidity: 0–95% RH (non-condensing) Wind: up to 15 m/s |
| Protection Features |
Shock: 76 cm drop Dust: 0.1–500 μm particles (IP5X) Rain: 10 mm/hr for 10 min (IPX2) |
| Other Features | PC software upgrade & data management |
