Rs 390,000.00

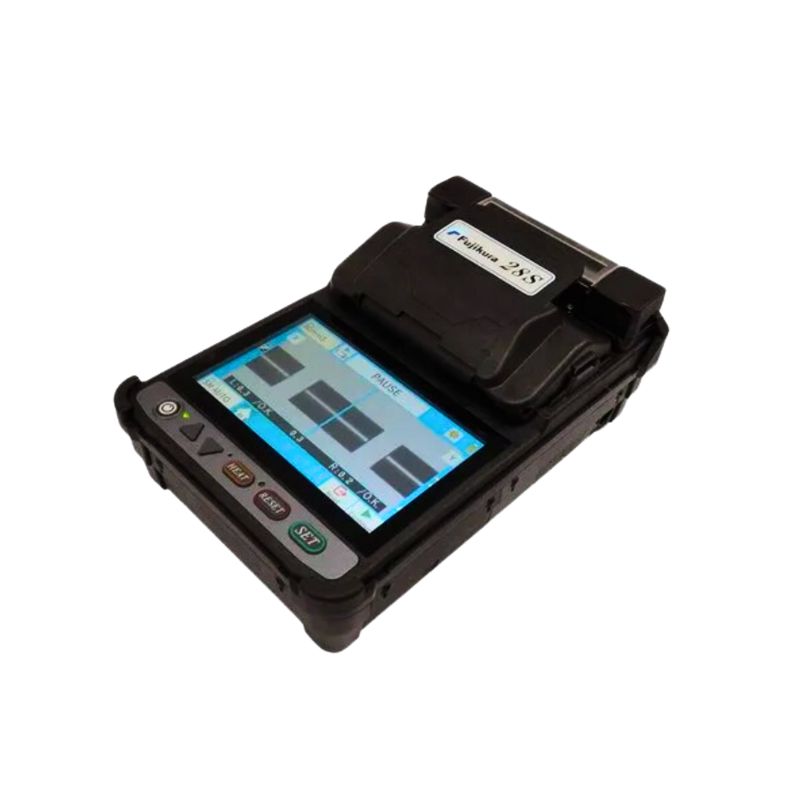

Fujikura 28S Fusion Splicer
The Fujikura 28S is a compact and reliable core alignment fusion splicer designed for FTTH, access networks, and field installations. It offers fast splicing, durable construction, and stable performance for daily fiber optic operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FSM-28S |
| Product Type | Fusion Splicing Machine |
| Applicable Fibers | SM (G.652/G.657), MM (G.651), DS (G.653), NZDS (G.655) |
| Cladding Diameter | 125 μm / up to 3 mm with sheath clamp |
| Cleave Length | 5 – 16 mm |
| Display | 4.7 inch color LCD |
| Splicing Time | 6 sec (SM Fast), 9 sec (SM Auto) |
| Heating Time | 25 sec (FP-03 sleeve, 250 μm) |
| Splicing Modes | Total 100 modes |
| Storage Capacity | Up to 10,000 splice results |
| Splice Loss | SM: 0.03 dB, MM: 0.01 dB, DS/NZDS: 0.05 dB |
| Return Loss | ≥ 60 dB |
| Viewing & Magnification | 2-axis CMOS cameras, 132× (normal), 200× (after splicing) |
| Proof Test | 1.96 – 2.25 N |
| Protection Sleeve | 60 mm, 40 mm, Fujikura micro sleeves |
| Battery Cycles | Approx. 200 splice & heat cycles (BTR-11) |
| Electrode Life | Approx. 5,000 splices |
| Operating Condition |
Altitude: 0–5000 m, Temperature: 10°C to 50°C, Humidity: 0–95% RH (non-condensing), Wind: up to 15 m/s |
| Protection Features |
Shock: 76 cm drop Dust: IP5X Rain: IPX2 (10 mm/hr, 10 min) |
| Software | PC software upgrade & data management |
| Dimensions | 131 × 210 × 79 mm |
| Weight | Approx. 1.3 kg (including battery) |
| Interface | USB 2.0 (Mini-B) |
