Fusion Splicer Fujikura

Product Specification

Brand	Fujikara
Model No.	80S
Return Loss	Less than 60 dB
Tension Test	1.96 to 2.25 N
Dimensions	146WX159DX150H (mm) excluding rubber foot
Splicing Mode	Total 100 modes
Splicing Time	Typical 7s with SM FAST, 10s with SM AUTO and 15s with AUTO modes with standard SM(ITU-T G.652)
Tube Heating Time	Built-in tube heater with 30 heating modes / Typical 14s with Fujikura FP-03
Applicable Protection Sleeve	60mm, 40mm and Fujikura FPS01 series
Storage Of Splice Result	Splice data-2000, Image data-100
Operating Condition	0 to 5,000m above sea level, 0 to 95%RH and -10 to 50 Degree C and up to 15m/s wind velocity
Storage Condition	0 to 95%RH and -40 to 80 Deg C respectively. Battery -20 to 30 Deg C for long term
Weight	2.5kg with AC adaptor ADC-18, 2.7kg with battery BTR-09
View Display	Two CMOS cameras and 4.73inch color LCD monitor
Fiber View And Magnification	X / Y (320X magnification), or both X and Y simultaneously (200X magnification)
Number Of Splice Cycle With Battery	Typical 200 cycles (splice / tube heat) with BTR-09
Electrode life	3000 arc-discharges
Terminals	USB 2.0(Mini-B) connector for PC communication. 6-pin Mini-DIN connector for HJS power supply



Product Description

Owing to our in-depth knowledge of this domain, we are specialized in providing Fibre Optic Fujikura Fusion Splicer Machine.

Description:

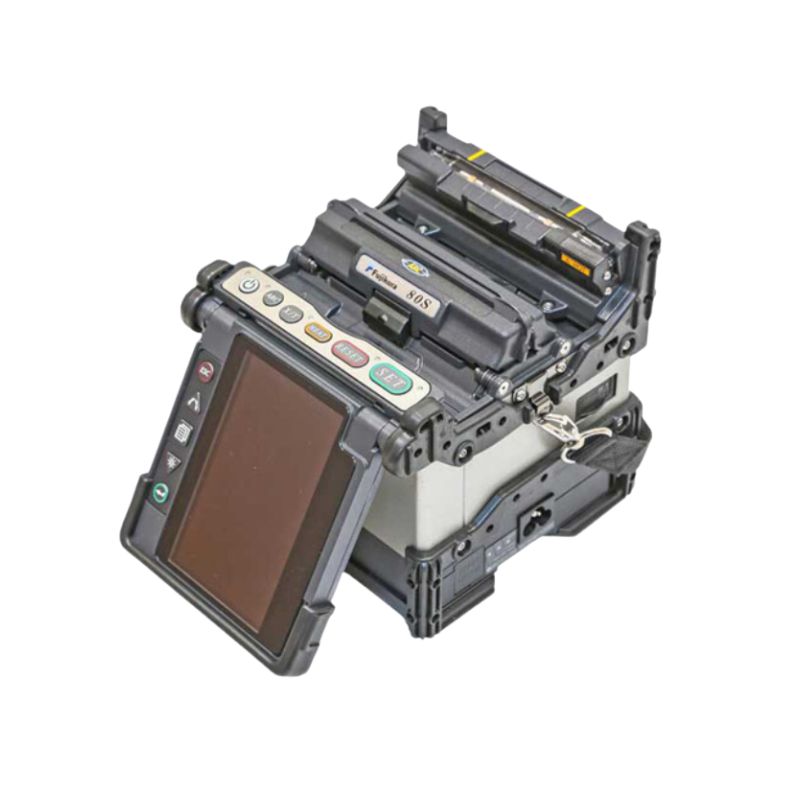

Fujikura 80S is the latest single fiber core alignment fusion splicer covering various splicing needs in those fields with a series of innovative features, such as automated wind protector / tube heaters, 7-second splicing and 14-second tube heating, ruggedized body, improved carrying case and etc. They are all for great splicing efficiency.

Features:

• Fully automatic operation - Splicing time < 7s, heating time < 14s.
• Extended electrode life - > 3000 times.
• Automated wind-protector / tube heater for quick operation - World's quickest splicing /
• heating times by reducing splicing steps.
• Shock / dust / resistance features - World's first 6-direction 30 inch drop proof test,
• tough in harsh conditions.
• Wide color LCD monitor - High resolution 4.7 inch monitor with better visibility under
• the sun.
• Powerful Li-ion battery - 200 splice / heating per full battery charge.
• Pre-installed user guidance manual - From basic operation guidance to trouble
• shooting procedure.
• Innovative carrying case design with detachable working table.

Specifications:

• Applicable type of fibers: SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655) and other single mode fibers including ITU-T G.657 fibers
• Fiber count: Single
• Applicable fiber dimensions: Cladding diameter : 80 to 150µm, Coating diameter : 100 to 3000µm
• Fiber setting and cleaved length: Sheath clamp C (Standard) : For coating dia. 100µm-3000µm (5 to 16mm cleave) Sheath clamp D (option) : For coating dia. 900µm loose tube (5 to 16mm cleave) Fiber holder (option) : FH-60-250, FH-60-900 (5-13mm cleave)
