Fusion Splicer Swift

Brand: SWIFT SKU: #951

0.0

0 ratings

Available options

K33

KF4A

K11

KF4

Category: Optical Fusion Splicer & accessories

Request a Quote

Ships from D-TECH

Deliver to

Select a city to check delivery

Returns: 7-day replacement

Warranty: Seller warranty (if applicable)

Need help? Customer Service

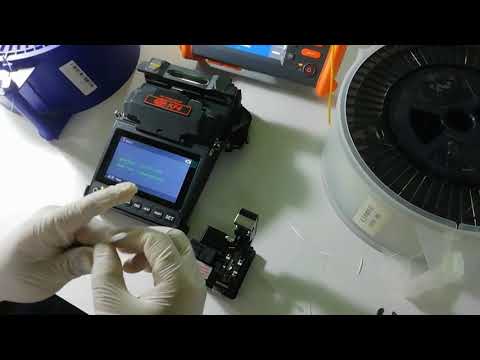

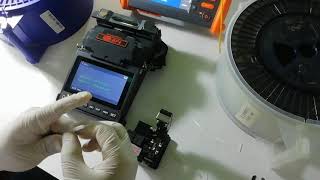

The Swift KF4A is a highly advanced, All-In-One active cladding alignment fusion splicer, designed to perform the major 5 functions systematically: stripping, cleaning, cleaving, splicing and protecting. The Swift KF4A is the best fit for fusion splicing and fusion splice-on connectors (SOC) of FTTx network applications. It eliminates fatal issues common with conventional mechanical connectors including low quality, weak durability and high maintenance costs. The Swift KF4A fusion splicer coupled with our fusion splice-on connectors provides customers the best ROI.

Rotating blade life allows up to 77,000 cleaves
Integrated 5 functions in one unit (stripping, cleaning, cleaving, splicing, protecting)
The fusion splicer with All-In-One system provides the best workability onsite and in a limited work space
No scratches on fiber by thermal stripping
Compatible with Fusion Splice-on Connector (SOC) in accordance with the industry standards
Ideal for Enterprise, Datacenter, Broadband and FTTH network applications

Category	Description
Fiber alignment	IPAAS Core Alignment
Applicable type of fibers	SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); SM (G.657 A1,A2/B2,B3); SM (G.654 E)
Fiber count	Single fiber
Applicable fiber dimensions	Cladding diameter: 80~150㎛, Coating diameter: 100㎛~3mm
Fiber setting and cleaved length	250㎛,: 5-16mm; 900㎛: 8-16mm
Splicing modes	Splice mode: 300, Heat mode: 100
Typical splice loss	SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss	> 60dB (typical)
Splicing time	Typical 6 sec. (quick mode)
Sleeve heating time	9 sec. (IS-45 sleeve, IS-45 mode), 13 sec. (IS-60 sleeve, IS-60 mode)
Applicable protection sleeve	32mm, 40mm, 60mm (fiber)/28mm or 32mm (connector)
Storage of splice result	The last 10,000 results to be stored in the internal memory (image 10,000 results) External SDHC memory slot
Tension test	1.96N ~ 2.25N
Operating condition	Altitude: 0-5,000m above sea level, Temperature: -10ºC ~ 50ºC (14ºF ~ 122ºF); Humidity: 0~95%; Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
Storage condition	Temperature: -40ºC~ 80ºC (-40ºF ~ 176ºC); Humidity: 0~95%
Dimension	130(W) x 158(L) x 138(H) mm (excluding bumper)
Weight	2.25kg (including battery)
Viewing method and display	Two CMOS cameras and 127mm (5.0 in) color LCD monitor with electrostatic touch screen
Fiber view and magnification	X/Y: 200X; Max: 400X
Power supply	100~240V AC
No. of splice cycles with battery	Typical 331 cycles (6000mAh)
Electrode life	Up to 18,000 splices
Blade life	Up to 77,000 cleaves
Terminals	USB
