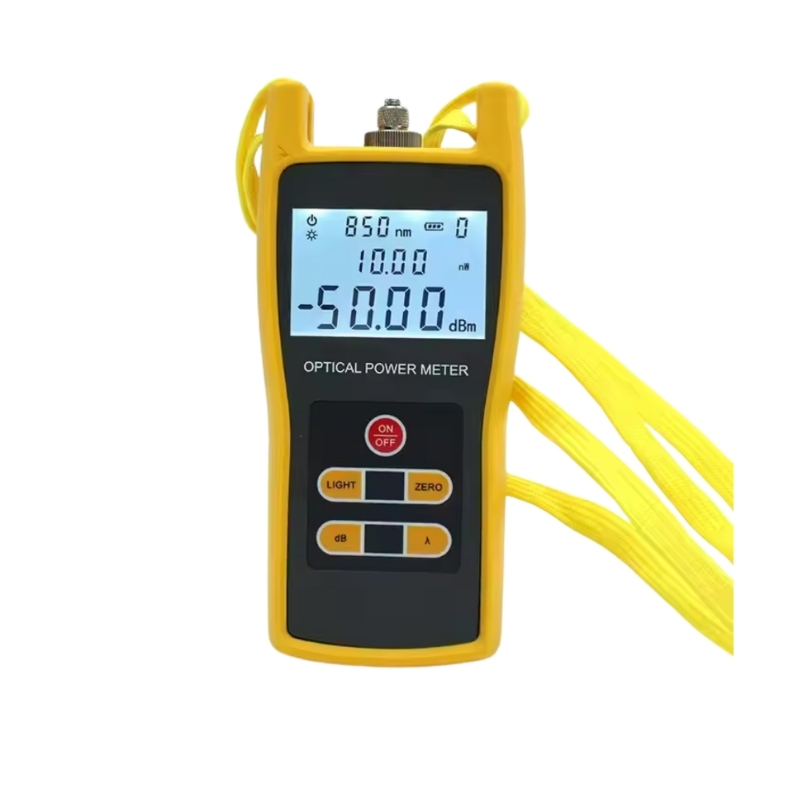

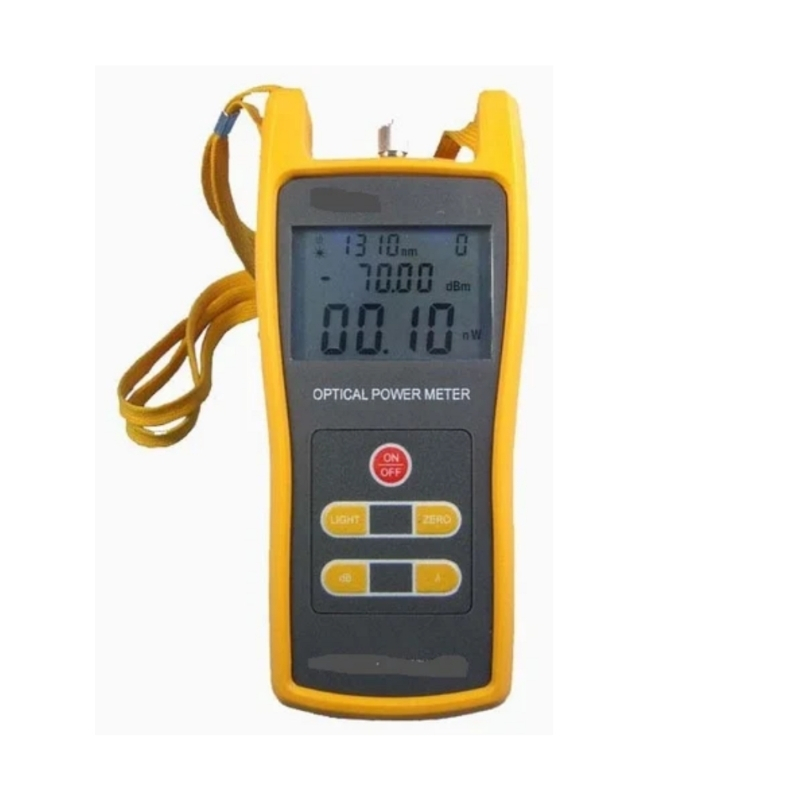

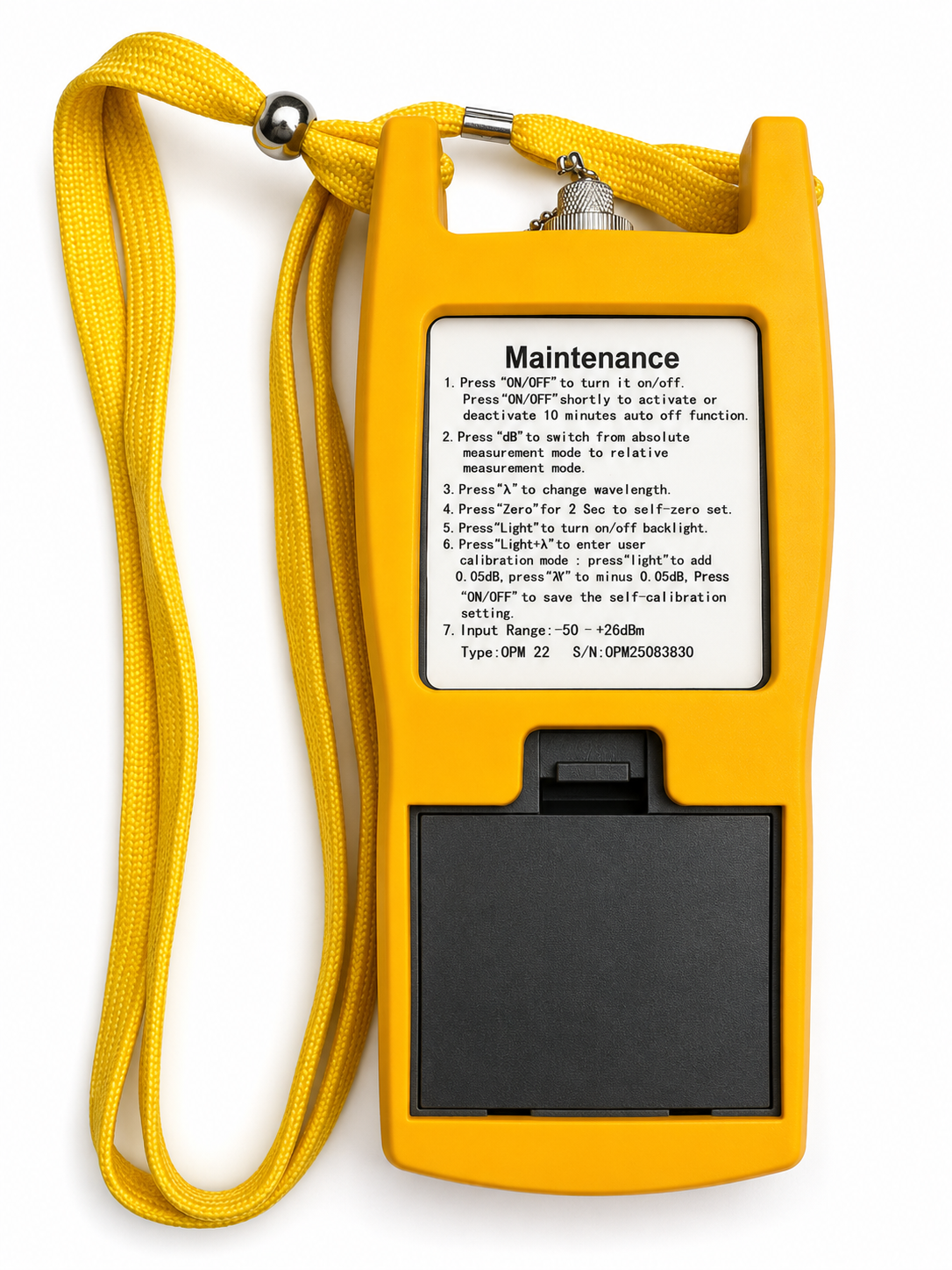

Power Meter DT-22 (Yellow)
  1. Overview

D-TECH design DT-OPM-22 series optical power meter to meet the high demand. It integrates the handheld optical power meter and the intelligent optical power meter in one unit.

OPM-22 can be used for the absolute power measurement and relative measurement of the link loss in dB.

Its compact size, friendly operation interface, broad power measurement range, high precision and brand-new user automatic calibration function and high performance in application makes it an ideal tool for optical fiber network.



  1. Specifications



ModelDT-OPM-22DT-OPM-22
Wavelength Range(nm)*1800~1600
Detector TypeInGaAs
Measurement Range(dBm)*2-70~+6-50~+26
Uncertainty *3±0.15dB
AccuracyLinear 0.1% or Nonlinear 0.01dBm
Operating Temperature(℃)-10~+60
Storage Temperature(℃)-25~+70
Auto-off Time(min)10
Operating Time(h)≥130
Battery3 AA1.5V
Weight(g)200
Dimensions(mm)152X74X26



Notes:

  1. Wavelength Range: Specified standard operating wavelength range in which the Power Meter can work properly under certain technical specifications.
  2. Power Measurement Range: The maximum and minimum range in which the Power Meter can work properly.
  3. Uncertainty: Difference between two measurement results that were tested by Power Meter and another Standard Power Meter respectively.
