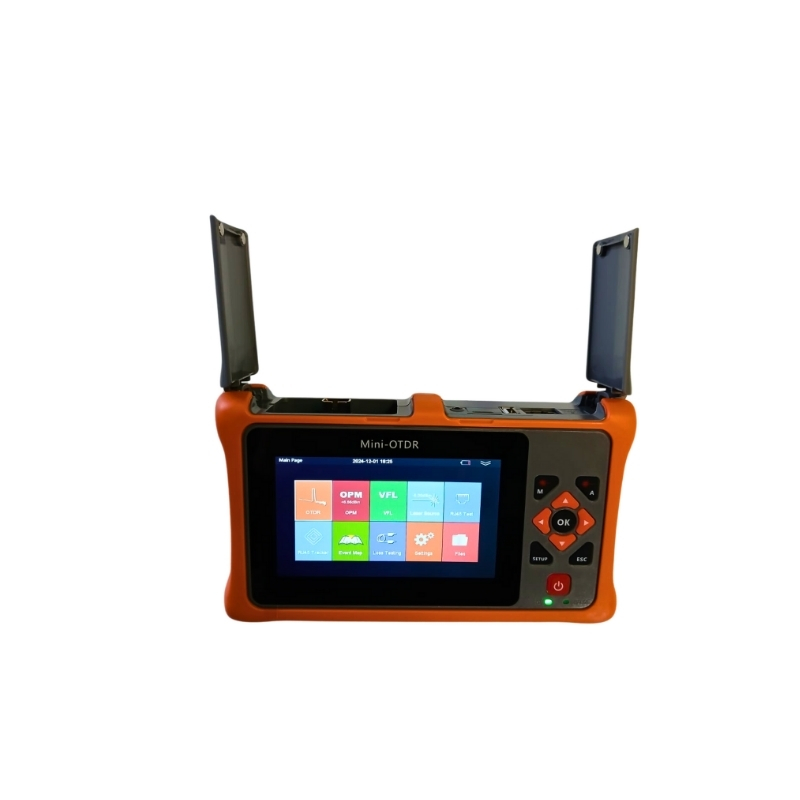

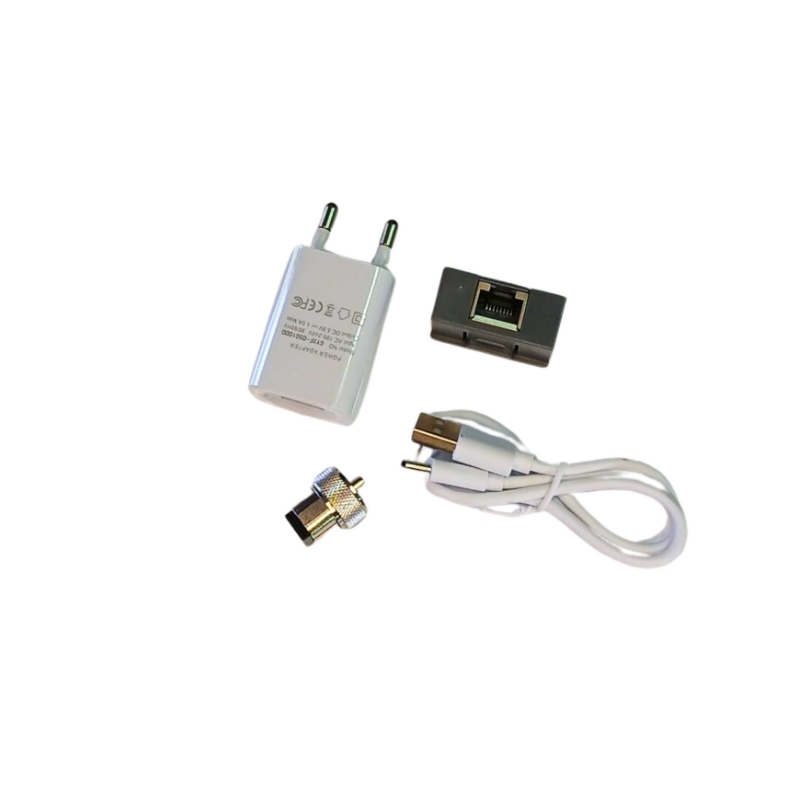

DT-800 Series OTDR



1. OTDR module

2. OPM module

3. VFL module

4. LS module

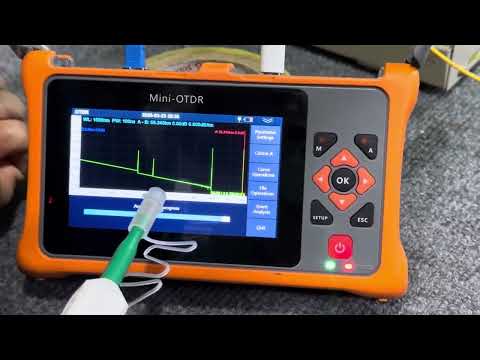

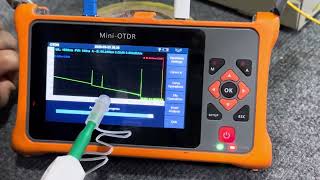

5. Event map

6. RJ45 Test

7. Line Finder（Optional）

8. LOSS Test

9. Flashlight

10. Support for USB drives

11. Supports Type-C charging and data

transmission

12. Support for local storage

13. Support SD card expansion memory



Product Overview

The DT-800 series optical time-domain reflectometer adopts a 4.3 inch color capacitive touch screen, which is easy to operate. It integrates eight functions, including OTDR, event map, stable light source, optical power meter, red light source, network cable sequence testing, line finding, and lighting. Simple parameter settings and intelligent measurement make the operation more simple and efficient. The model is compact and lightweight, convenient to carry. The large capacity battery ensures an 8-hour extended measurement time and a 15-hour extended standby time, providing guarantee for field testing operations.

The DT-800 series OTDR is mainly used to measure the length, loss, average loss, return loss, connection quality, etc. of various fiber optic cables. It has automatic optical protection function to prevent damage to the optical module. The model with a filter can support online testing, with a maximum online optical power of -2dBm. It can be widely used in the engineering construction, fault repair, fiber optic line maintenance, engineering acceptance, development and production of fiber optic communication systems, and other fields.



Product Features

4.3" FTF LCD, Capacitive TP

Minimum Measurement: 2 .5 m

Palm design, compact and lightweight

Large capacity battery, 10 hours

Hidden interface, shock and fall resistant

Multi-function integration: OTDR / LS /VFL/ Network cable test/Flashlight





Product Specification

Module		DT-800
Wavelength		1310/1550±20nm
Dynamic Range		24/22dB
Fiber Type		G.652D
Event Dead Zone		1.5m
Attenuation Zone		7 m
Measuring Range		100m/500m/1km/2km/5km/10km/20km/40km/60km/90km
Pulse Width		5ns/10ns/20ns/50ns/100ns/275ns/500ns/1us/2us/5us/10us
Accuracy		±( 1m+Sampling interval+0.005% X measuring range)
Linearity		±0 .2dB/dB
Sample Points		Maximum sampling points：20000
Sampling Resolution		20cm~8m
Loss Resolution		0 .001 dB
Range Resolution		0 .001m
Refractive Index		1 .0000~2 .0000
Reflection Accuracy		±3d B
File Format		Standard sor file format
Safety Level		Class 3B
Temperature		Ambient temperature：- 10℃~50℃  Storage ambient temperature：-40℃~+70℃
Humidity		0~90%(non condensing)
Size/Weight		Size：175x105x45mm / weight：450g（include battery）
OPM			LS（Only Single Mode）		Other
Wavelength	850/ 1300/ 1310/ 1490/ 1550/ 1625/ 1650nm		Wavelength	OTDR wavelength	VFL	≥10mW
Range	A:-70~+10dBm B:-50~+26dBm		Laser Type	FP - LD	RJ45	Line sequence/line finding
Frequency	270Hz/330Hz/ 1kHz/2kHz		Power	-5dBm±2dB (Adjust)	Battery	5200mAh/3 .7V
Uncertainty	±5%		Uncertainty	±5%	Adapter	USB(Type C)
Connector	Universal:FC/SC/ST		Connector	FC/SC/ST	Memory	Inside≥1000 ,External:SD
