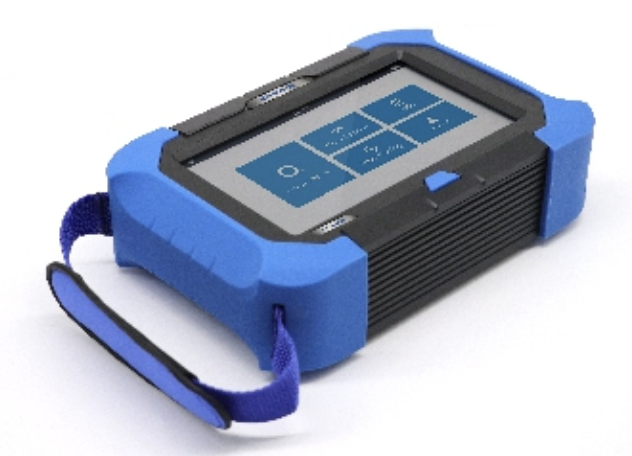

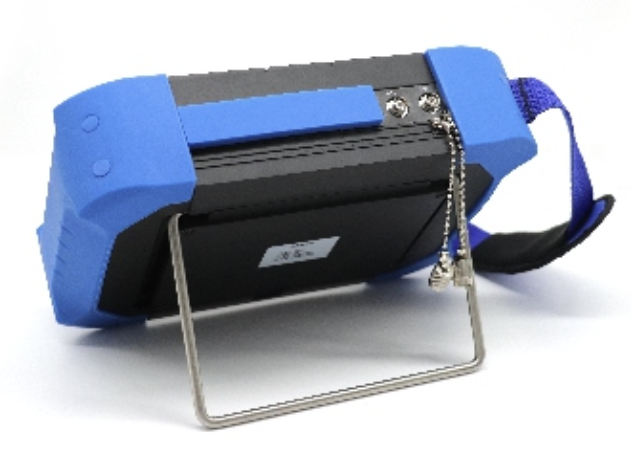

COMWAY Optical Fiber Cable Seeker – CT-201 / CT-202 / CT-204
The COMWAY Optical Fiber Cable Seeker is a professional fiber optic cable identification and fault tracking device designed for complex fiber cable environments. It helps technicians quickly identify the correct optical cable inside manholes, ducts, tunnels, pipelines, and overhead fiber routes without damaging the cable.
Using advanced optical elastic effect technology, the cable seeker detects vibration and knocking signals from fiber cables and converts them into visual waveform and audio alerts. This helps technicians accurately trace and identify the target cable during fiber installation, maintenance, and troubleshooting.
Why Need a Cable Seeker?
In complex fiber optic networks, identifying the correct optical cable can be difficult during installation and maintenance work.
The COMWAY Cable Seeker helps technicians:
- Quickly identify the target optical cable
- Track fiber routes in underground and aerial networks
- Reduce wrong fiber cutting risks
- Locate faults safely without damaging the cable
- Work efficiently inside manholes, tunnels, ducts, and poles
Key Features
- Real-time waveform display
- Real-time audio prompt
- 7-inch LCD touch screen
- APP display support
- Long battery backup (≥12 hours)
- Non-destructive cable identification technology
- Portable and lightweight design
- Suitable for underground and aerial optical cable tracing
Technical Specifications
| Specification | CT-201 | CT-202 | CT-204 |
|---|---|---|---|
| Measurement | Single Fiber Testing (No Loop) | Single Fiber Testing (No Loop) | Single Fiber Testing (No Loop) |
| Wavelength | 1550nm | 1550nm | 1550nm |
| Test Distance | 20km | 40km | 40km |
| Connector at End | PC/UPC | PC/UPC | PC/UPC / Broken Cable |
| Connector on Machine | FC/APC | FC/APC | FC/APC |
| Display | 7-inch LCD Touch Screen | 7-inch LCD Touch Screen | 7-inch LCD Touch Screen |
| Output Mode | Waveform + Audio + APP | Waveform + Audio + APP | Waveform + Audio + APP |
| Battery Capacity | 11.1V, 6400mAh (Continuous Working ≥12 Hours) | ||
| Power Supply | DC 15V / 4A | ||
| Dimensions (H×W×L) | 70 × 148 × 230 mm | ||
| Weight | ≤ 1.5 Kg | ||
| Working Temperature | -10°C to +55°C | ||
| Storage Temperature | -20°C to +70°C | ||
Applications
- Fiber optic cable identification
- Underground fiber cable tracing
- Manhole and duct fiber route detection
- Telecom and ISP maintenance
- Overhead ADSS cable tracing
- Fault location assistance
- Long-distance fiber cable management
