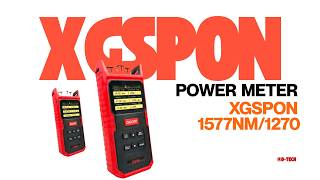

XGS PON Power Meter
Visit the D-TECH Store
-0%
Rs
40,764
.68
M.R.P.: Rs 40,863.68
Exclusive of all taxes
Variation:
XGSPON-DT2100
Rs 40,763.68
-0%
M.R.P. Rs 40,863.68
Excl. taxes
| Min. Order | Unit Price |
|---|---|
| 1 Piece | Rs 40,763.68 |
Trade Assurance
Built-in order protection
In Stock
FREE Delivery on eligible orders
Select a city to check delivery
Supplier Info
D-TECH
Verified Supplier
4.8 / 5.0 Response Rate
7-Day Returns
if defective or damaged
if defective or damaged
Warranty
Seller warranty (if applicable)
Seller warranty (if applicable)
Secure Payment
Multiple options available
Multiple options available
XGS PON Power Meter
Optical Measurement Parameters
| Parameter | 1270 nm | 1310 nm | 1490 nm | 1550 nm | 1577 nm | 1610 nm |
|---|---|---|---|---|---|---|
| Spectral Bandwidth (nm) | 1260 ~ 1280 | 1300 ~ 1320 | 1480 ~ 1500 | 1540 ~ 1560 | 1570 ~ 1581 | 1600 ~ 1620 |
| Optical Isolation | >30 @1310 >40 @1490 >40 @1550 >40 @1577 >40 @1610 |
>30 @1270 >40 @1490 >40 @1550 >40 @1577 >40 @1610 |
>40 @1270 >40 @1310 >35 @1550 >40 @1577 >40 @1610 |
>40 @1270 >40 @1310 >35 @1490 >30 @1577 >40 @1610 |
>40 @1270 >40 @1310 >40 @1490 >30 @1550 >40 @1610 |
>40 @1270 >40 @1310 >40 @1490 >40 @1550 >40 @1577 |
| Measuring Range (dBm) | -40 ~ +10 | -40 ~ +10 | -40 ~ +10 | -40 ~ +20 | -40 ~ +10 | -40 ~ +10 |
General Optical Specifications
| Model Number | DT2100 |
| Probe Type | InGaAs |
| Optical Port | SC/APC (Customized SC/UPC) |
| Measurement Unit | dB / dBm / mW / uW / nW |
| Display Resolution | 0.01 dB |
| Power Uncertainty | ±0.5 dB |
| Linearity | ±0.1 dB / 10 dB |
| Channel Insertion Loss | < 1.5 dB |
| Data Storage | 999 Groups |
Visual Fault Locator (VFL)
| Output Power | 10 mW / 20 mW |
| Connector | 2.5 mm Universal Connector + FC or SC |
| Wavelength | 650 nm |
| Spectral Line Width (20°C) | ±10 nm |
| Fiber Mode | SM / MM |
| Tone Detect | CW, 2 kHz |
General Parameters
| Automatic Shutdown Time | 5 ~ 90 minutes (Adjustable) |
| Power Supply | 5V/2A Power Adapter + 2000 mAh Rechargeable Battery |
| Continuous Working Time | Working Time > 32 hours, Standby Time > 60 hours |
| Working Temperature | -10 ~ +60°C |
| Storage Temperature | -25 ~ +70°C |
| Product Dimension | 76 × 177.5 × 40 mm |
| Product Weight | 0.28 kg |
Notes
| 1 | Working time and standby time are under dark backlight power-saving mode. |
| 2 | Accessory includes a 5V/2A power adapter. |
| 3 | Weight is without batteries. |
