MultiMeter Laser source with OPM
Overview:

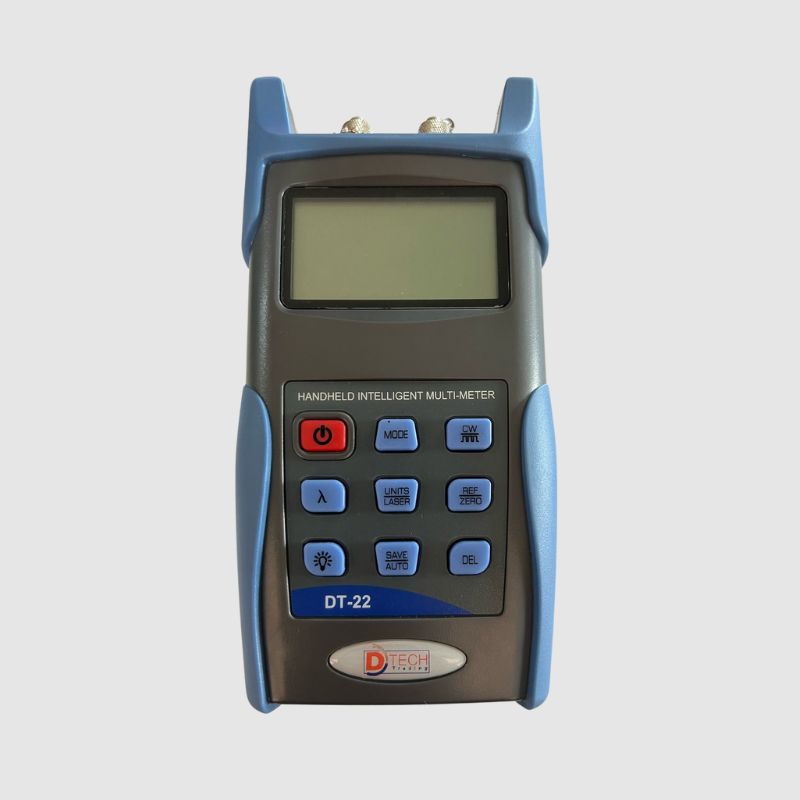

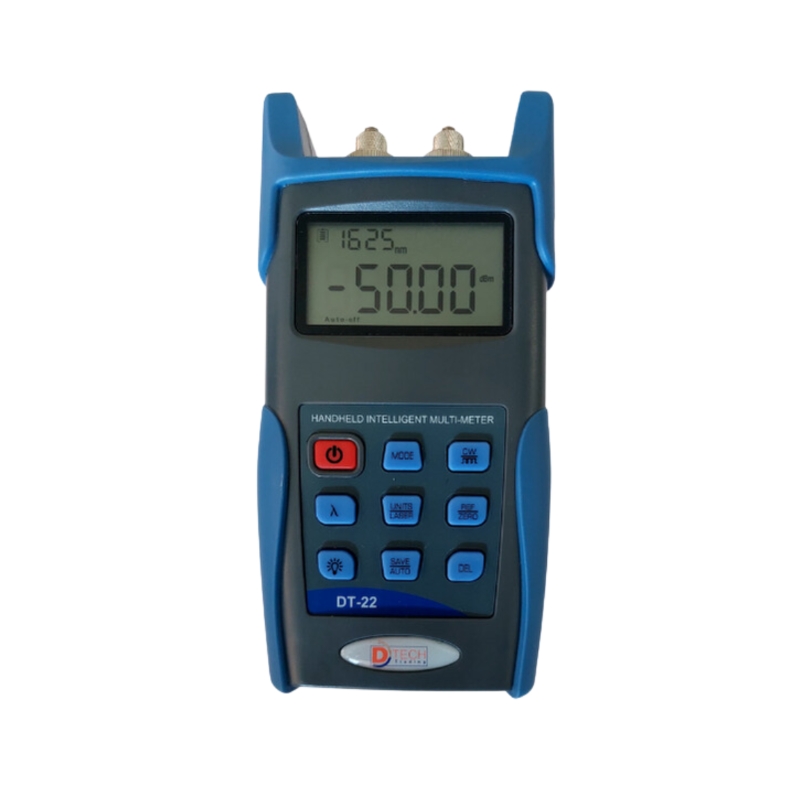

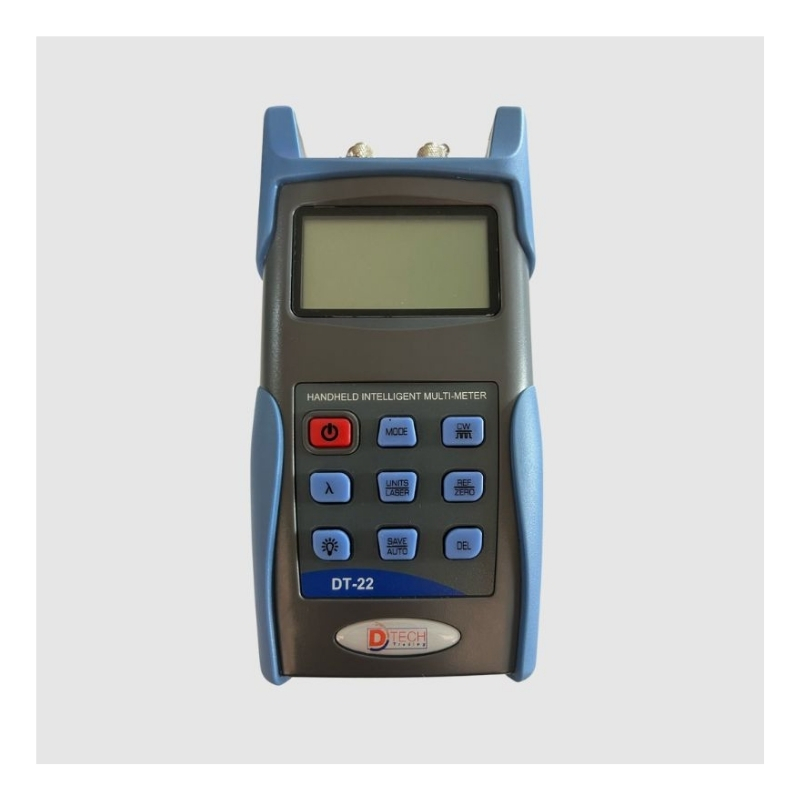

DT-22 is a highly cost-effective optical multimeter offered by the company. It integrates both a power meter and a light source, providing comprehensive functionality. DT-22 is equipped with features for recording, storing, and uploading test data, making it suitable for various applications in fiber-optic line project construction, testing, and maintenance. It finds extensive use in digital data networks, telecommunication networks, and cable television setups.
Key Features:
- Convenient mode switching function for ease of use
- Stable output light for reliable performance
- Automatic switching function for internal source wavelength
- Detection of frequency light for accurate measurements
- USB data communication for storage, uploading, and power supply
- Data storage capacity of up to 1000 entries
- Real-time data reading capability for integration into systems
Applications:
- Telecommunication project maintenance
- CATV project maintenance
- Maintenance of digital data network projects
- Optical communications teaching and research
- Various other fiber-optic projects
Technical Specification:
| Parameter | Specification |
|---|---|
| Power Meter | DT-22A |
| Calibration Wavelength (nm) | 850, 1300, 1310, 1490, 1550, 1625 |
| Testing Range (dBm) | -70 to +6 |
| Display Resolution (dB) | 0.01 |
| Uncertainty (dB) | <+0.25 |
| Linearity (dB) | <+0.1 |
| Frequency Identification Range | <10 k |
| Source Range (dBm) | -70 to +6 |
| Working Wavelength (nm) | 1310/1550 (customizable) |
| Typical Output Power (dBm) | -5 (customizable) |
| Stability (dB, 30 min, 20°C) | ≤0.1 dB |
| Modulation Frequency (Hz) | CW, 270 Hz, 1 kHz, 2 kHz |
| Power Supply | 3 AA 1.5V battery / Mini USB 5V adapter |
| Auto-off Time (min) | 10 |
| Battery Continuous Operation Time | Source ON: ≥50 h, Source OFF: ≥200 h |
| Communication Interface | Mini USB |
| Working Temperature (°C) | -10 to +60 |
| Storage Temperature (°C) | -25 to +70 |
| Size (mm) | 175 × 90 × 44.5 |
| Weight (g, not including battery) | 265 |
