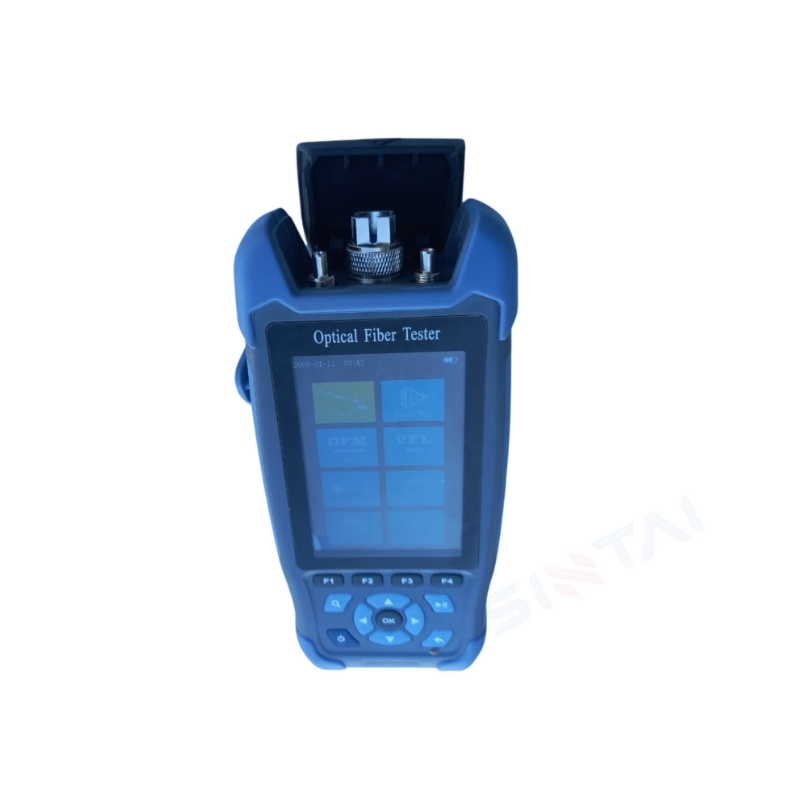

Mini Pro OTDR (DT-600)
1310 / 1550nm • 24/22dB • Up to 60KM • OPM • VFL • Light Source • RJ45 Test
Product Overview
The DT-600 Mini Pro OTDR is a compact multifunction fiber optic testing device designed for fiber installation, maintenance and troubleshooting.
It combines OTDR, Optical Power Meter (OPM), Optical Light Source, Visual Fault Locator (VFL) and RJ45 cable testing functions in one portable device.
Quick Specifications
Model: DT-600
OTDR Wavelength: 1310 / 1550nm ±20nm
Dynamic Range: 24dB / 22dB
Test Range: 500m – 60km
Display: 3.5-inch Color LCD
Battery: 3.7V / 4000mAh
Connector: FC/UPC (SC/ST Interchangeable)
Main Functions
OTDR Testing
1310 / 1550nm dual wavelength fiber testing
1310 / 1550nm dual wavelength fiber testing
Optical Power Meter
800 – 1700nm wavelength range
800 – 1700nm wavelength range
Optical Light Source
1310 / 1550nm ±20nm
1310 / 1550nm ±20nm
Visual Fault Locator
650nm ±20nm
650nm ±20nm
RJ45 Cable Test
Supports cable length testing up to 300m
Supports cable length testing up to 300m
OTDR Performance
DT-600 OTDR Specifications
Wavelength: 1310 / 1550nm ±20nm
Fiber Type: G.652
Dynamic Range: 24dB / 22dB
Event Blind Zone: 3m
Attenuation Blind Zone: 8m
Test Range: 500m – 60km
Pulse Width: 3ns – 10μs
Sampling Points: 16k – 128k
Sampling Resolution: 0.05m – 8m
Loss Accuracy: ±0.05dB/dB
Reflection Accuracy: ±3dB
File Format: Standard SOR
Optical Connector: FC/UPC (SC/ST Interchangeable)
Ranging Accuracy
±(1m + Sampling Interval + 0.005 × Distance)
±(1m + Sampling Interval + 0.005 × Distance)
Other Test Functions
OPM Wavelength Range: 800 – 1700nm
Light Source: 1310 / 1550nm ±20nm
VFL Wavelength: 650nm ±20nm
RJ45 Cable Length: Up to 300m
Display & Power
Display: 3.5-inch Color LCD
Battery: 3.7V 4000mAh Li-Battery
Power Adapter: 5V / 2A
Working Time: Up to 12 Hours
Standby Time: Up to 20 Hours
Data Storage
Internal Storage: ≥600 Records
External Storage: TF Card Supported
File Format: Standard SOR
External Storage: TF Card Supported
File Format: Standard SOR
Physical & Environmental
Dimensions: 173 × 82 × 37mm
Weight: ≤350g
Operating Temperature: -10°C to +50°C
Storage Temperature: -40°C to +70°C
Humidity: 0 – 95% (Non-condensing)
Applications
FTTH Installation & Maintenance
Optical Fiber Fault Testing
Fiber Length & Loss Measurement
ISP Network Maintenance
Fiber Link Troubleshooting
Optical Power Testing
RJ45 Cable Testing
Optical Fiber Fault Testing
Fiber Length & Loss Measurement
ISP Network Maintenance
Fiber Link Troubleshooting
Optical Power Testing
RJ45 Cable Testing
