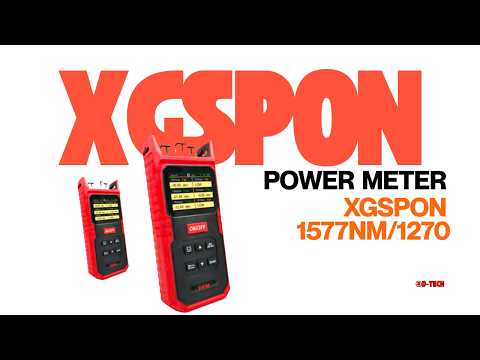

XGS-PON Power Meter (DT2100)
Professional XGS-PON Optical Power Meter • GPON • XG-PON • XGS-PON • Built-in VFL
The DT2100 XGS-PON Power Meter is a professional optical testing instrument designed for installation, maintenance, and troubleshooting of GPON, XG-PON, XGS-PON, and FTTH optical networks. It accurately measures multiple downstream and upstream wavelengths simultaneously, enabling technicians to verify optical power levels without interrupting network traffic.
Featuring an InGaAs optical detector, built-in 10mW/20mW Visual Fault Locator (VFL), rechargeable battery, large data storage, and high measurement accuracy, the DT2100 is ideal for telecom operators, ISPs, data centers, and fiber optic maintenance engineers.
Key Features
Optical Measurement Parameters
| Parameter | 1270nm | 1310nm | 1490nm | 1550nm | 1577nm | 1610nm |
|---|---|---|---|---|---|---|
| Spectral Bandwidth | 1260–1280nm | 1300–1320nm | 1480–1500nm | 1540–1560nm | 1570–1581nm | 1600–1620nm |
| Measurement Range | -40 ~ +10 dBm | -40 ~ +10 dBm | -40 ~ +10 dBm | -40 ~ +20 dBm | -40 ~ +10 dBm | -40 ~ +10 dBm |
General Optical Specifications
| Model Number | DT2100 |
| Probe Type | InGaAs |
| Optical Port | SC/APC (SC/UPC Optional) |
| Measurement Units | dB / dBm / mW / µW / nW |
| Display Resolution | 0.01 dB |
| Power Accuracy | ±0.5 dB |
| Linearity | ±0.1 dB / 10 dB |
| Channel Insertion Loss | <1.5 dB |
| Data Storage | 999 Groups |
Visual Fault Locator (VFL)
| Output Power | 10mW / 20mW |
| Connector | 2.5mm Universal Connector + FC / SC |
| Wavelength | 650nm ±10nm |
| Fiber Type | Single Mode / Multimode |
| Tone Detection | CW / 2kHz |
General Specifications
| Auto Shutdown | 5–90 Minutes (Adjustable) |
| Power Supply | 5V/2A Adapter + 2000mAh Rechargeable Battery |
| Working Time | >32 Hours Continuous |
| Standby Time | >60 Hours |
| Working Temperature | -10°C ~ +60°C |
| Storage Temperature | -25°C ~ +70°C |
| Dimensions | 76 × 177.5 × 40 mm |
| Weight | 0.28 kg |
Applications
Important Notes
- Working time and standby time are based on power-saving mode with low backlight brightness.
- Package includes a 5V / 2A power adapter.
- Product weight is measured without the battery installed.
