DEVISER OTDR AE1001

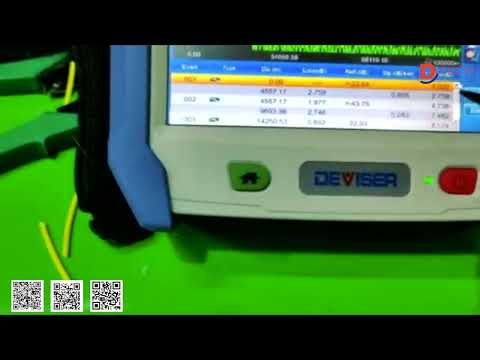

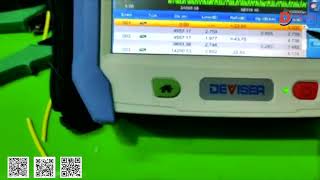

Overview of DEVISER OTDR AE1001:
The last thing a fiber maintenance technician needs is a double armful of bulky, feature-bloated equipment to bog down the job. The new AE1001 from Deviser Instruments is a sleek, zero-fuss OTDR weighing less than 1 kg that tests the common 1310 & 1550 nm wavelengths in 5s flat. Low power consumption and a solid 2500mAH battery allow the AE1001 to run automated, manual, or real-time tests continuously for over 4 hours and are supplemented with the always-handy OPM and VFL.
Key Benefits of DEVISER OTDR AE1001:
- Ultra-portable, lightweight OTDR for FTTx networks
- 4.3" LCD touchscreen is visible in high- or low-light conditions
- fast dual-wavelength test generates results in ≤5 seconds
- Excellent stability and repeatability
- power-packed ~2-lb meter runs continuously for over 4 hours
- Save >160k OTDR traces with 16 GB of data storage
Table of Optical Parameters of DEVISER OTDR AE1001:
|
Optical Parameters |
||
|
Test Wavelength |
1310 nm ± 20 nm |
1550 nm ± 20 nm |
|
Dynamic Range |
26 dB |
24 dB |
|
Event Deadzone |
≤ 3 m |
|
|
Attenuation Deadzone |
≤ 10 m |
|
|
Measurement Range |
150 m, 300 m, 500 m, 1 km, 2 km, 5 km, 10 km, 20 km, 40 km, and 80 km |
|
|
Pulse Width |
3 ns, 5 ns, 10 ns, 30 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs, 20 μs |
|
|
Sampling Resolution |
Auto/high-resolution modes |
|
|
Sampling Points |
Up to 12,800 |
|
|
Group Refractive Index |
1.000000 - 2.000000 |
|
|
Distance Uncertainty |
(0.75 + 0.005% x fiber length sample resolution) |
|
|
Linearity |
0.05 dB/dB |
|
|
Loss Threshold |
0.001 dB |
|
|
Loss Resolution |
0.001 dB |
|
|
Refresh Rate |
10 fields/s |
|
|
Reflectance Accuracy |
± 3 dB |
|
|
Measurement Range of FAT |
Ss - Smin, real-time |
|
|
Data Storage |
16 GB, up to 160,000 OTDR traces |
|
|
Other Test Methods |
||
|
Optical power Meter |
Calibrated |
1310. 1550nm |
|
Operating |
850, 980, 1300, 1310, 1490, 1550, 1610, 1625, 1650nm |
|
|
Power Range |
Select from [-70-+10 dBm] or [-50-+26 dBm] |
|
|
Power Accuracy |
±0.23 dB |
|
|
Visual Fault Locator (VFL) |
Wavelength |
650±10nm |
|
Power |
1mW |
|
|
Conpliance |
Laser Safety Class II |
|
|
Optical Part Type |
PC (default); APC (optional) |
|
|
Optical Adapter Type |
FC (default): SC, ST, LC, SC/APC (optional) |
|
|
General Specification |
||
|
Display |
4.3-dot matrix TFT LCD touchscreen |
|
|
Interface |
1x USB 2.0: 1x RJ45 LAN (10M/100M/1000M, optional) |
|
|
Power |
Supply |
100-240V, 1.5A, 50-60Hz (AC): max 12V/2Ah (DC): total max power: 24 W |
|
Consumption |
<3 W |
|
|
Operating Time |
-6 hours on full charge (4 hours of continuous testing) |
|
|
Operating Temperature |
-10°C+50°C |
|
|
Strong Temperature |
-40°C +70°C |
|
|
Relative humidity |
0-95%, non-condensing |
|
|
Dimensions(L*W*H) |
7.1 x 5.7" x 2.2" (180mm x 145mm x 55mm) |
|
|
Weight |
<2.2 lbs (< 1 kg) |
|
