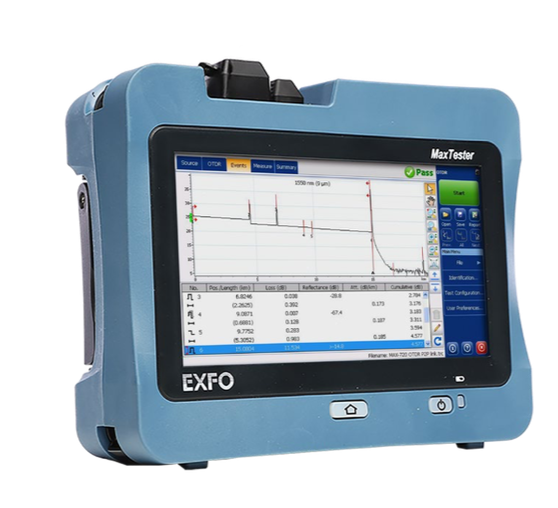

EXFO OTDR

TECHNICAL SPECIFICATIONS

Wavelengths (nm) a

1310 ± 20/1550 ± 20

Dynamic range at 20 μs (dB) b

42/42

Event dead zone (m) c

0.5

Attenuation dead zone (m) d

2.5

Distance range (km)

0.1 to 400

Pulse width (ns)

3 to 20 000

Linearity (dB/dB) a

±0.03

Loss threshold (dB)

0.01

Loss resolution (dB)

0.001

Sampling resolution (m)

0.04 to 10

Sampling points

Up to 256 000

Distance uncertainty (m) e

±(0.75 + 0.0025 % x distance + sampling resolution)

Measurement time

User-defined (maximum: 60 minutes)

Typical real-time refresh (Hz)

4

Stable source output power (dBm) f

1.5

Reflectance (dB) a

±2

Stable source output power (dBm) g

–2.5

Reflectance (dB) a

±2
