PON Power Meter
Product Description

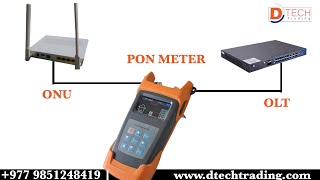

PON Power Meter (PON test instrument) is specially designed for PON network construction and maintenance. It can be connected between OLT and ONT. The voice, data, and video signals (1310 / 1490 / 1550 nm) can be measured online synchronously, and the optical power values at 1310 / 1490 / 1550 nm can be displayed on the meter. It is a useful site test tool for engineers working on PON network installation and maintenance.
Main Features
| 1 | Handheld design, easy to operate |
| 2 | Simultaneous testing of 3 PON wavelengths: 1310 nm, 1490 nm, 1550 nm |
| 3 | Supports burst mode signal testing at 1310 nm |
| 4 | True color screen |
| 5 | Friendly user interface with message management and operation functions |
| 6 | Provides 10 groups of threshold values for pass/fail analysis |
| 7 | Relative value selection and edit function |
| 8 | Threshold setting, data upload, and wavelength calibration through management software |
| 9 | Auto shut-off according to set value |
| 10 | Auto backlight off according to set value |
| 11 | 6600mAh lithium battery |
| 12 | Power-saving design with low voltage self-check and power off |
| 13 | Real-time clock display |
1310 nm Upstream Measurement
| Pass Zone (nm) | 1260 nm ~ 1360 nm |
| Measurement Range (dBm) | -35 dBm ~ +10 dBm |
| Output Power (max) | 15 dBm |
| Isolation @1490/1550 (dB) | > 40 dB |
| Burst Mode Measurement Error | < ±0.5 dB |
1490 nm Downstream Measurement
| Pass Zone (nm) | 1470 nm ~ 1505 nm |
| Measurement Range (dBm) | -35 dBm ~ +10 dBm |
| Output Power (max) | 15 dBm |
| Isolation @1310/1550 (dB) | > 40 dB |
1550 nm Downstream Measurement
| Pass Zone (nm) | 1535 nm ~ 1570 nm |
| Measurement Range (dBm) | -35 dBm ~ +10 dBm |
| Output Power (max) | 15 dBm |
| Isolation @1310/1490 (dB) | > 40 dB |
Measurement Accuracy
| Connatural Uncertainty (dB) | ±0.5 dB |
| Linearity (dB) | ±0.1 dB |
| Passing Through Insertion Loss (dB) | < 1.5 dB |
General Information
| Detector Type | InGaAs |
| Optical Connector | FC / SC / ST Interchangeable, 2.5 Universal Adapter |
| Fiber Type | SM 9/125 μm |
| Measurement Unit | dB / dBm / xW |
| Resolution (dB) | 0.01 dB |
| Operation Voltage (V) | DC 3.3V ~ 5.5V |
| Power Supply | 3 × 1.5V Battery |
| Continuous Operation Time | PON: 90 h / OPM: 100 h / VFL: 50 h |
| Operation Temperature (°C) | -10°C ~ 60°C |
| Storage Temperature (°C) | -25°C ~ 70°C |
| Dimension | 23.5 × 16 × 8 cm |
| Weight | 0.65 kg |
PON Power Meter
Ask a question
Questions & answers
0 question(s)No questions yet. Be the first to ask!
0.0
5★
0
4★
0
3★
0
2★
0
1★
0
Write a review
Sign in to reviewCustomer reviews
No reviews yet. Be the first to review this product.

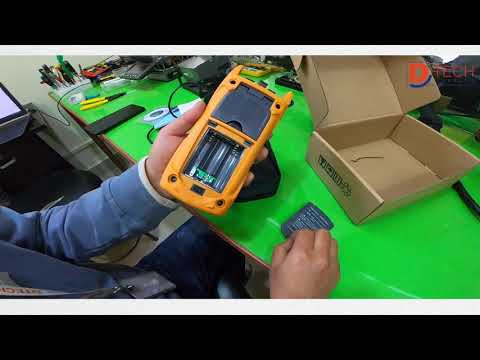

Optical PON Meter for the FTTH | D-TECH TRADING

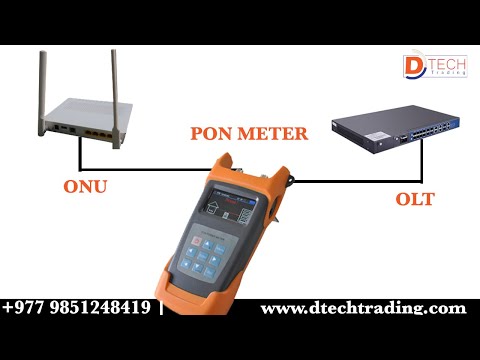

OLT & ONU Signal testing by Optical PON Meter In Nepal
