PON Power Meter
.png)
.png)
PON Power Meter
Product Description:

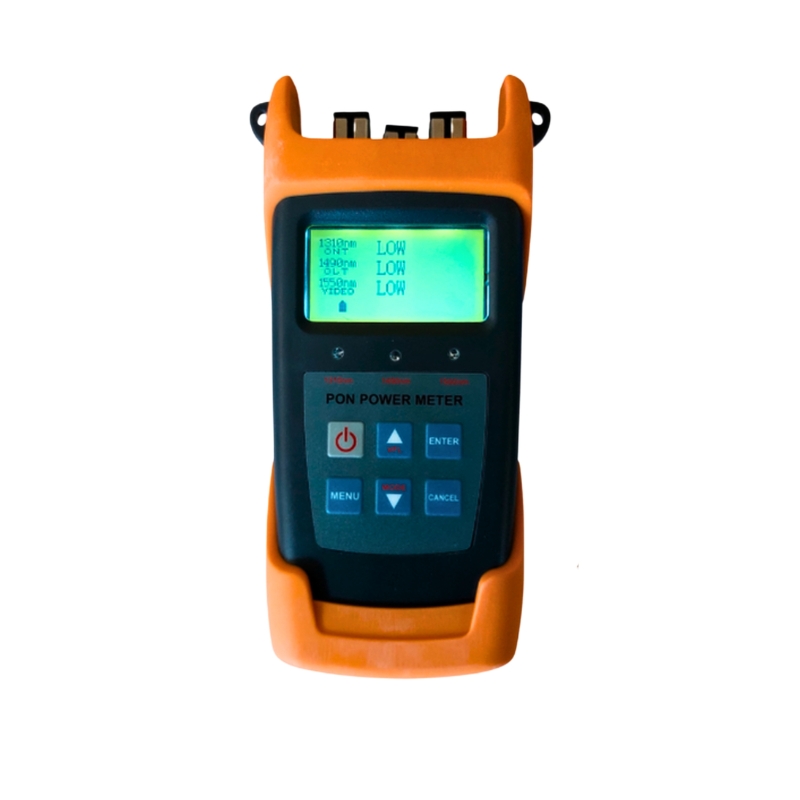

PON Power Meter (pon test instrument) is specially designed for PON network construction and maintenance which can be connected between OLT and ONT. The voice, data, video signal (1310/1490/1550) online can be measured synchronously and optical power value (1310/1490/1550) can be displayed with this meter. It's a useful site test tool for the engineers of PON network and maintenance operators.
Main Features :
- Handheld, easy to operate
- Can test 3 wavelengths' power of PON system synchronously: 1310nm, 1490nm, 1550nm,
- Can test the burst mode signal of 1310nm
- True color screen
- Friendly operation interface, human message management and operation function
- Supply 10 groups of threshold values for operator's choice, analyze and display pass and fail status
- Relative value choice and edit function
- Can set the threshold value, upload data, and calibrate wavelength through management software
- Auto shut off (according to set value)
- Auto backlight off(according to set value)
- 6600mAh Lithium battery
- Power saving design (Low voltage self check and power off)
- Real-time clock display
1310 upstream measurement |
|||||
|
Pass Zone(nm) |
1260nm～1360nm |
||||
|
MeasurementRange(dBm) |
-35dBm～+10dBm |
||||
|
Output power(max) |
15dBm |
||||
|
Isolation@1490/1550(dB) |
>40dB |
||||
|
Burst mode measurement error |
<±0.5dB |
||||
1490 downstream measurement |
|||||
|
Pass Zone(nm) |
1470nm～1505nm |
||||
|
MeasurementRange(dBm) |
-35dBm～+10dBm |
||||
|
Output power(max) |
15dBm |
||||
|
Isolation@1310/1550(dB) |
>40dB |
||||
1550 downstream measurement |
|||||
|
Pass Zone(nm) |
1535nm～1570nm |
||||
|
MeasurementRange(dBm) |
-35dBm～+10dBm |
||||
|
Output power(max) |
15dBm |
||||
|
Isolation@（1310/1490nm） |
>40dB |
||||
Measurement Accuracy |
|||||
|
Connatural uncertainty(dB) |
±0.5dB |
||||
|
Linearity(dB) |
±0.1dB |
||||
|
Passing through insertion Loss(dB) |
<1.5dB |
||||
General Information |
|||||
|
Detector Type |
InGaAs |
||||
|

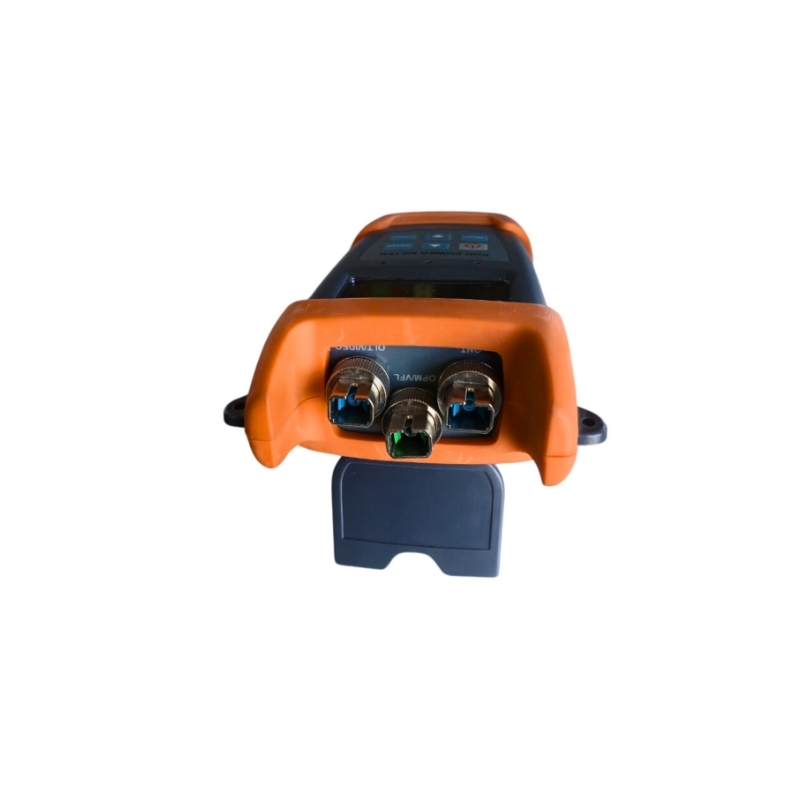

Optical Connector |
FC/SC/ST Interchangeable/2.5 universal adapter |
||||
|
Fiber Type |
SM 9/125um |
||||
|
Measurement Unit |
dB/dBm/xW |
||||
|
Resolution (dB) |
0.01dB |
||||
|
Operation Voltage(V) |
DC 3.3V～5.5V |
||||
|
Power Supply |
3pc1.5V battery |
||||
|
Continuously Operation time (h) |
PON：90h |
PON：90h OPM：100h VFL：50h |
PON：90h VFL：50h |
PON：90h OPM：100h |
|
|
Operation Temperature(℃) |
-10℃～60℃ |
||||
|
Storage temperature(℃) |
-25℃～70℃ |
||||
|
Dimension |
23.5*16*8cm |
||||
|
Weight |
0.65kg |
||||
