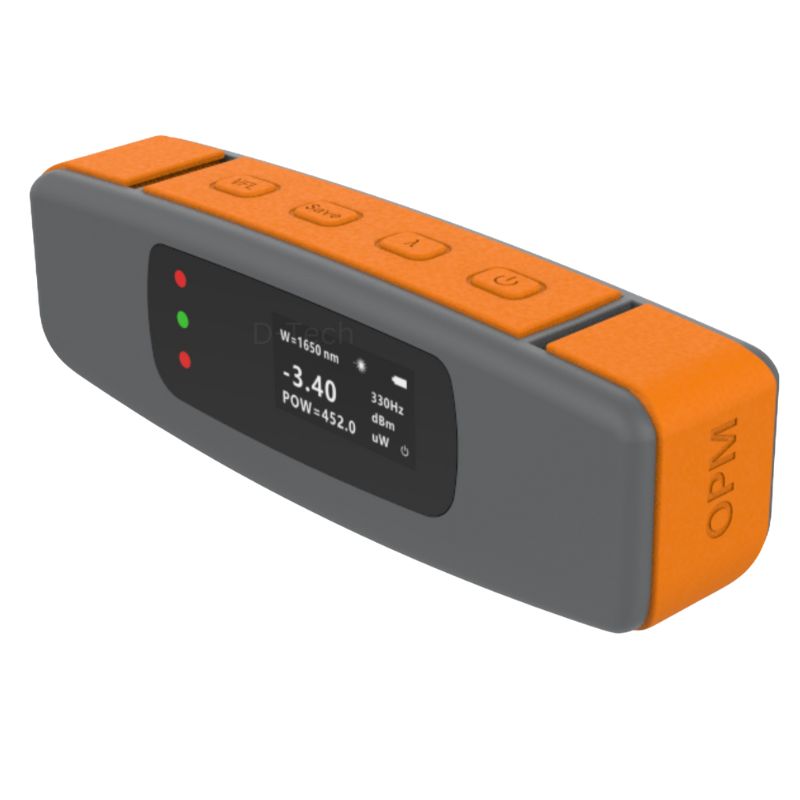

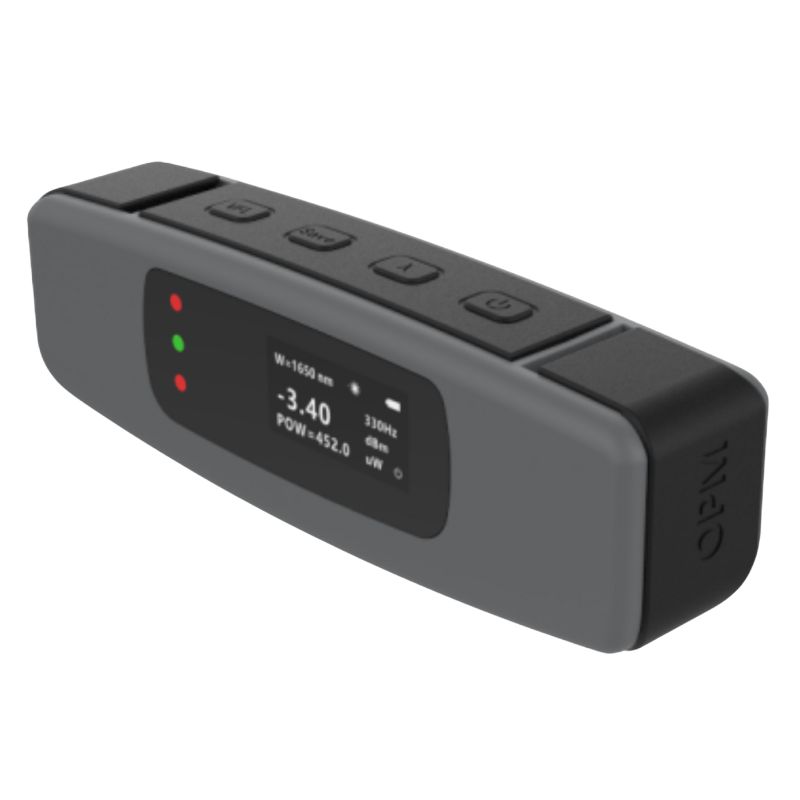

Optical Power Meter – DT200 / DT201

Professional Optical Power Meter with Built-in Visual Fault Locator (VFL), OLED Display & Type-C Charging

The DT200 and DT201 Optical Power Meters are compact, high-precision fiber optic testing instruments designed for FTTH, ISP, CATV, Telecom, Data Center, and Optical Fiber Maintenance. They provide accurate optical power measurement, built-in Visual Fault Locator (VFL), wavelength recognition, signal frequency detection, data storage, and long battery life for field engineers.

Featuring a bright OLED display, Type-C charging, 1000-record memory, and universal optical connector compatibility, the DT200/DT201 are ideal tools for fiber installation, troubleshooting, network maintenance, and optical cable acceptance testing.

Measurement Range

Up to +26 dBm

VFL

Up to 50mW

Memory

1000 Records

Charging

USB Type-C

Key Features

✔ High Accuracy Optical Power Measurement

✔ Built-in Visual Fault Locator (VFL)

✔ Universal Optical Connector

✔ OLED White Backlight Display

✔ Type-C Fast Charging Interface

✔ Supports CW, 270Hz, 330Hz, 1kHz & 2kHz Detection

✔ 1000 Internal Memory Records

✔ Compact Pocket Size with Long Battery Life

Model Comparison

Parameter	DT200	DT201
Measurement Range	+10 ~ -70 dBm	+26 ~ -50 dBm
Operating Wavelength	800 ~ 1700 nm
Connector	Universal
Detector	InGaAs
Measurement Accuracy	±5%
Calibrated Wavelengths	850 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650 nm
Resolution	0.1% (mW/µW), 0.01 dBm/dB
Recognizable Frequency	CW, 270Hz, 330Hz, 1kHz, 2kHz
Memory	1000 Records
User Correction	Key Operation & PC Software

Built-in Visual Fault Locator (VFL)

Parameter	Specification
Laser Wavelength	650 ±30 nm
Output Power Options	2 / 5 / 10 / 20 / 30 / 50 mW (Default: 10mW)
Operating Mode	CW / 2Hz
Connector	Universal

Machine Specifications

Parameter	Specification

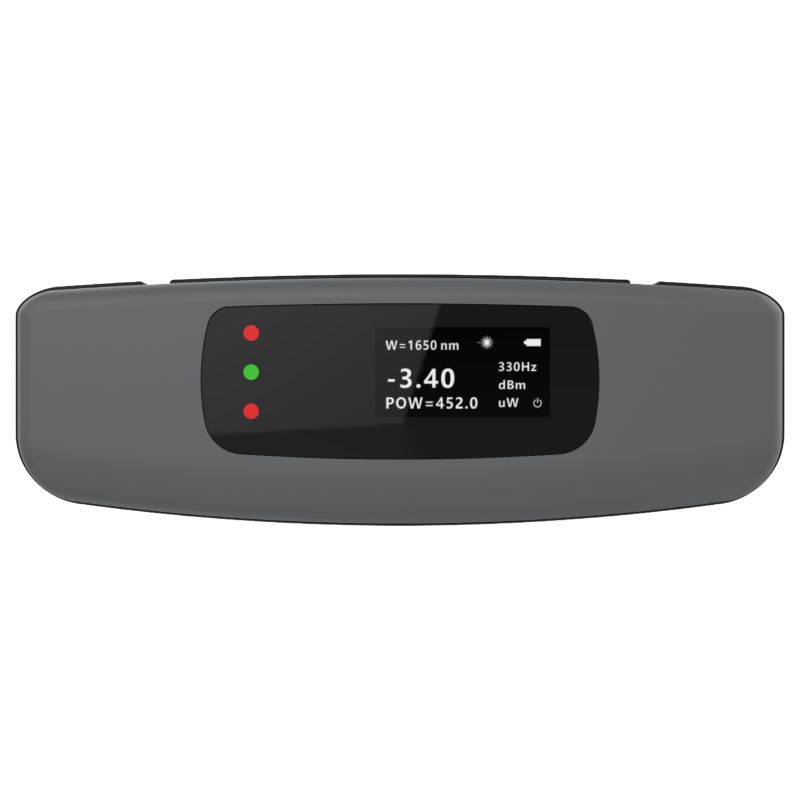

Display	128 × 64 OLED White Display
Battery	3.7V / 500mAh Lithium Battery
Charging Port	USB Type-C
Operating Time	More than 16 Hours (Power Meter Mode)
Auto Power Off	10 Minutes
Operating Temperature	-10°C to +50°C
Storage Temperature	-40°C to +60°C
Humidity	0–95% RH (Non-condensing)
Dimensions	98 × 33 × 23 mm
Weight	50 g

Applications

FTTH Installation & Maintenance

ISP & Telecom Networks

Optical Fiber Troubleshooting

CATV Networks

Data Center Fiber Testing

Fiber Link Acceptance Testing

Note: The DT200 is ideal for measuring lower optical power levels down to -70 dBm, making it suitable for FTTH and passive optical network testing. The DT201 supports measurements up to +26 dBm, making it better suited for higher-power optical transmission systems and backbone network applications.
