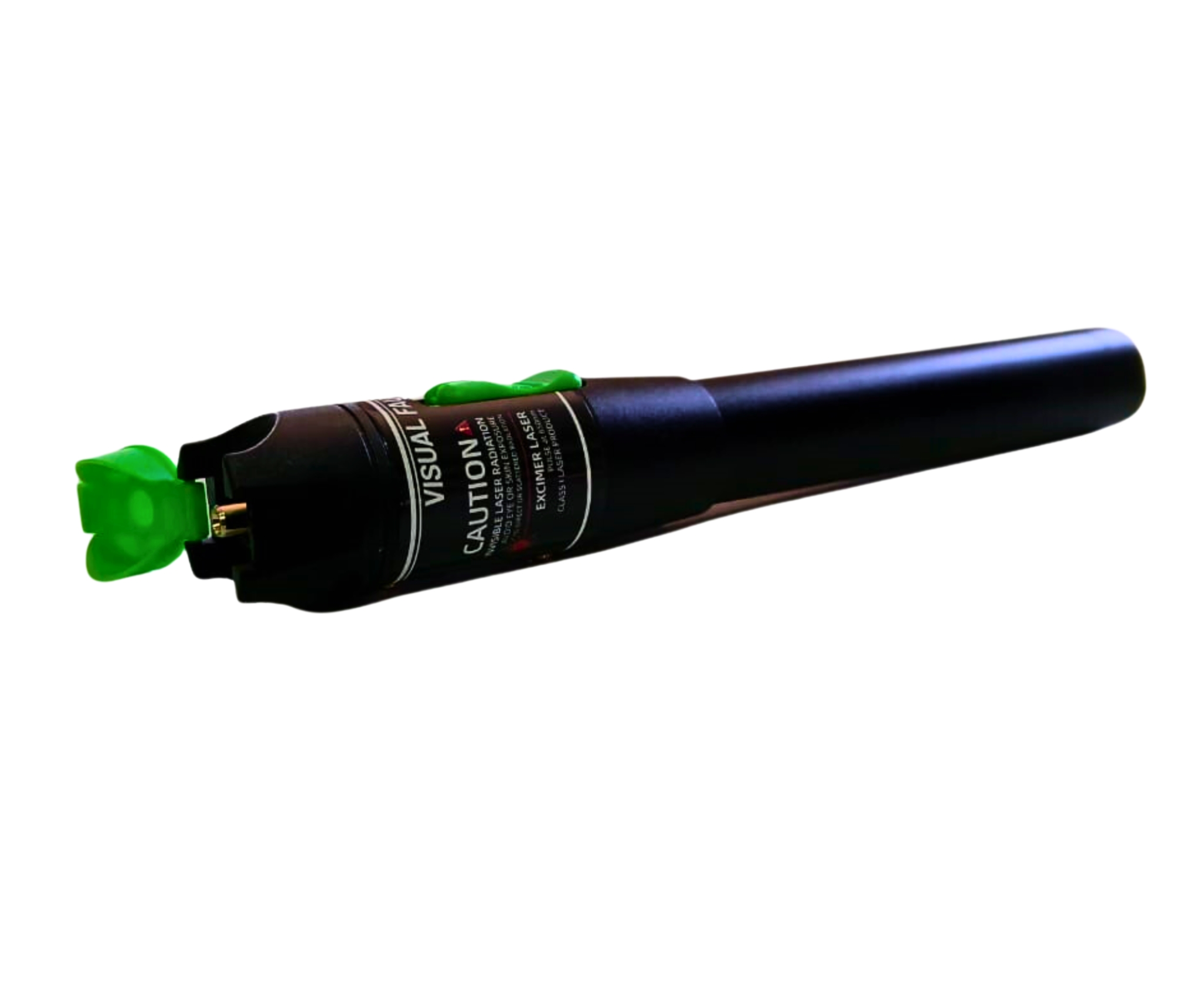

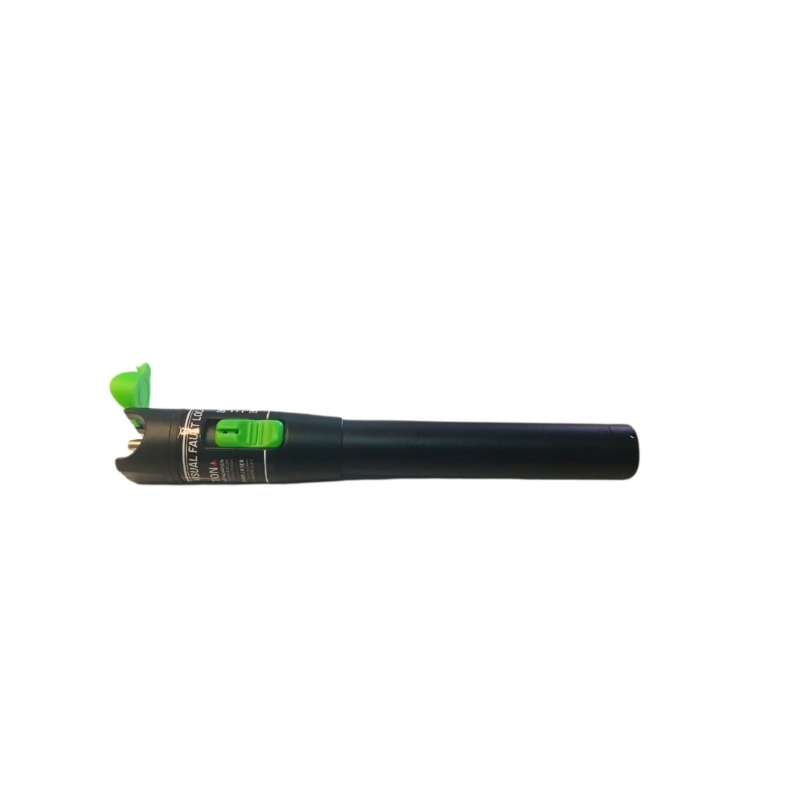

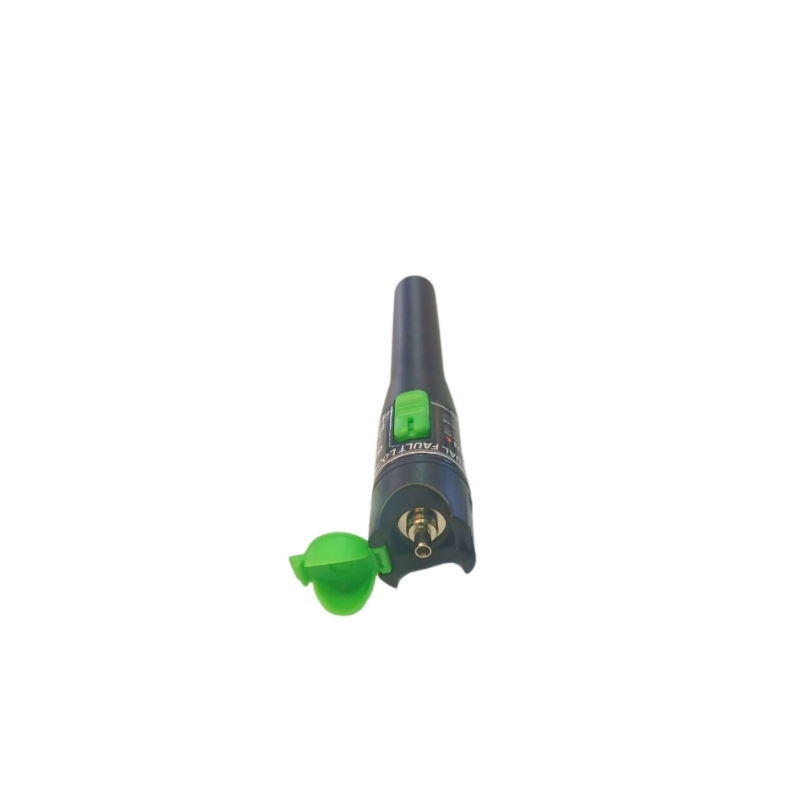

Mini VFL

Brand: D-TECH

SKU: #467

0.0 0 ratings

Available options

10 MW

30 MW

20MW (Chargeable)

20 MW

50 MW

Technical Details

Warranty: 204-TRIAL-6 months 30

Category: Fiber Optical Testing Equipments

Request a Quote

Ships from D-TECH

Deliver to

Select a city to check delivery

Returns: 7-day replacement

Warranty: Seller warranty (if applicable)

Need help? Customer Service

Product Description :

The Visual Fault Locator (VFL) is an essential tool for any engineer or technician. This allows quick and easy detection of faults in fibre installations, such as breaks or faulty connectors, by pinpointing the location of the signal loss. Therefore, problems can be diagnosed and fixed efficiently. The VFL can also be used for end to end continuity tests and perform fibre identification.

Features & Benefits:

Quick & easy location of damage in fibers
Continuous & flashing illumination models
Designed for demanding field use
Long-lasting battery life
Protective rubber end cap
Soft-sided carry case with belt loop

Applications:

Fiber optic inspection and testing

Technical Specifications:

Parameter	Value
Wavelength	650nm
Emitter Type	FP-LD source
Output Power	30mW max
Distance Range	1km-30km (single-mode); >5km (multi-mode) Depends on mW
Operation Mode	Pulsed & CW
Power Supply	2x AA batteries
Material Shell	Allum-alloy
Connector Type	Universal 2.5mm
Dimensions (mm)	175x26(Ø)
Weight (g)	173
