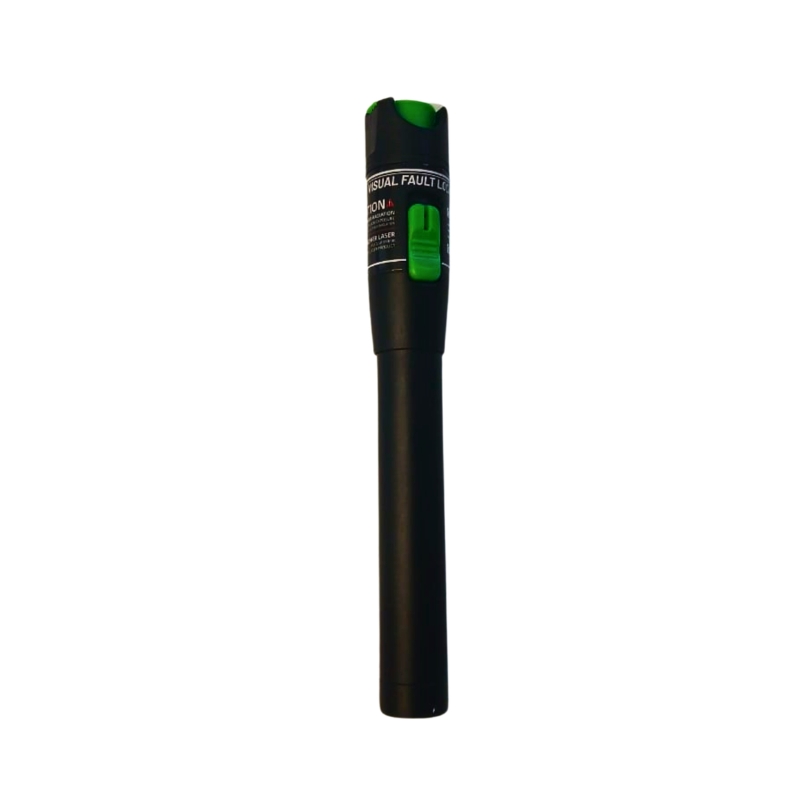

Mini VFL 20mw

Product Description:

The Visual Fault Locator (VFL) is an essential tool for any engineer or technician. This allows quick and easy detection of faults in fibre installations, such as breaks or faulty connectors, by pinpointing the location of the signal loss. Therefore, problems can be diagnosed and fixed efficiently. The VFL can also be used for end-to-end continuity tests and fiber identification.

Features and Benefits:

  • Quick & easy location of damage in fibers
  • Continuous & flashing illumination models
  • Designed for demanding field use
  • Long-lasting battery life
  • Protective rubber end cap
  • Soft-sided carry case with belt loop

Technical Specification:

Parameter Value
Wavelength 650nm
Emitter Type FP-LD source
Output Power 20mW max
Distance Range >15-20km (single-mode); >5km (multi-mode)
Operation Mode Pulsed & CW
Power Supply 2 AA batteries
Material Shell Allum-alloy
Connector Type Universal 2.5mm
Dimensions (mm) 175×26(Ø)
Weight (g) 173
