Product Description:

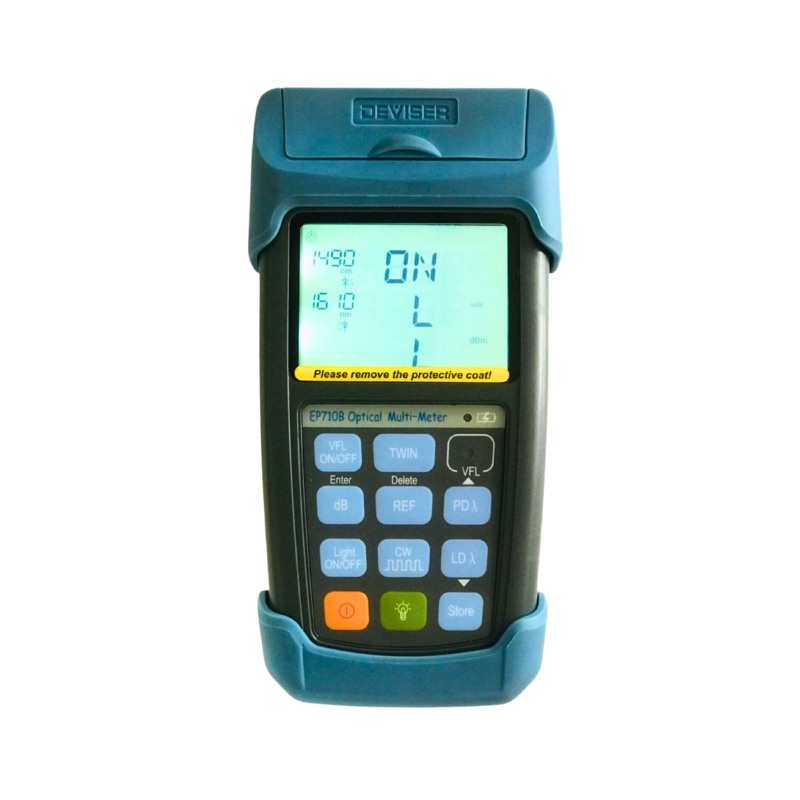

The Deviser
EP710B Optical Power Meter is a versatile, all-in-one handheld device
designed for professionals working with fiber optic networks. Combining an
optical power meter, light source, and visual fault locator (VFL), it's ideal
for tasks such as installation, maintenance, and troubleshooting in CATV, FTTx,
and PON systems.
Key Features:
·
Measurement
Range: -50 to +26 dBm
·
Accuracy: ±0.17 dB (±3%)
·
Resolution: 0.01 dBm; readings available in dBm, mW, µW, nW
·
Calibrated
Wavelengths: 850, 980, 1300,
1310, 1490, 1550, 1610, 1625, 1650 nm
·
Auto
Wavelength Detection: 850, 1310,
1490, 1550, 1610 nm
·
Tone
Detection: 270 Hz, 1 kHz, 2 kHz
·
Connectors: FC/SC (default); ST/LC (optional)
·
Visual
Fault Locator (VFL): 1 mW output
for quick fault identification
·
Power
Supply: 2× AA batteries or AC
100–240V input with DC 5V adapter
·
Battery
Life: >100 hours (power
meter), >40 hours (light source), >10 hours (VFL)
·
Operating
Temperature: -10°C to +60°C
·
Dimensions: 185 mm × 85 mm × 45 mm
·
Weight: <300 g (without batteries)
This compact and
durable device ensures accurate measurements and efficient fault detection,
making it an essential tool for fiber optic technicians.
