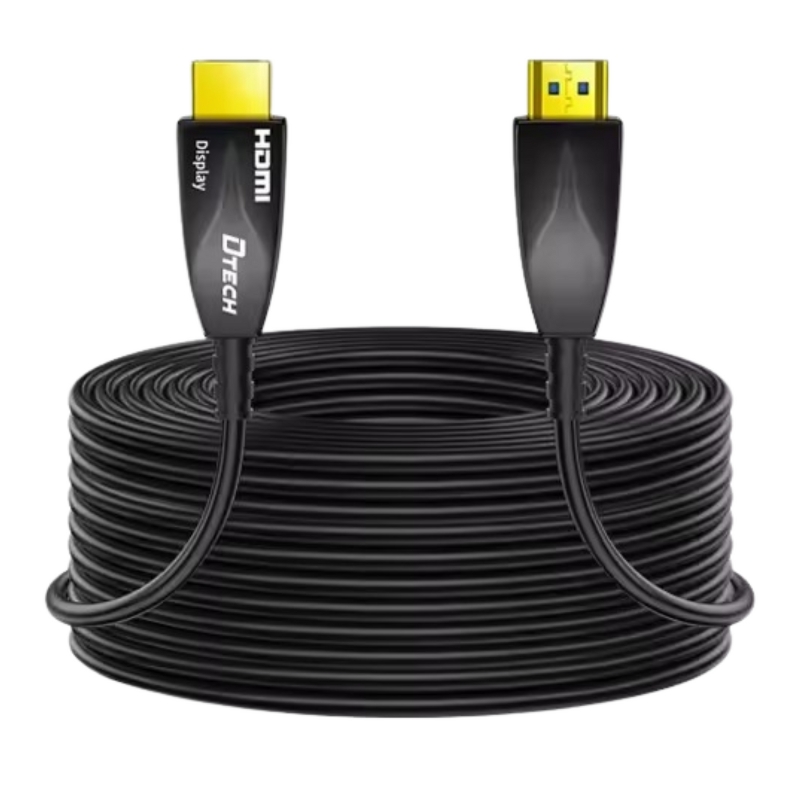

HDMI Cable with Fiber
Optic 2.0 Version
- This product is easy to use, securely
connected, and suitable for any location were high- definition video displays,
such as home video distribution, conference room presentation system,
room projection systems, digital signage.
- Fiber optic provides
the speed and bandwidth needed for the best picture quality for high-definition
videos supporting the long distance required in commercial video solutions.
- Fiber Optic HDMI is
better for gaming.
Product Description:
Features
• Support HDR, Audio
Return Channel (ARC), CEC, EDID, 3D, HDCP2.2.7.Resolution: 4K(3840×2160)@60Hz
(Downward compatibility)
• Ultra-slim lightweight design (4.8mm cable diameter) makes your cabling work
easier for this thin flexible wire can be routed around the tight space as you
want
• The fiber optic HDMI Cable is one direction transmission, connects Blu-ray
players, Fire TV, Apple TV, PS4, PS3, Xbox One, Xbox 360, computers, and other
HDMI-enabled devices to display devices such as TVs, displays, A/V receivers,
and more.
• Support resolutions up to 4K Ultra HD 2160p at 60Hz 4:4:4 format
• Active optical cable (AOC) uses fiber optic technology to send HDMI signal
• Supports 18Gbps bandwidth and all formats
• Plug and Play, no extra power needed and no signal loss
• Gold plated connectors to prevent rust over time
• Connectors marked source and display for directional use
• Photoelectric composite cable
• Plug and Play, no extra power needed and no signal loss.
• Thin, light, and flexible compared to traditional HDMI cables
• Source and Display are easily identifiable
• Available in multiple standard lengths from 10 to 100 meters
• The customized length is available.
Specification:
|
Parameter
|
Description
|
|
Product Series
|
4K Fiber Optic
HDMI2.0 AOC Cable
|
|
Part Number
|
AOC-HDMI20-A-A-xM
|
|
Connector Type
|
HDMI-A
to HDMI-A
|
|
Connector Plating
|
Gold plated,
long-life design
|
|
Jacket Material
|
PVC
|
|
Fiber Type
|
OM3
|
|
Maximum Resolution
|
4K@60Hz
|
|
Power Requirements
|
No external power
needed
|
|
Power Consumption
|
250mW
|
|
Bandwidth
|
18 Gbps
|
|
Supported HDMI
Features
|
4K, FHD, 3D, Deep
Color, HDMI-CEC, HDCP™, HD Audio
|
|
Cable Thickness
|
4.8mm
|
|
Minimum Bend Radius
|
20mm
|
|
Operating
Temperature/Humidity
|
32 to 158°F
(0 to 70°C), 10% to 85% RH, Non-Condensing
|
|
Storage
Temperature/Humidity
|
-40 to 185°F
(-40 to 85°C), 5% to 90% RH, Non-Condensing
|
