10G DWDM SFP+ 80km LC – CHxx
CH 48
Brand:
D-TECH
Variant Specifications
Warranty:
Weight:
Country of Origin:
More Details:
Import Lead Time:
Package:
CH 45
4% OFF
Rs 21,017.69
List: Rs 21,858.40
SFP+ 10G DWDM 80KM DDM - CH 48
The SFP+ 10G DWDM 80KM DDM optical transceiver is designed for high-speed 10G transmission over single-mode fiber with support for DWDM applications. It features hot-pluggable design, Duplex LC connector, digital diagnostics, and stable long-distance performance up to 80km.
Key Features
| No. | Feature |
|---|---|
| 1 | Supports 9.95 to 11.3Gb/s bit rates |
| 2 | Hot-Pluggable |
| 3 | Duplex LC connector |
| 4 | 100GHz ITU Grid, C Band |
| 5 | DWDM EML transmitter, APD photo-detector |
| 6 | Supports SMF links up to 80km |
| 7 | 2-wire interface compliant with SFF-8472 digital diagnostics monitoring |
| 8 | Power Supply: +3.3V |
| 9 | Power consumption < 1.5W |
| 10 | Temperature Range: 0°C to 70°C |
| 11 | RoHS compliant |
Applications
| No. | Application |
|---|---|
| 1 | 10GBASE-ZR/ZW Ethernet |
| 2 | Sonet OC-192 / SDH |
| 3 | 10G Fibre Channel |
| 4 | DWDM Networks |
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Typical | Max. | Unit |
|---|---|---|---|---|---|
| Storage Temperature | TS | -40 | - | +85 | °C |
| Case Operating Temperature | TA | 0 | - | 70 | °C |
| Maximum Supply Voltage | Vcc | -0.5 | - | 4 | V |
| Relative Humidity | RH | 0 | - | 85 | % |
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Supply Voltage | 3.135 to 3.465 V |
| Supply Current | 450 mA max |
| Power Consumption | 1.5 W max |
| Input Differential Impedance | 100 Ω |
| Differential Input Voltage Swing | 180 to 700 mV |
| Rx Output Differential Voltage | 300 to 850 mV |
Optical Parameters
| Parameter | Specification |
|---|---|
| Center Wavelength | 100GHz ITU Grid, C Band |
| Average Optical Power | Up to +5 dBm |
| Laser Off Power | -30 dBm |
| Extinction Ratio | 3.0 dB min |
| Relative Intensity Noise | -128 dB/Hz |
| Optical Return Loss Tolerance | 20 dB |
| Receiver Wavelength Range | 1480 to 1565 nm |
| LOS Assert | -40 dBm |
| LOS De-Assert | -24 dBm |
| LOS Hysteresis | 0.5 dB |
| Receiver Overload | -7 dBm |
Timing Characteristics
| Parameter | Value |
|---|---|
| Receiver LOS Deassert Time | 100 us |
| Rate-Select Change Time | 100 us |
| Serial ID Clock Time | 10 us / 100 kHz |
Optical Transceiver, SFP,10G,DWDM,80KM,LC
Ask a question
Questions & answers
0 question(s)No questions yet. Be the first to ask!
0.0
5★
0
4★
0
3★
0
2★
0
1★
0
Write a review
Sign in to reviewCustomer reviews
No reviews yet. Be the first to review this product.
Product Videos
Watch demos, overviews and installation guides related to this product.
Related Products
OFC One Click Cleaner
Rs 2,200
Rs 2,000

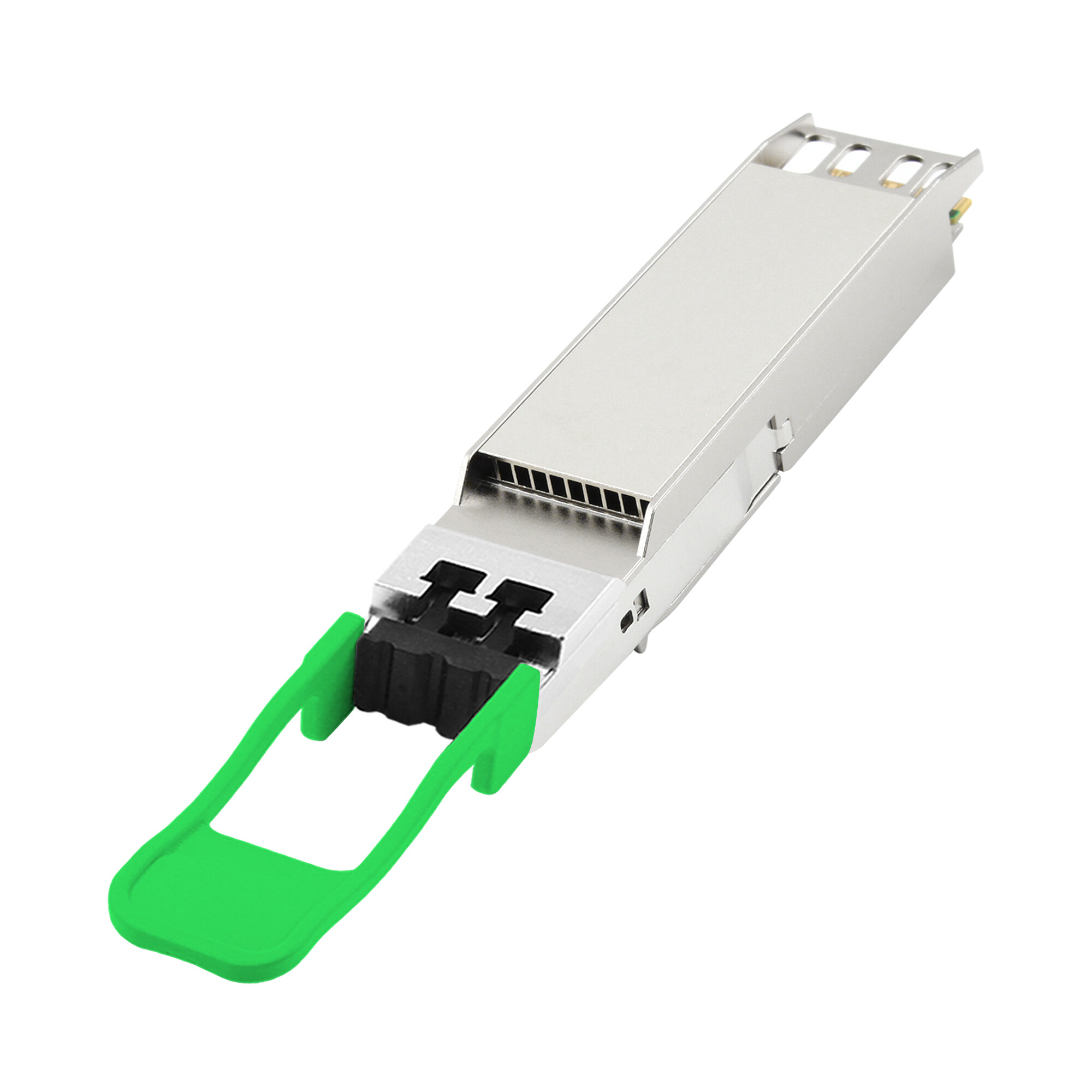

800G OSFP224 SMF OS2 LC Duplex 1310nm
